Vacuum Hose Diagram(S)

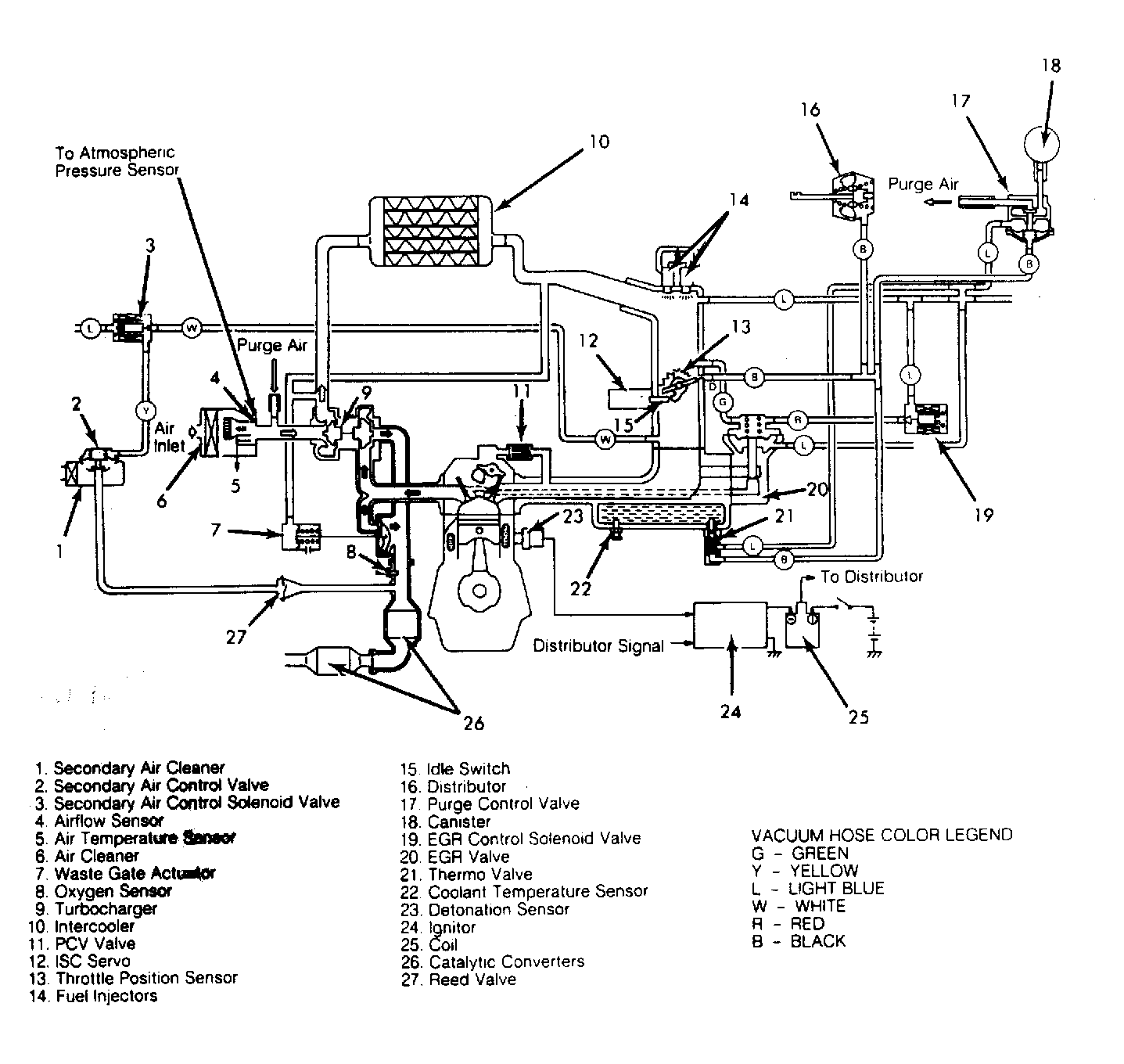

Fig 1: ECI System Vacuum Hose Diagram for Mirage

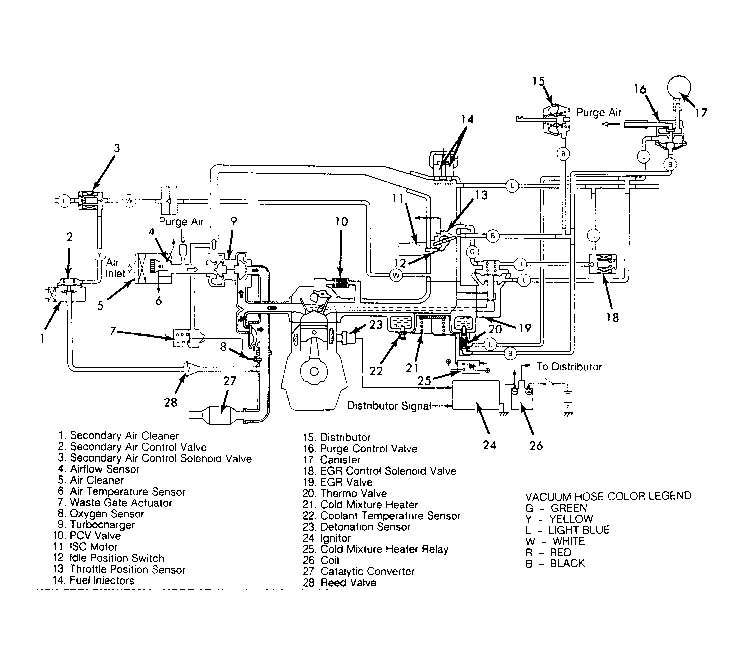

Fig 2: ECI System Vacuum Hose Diagram for Starion (W/O Intercooler)

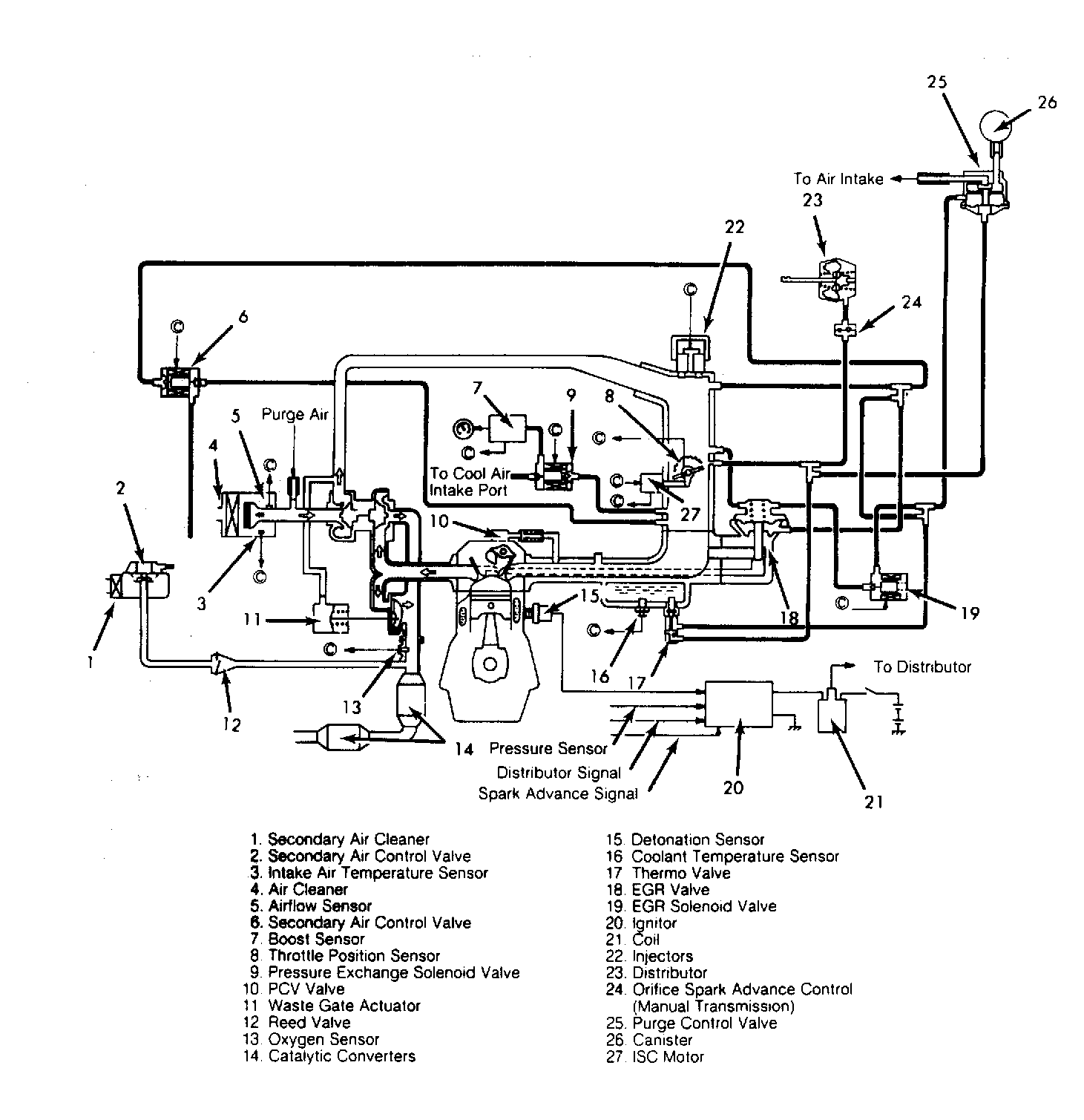

Fig 3: ECI System Vacuum Hose Diagram for Starion (With Intercooler)

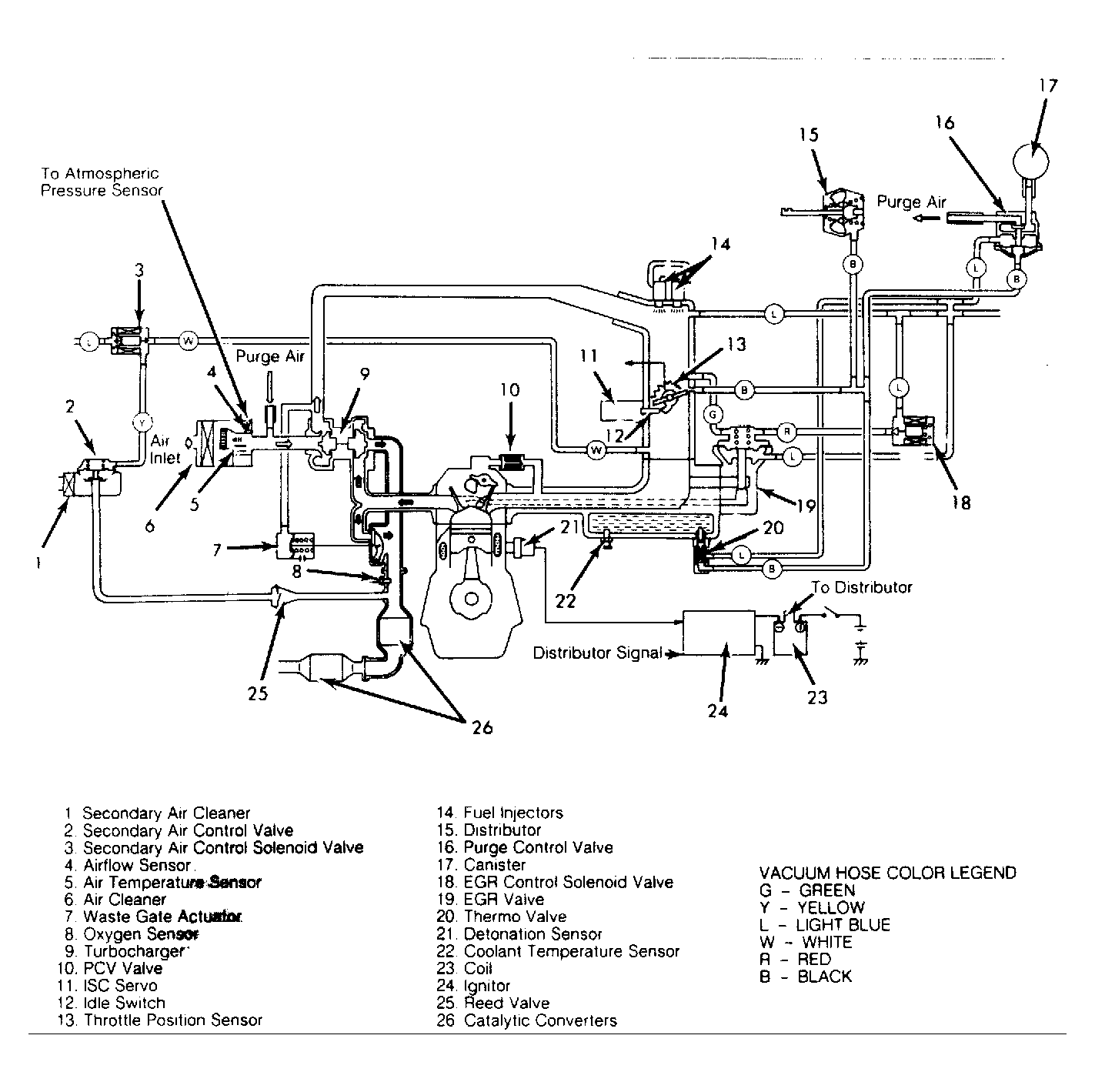

Fig 4: ECI System Vacuum Hose Diagram for Cordia & Tredia
