Removal And Installation: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When WCM has been replaced, all key ID codes should be registered, referring to the ID code registration necessity judgment table ID CODES REGISTRATION JUDGMENT TABLE  .

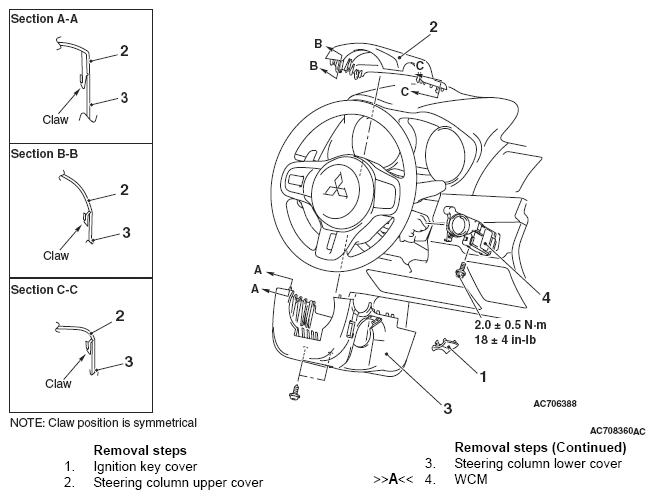

Fig 1: WCM Replacement Components With Torque Specifications
G05395471Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
