Alignment Procedures

NOTE: Alignment procedures not available.
Fig 1: Front Caster Adjustment To adjust caster, lengthen or shorten strut rod as shown.
G103975

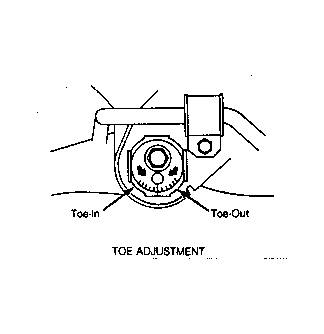

Fig 2: Rear Toe Adjustment To adjust, turn eccentric to desired setting.
G103994
