GALANT & Sigma

With ignition on and engine coolant temperature greater than 194°F (90°C) on Sigma or 185°F (85°C) on all others, thermosensor completes the ground. This closes the contacts on radiator fan motor relay and provides current to the radiator fan. See Fig 1 and Fig 2 .

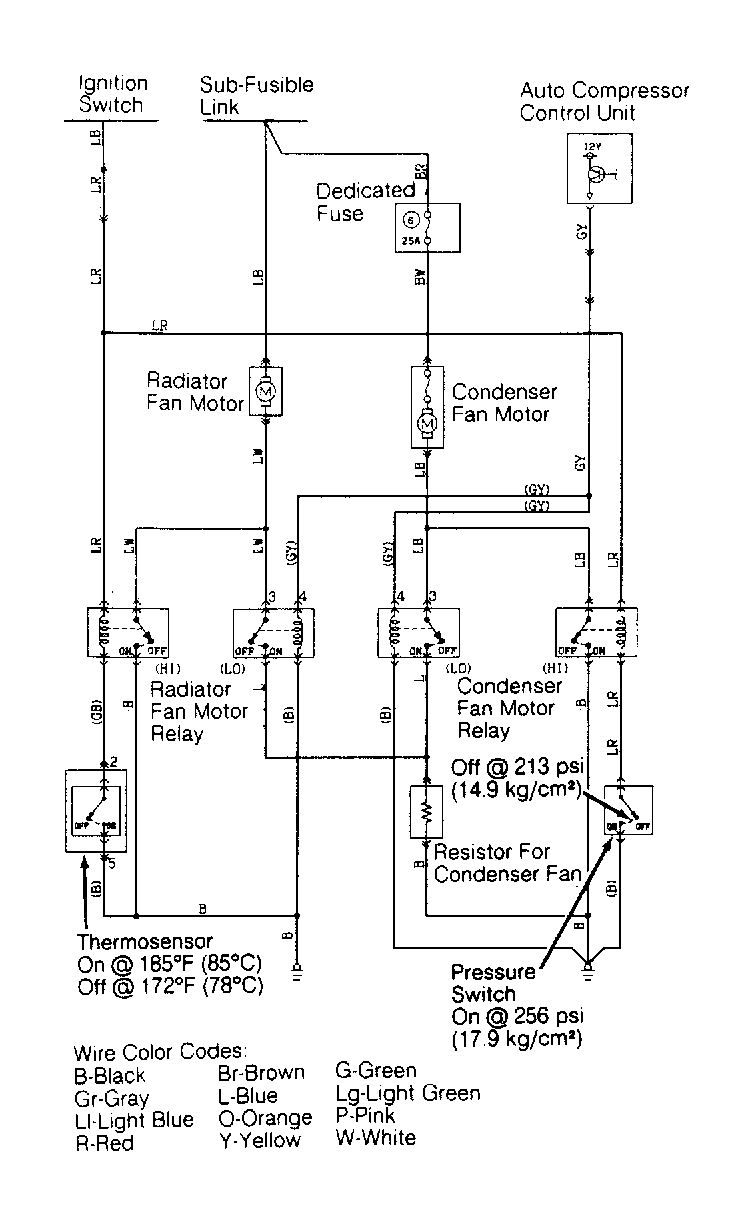

Fig 1: Galant Radiator Cooling Fan Wiring Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

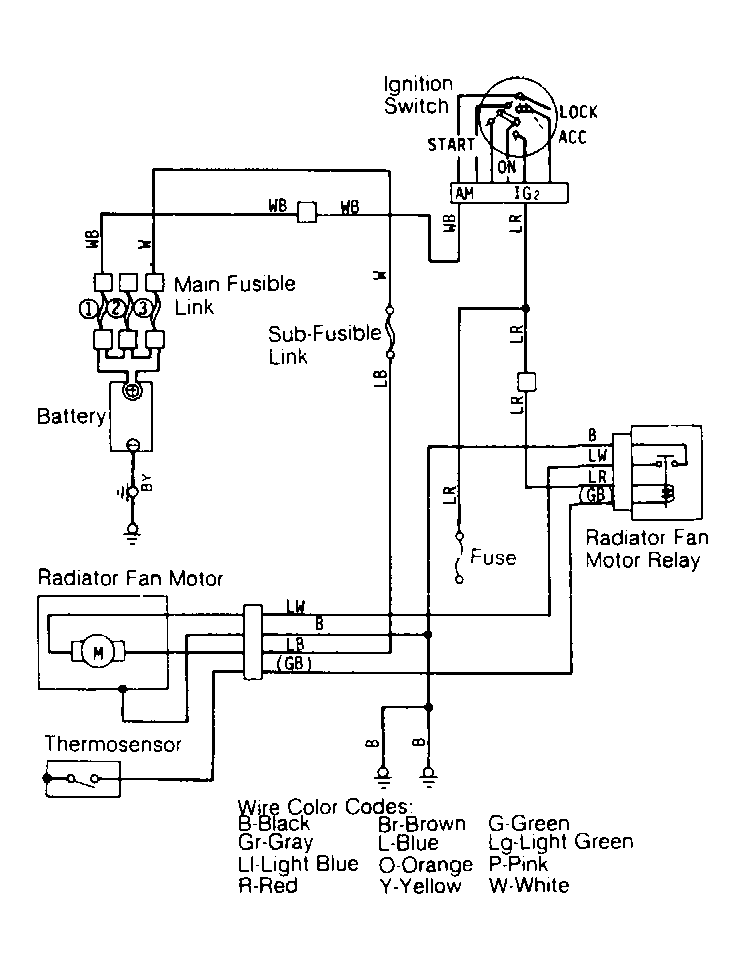

Fig 2: Sigma Radiator Cooling Fan Wiring Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
