Fault Charts-PFI

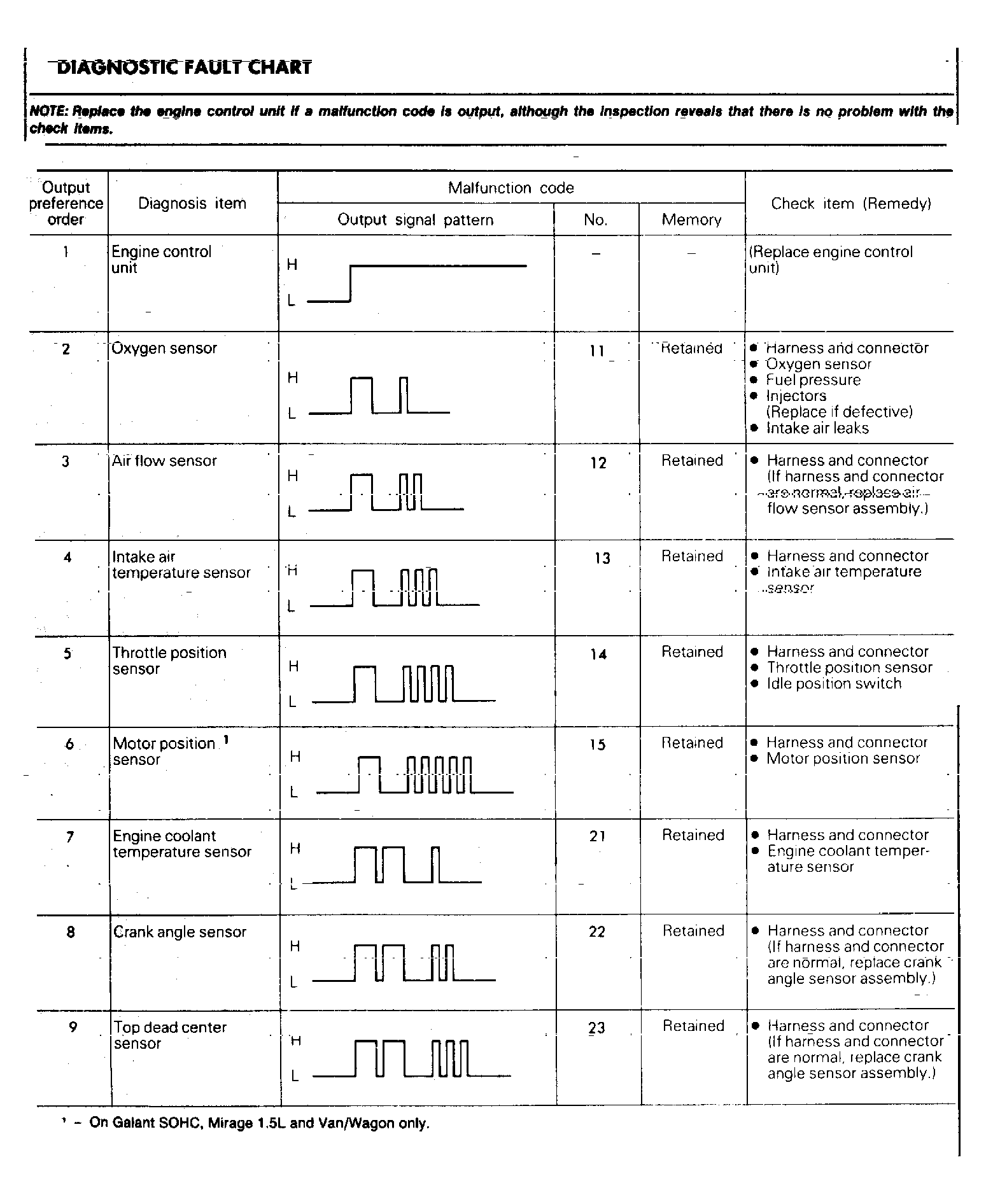

Fig 1: Diagnostic Fault Chart (1 of 2)
G120118Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

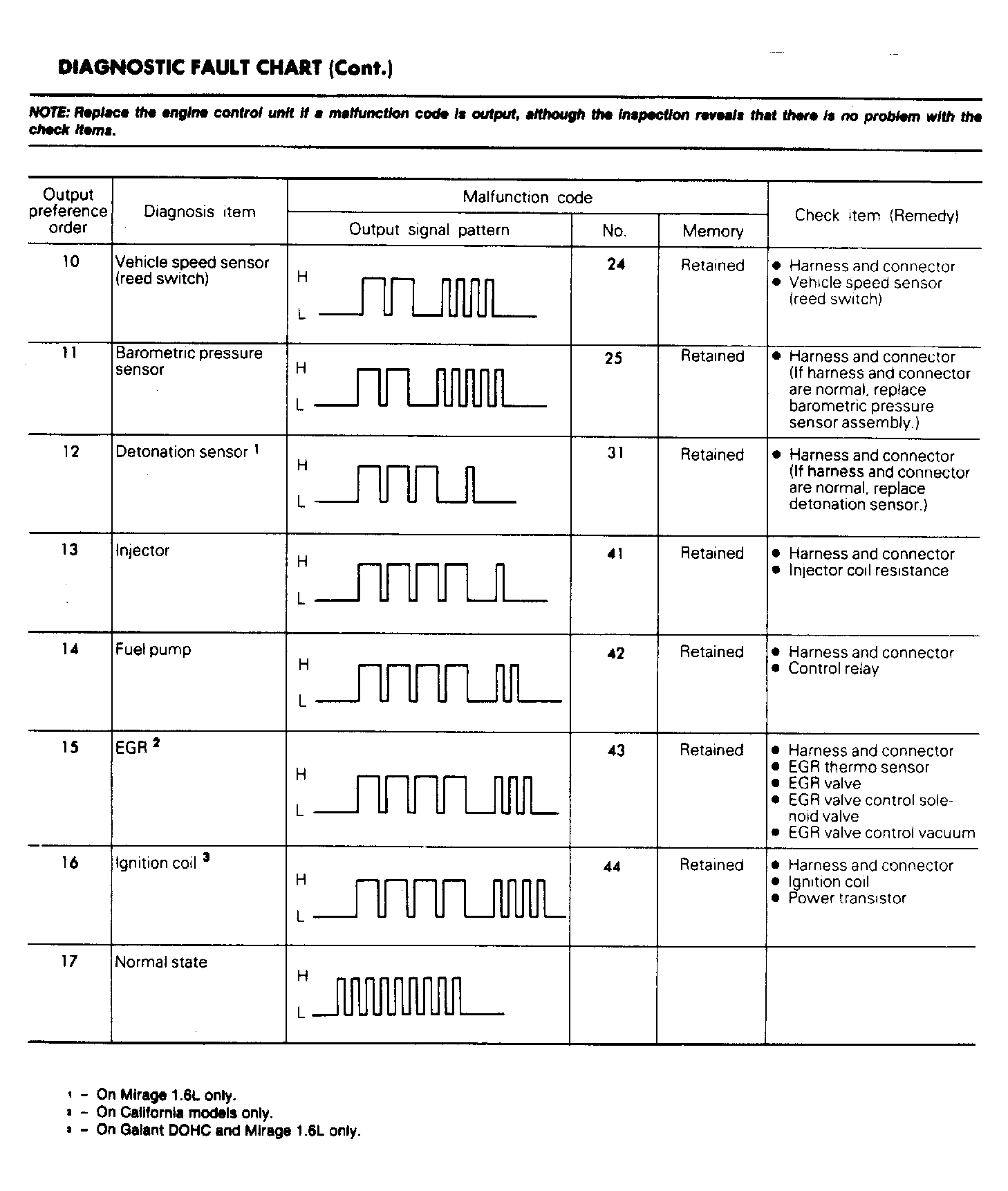

Fig 2: Diagnostic Fault Chart (2 of 2)
G120119Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
