Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse/Relay Block
Engine Compartment On right inner fender panel. See Figure.

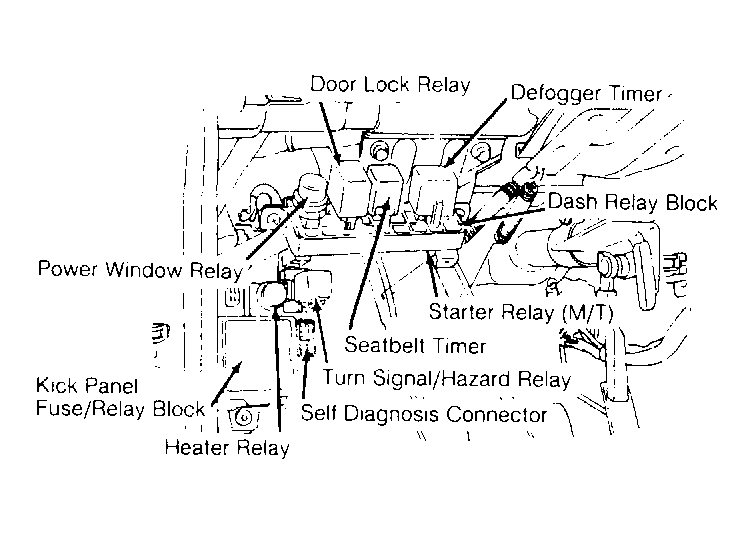

Passenger Compartment On left side kick panel. See Figure.
Main Fusible Link Box Next to positive battery post, on battery case bracket.
Relay Blocks
Dash Relay Block Under left side of dash. See Figure.
Sub-Fusible Link Block In fuse/relay block, on right inner fender panel. See Figure.
