Cranking Check

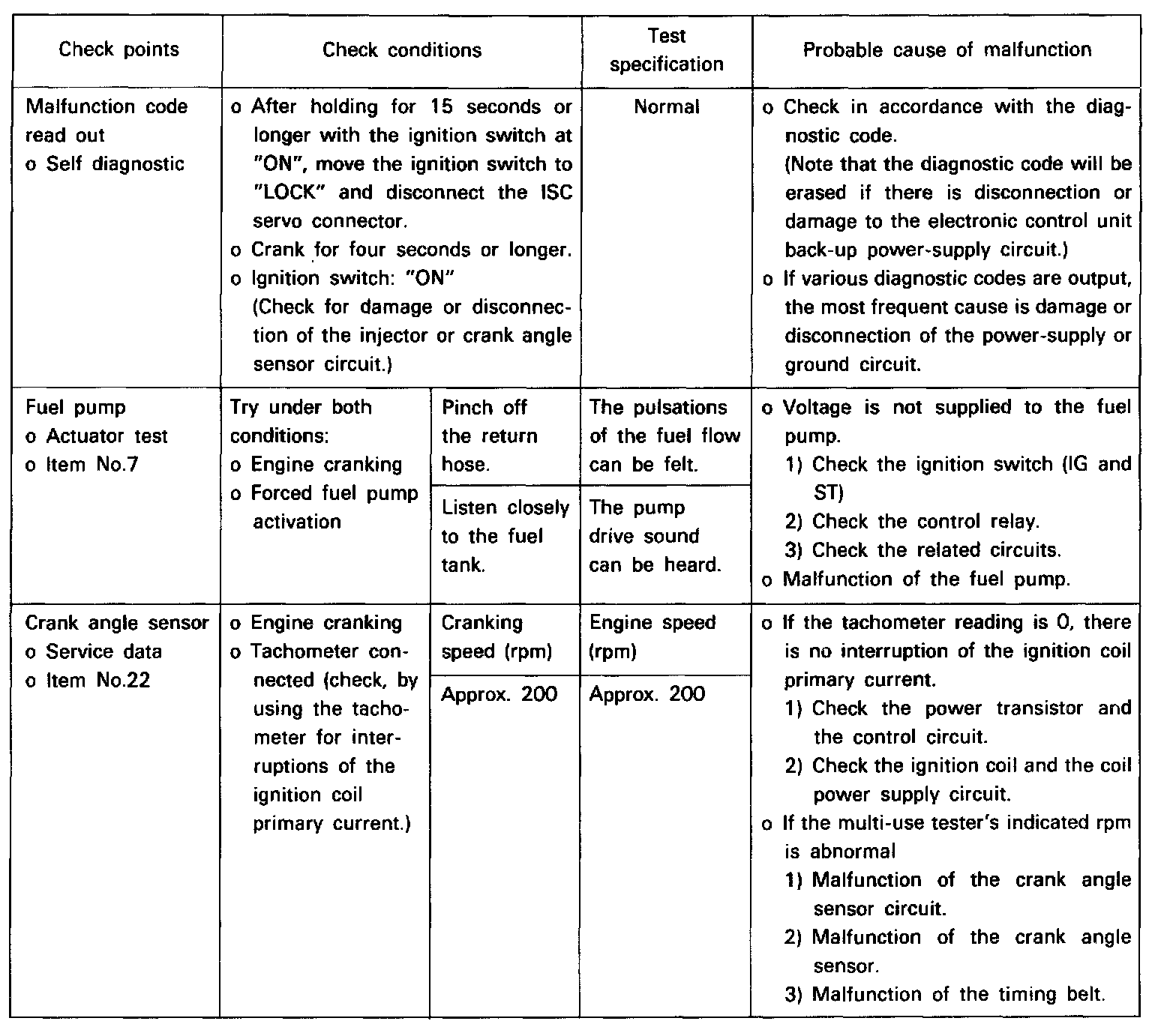

CRANKING CHECK (SHOULD BE PERFORMED WHEN ENGINE FAILS TO START, OR BEFORE STARTING ENGINE)

NOTE: The Item No. refers to Multi-Use Tester (MUT) code number.

Part 1 Of 3:




Part 2 Of 3:




Part 3 Of 3:
