Sensor Check

SENSOR CHECK

NOTE: The Item No. refers to Multi-Use Tester (MUT) code number.

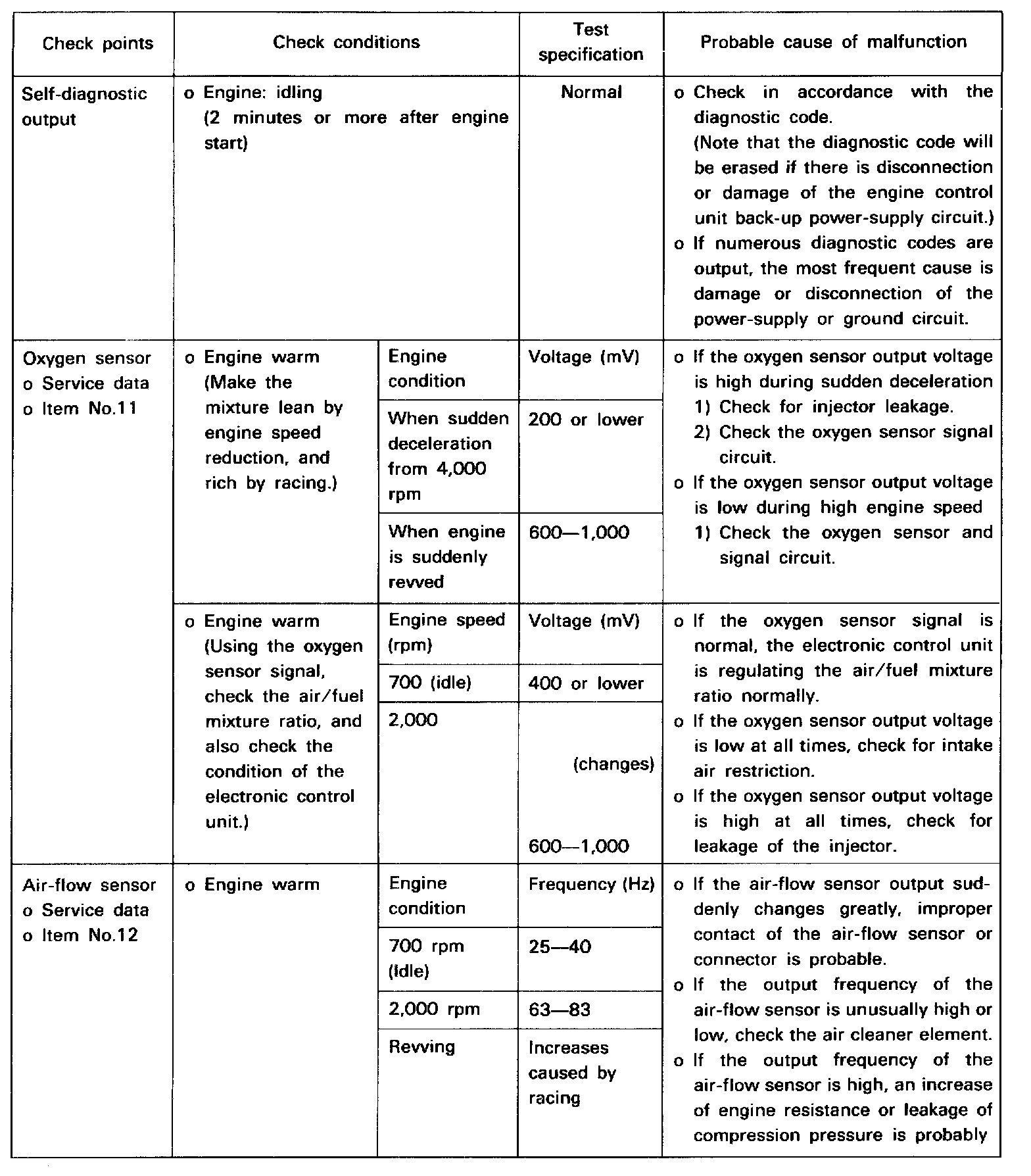

Part 1 Of 6:

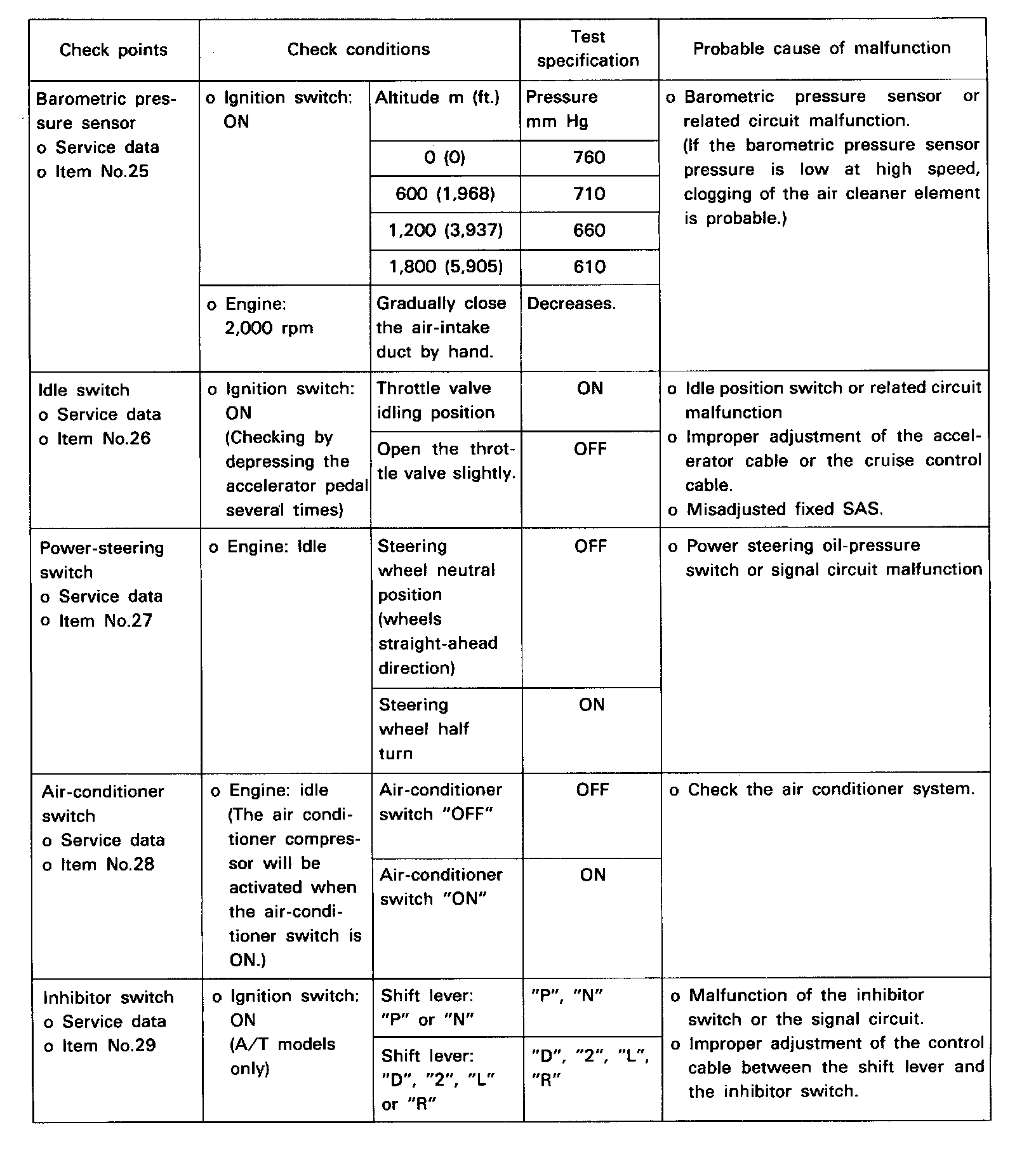

Part 2 Of 6:

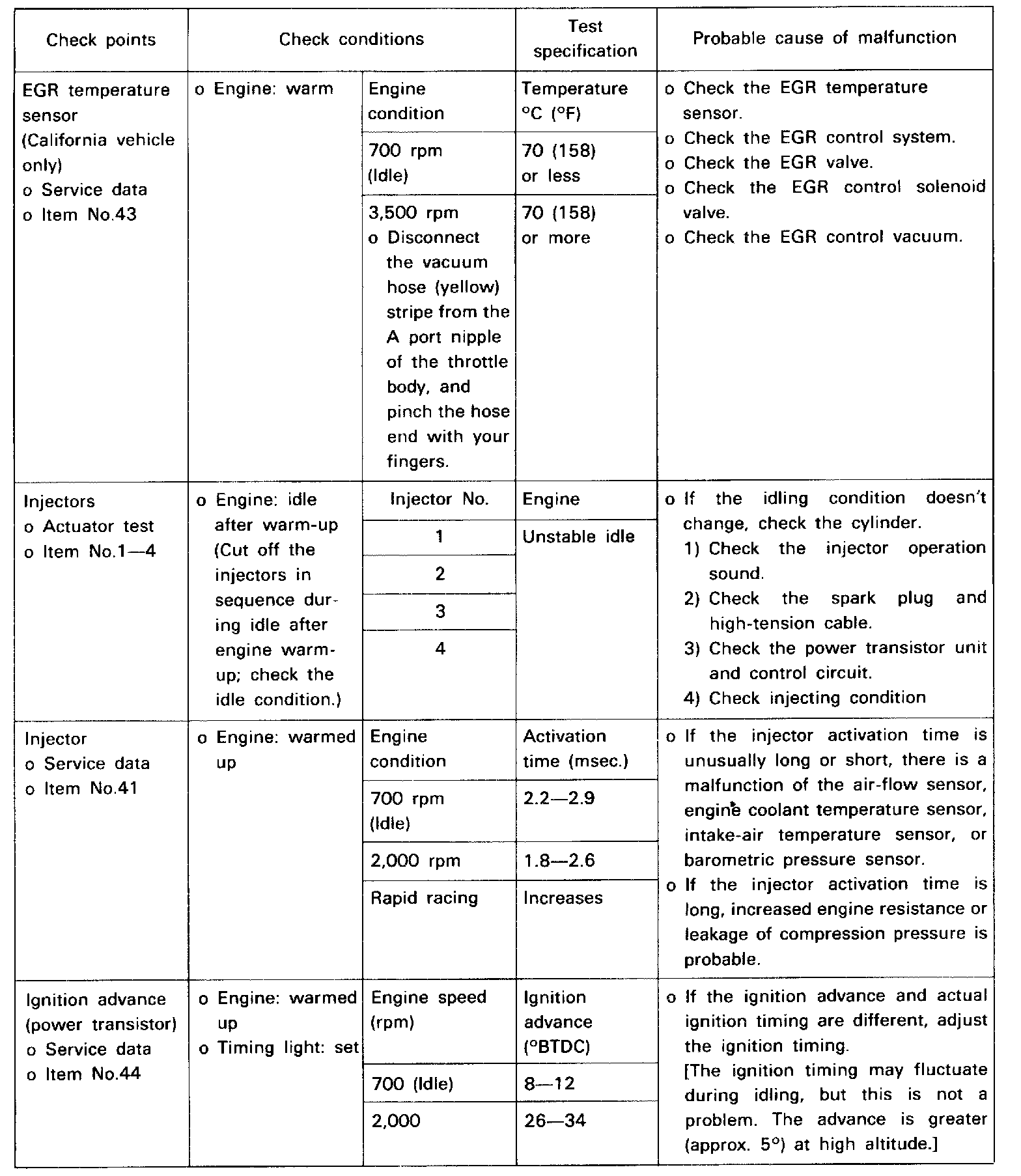

Part 3 Of 6:

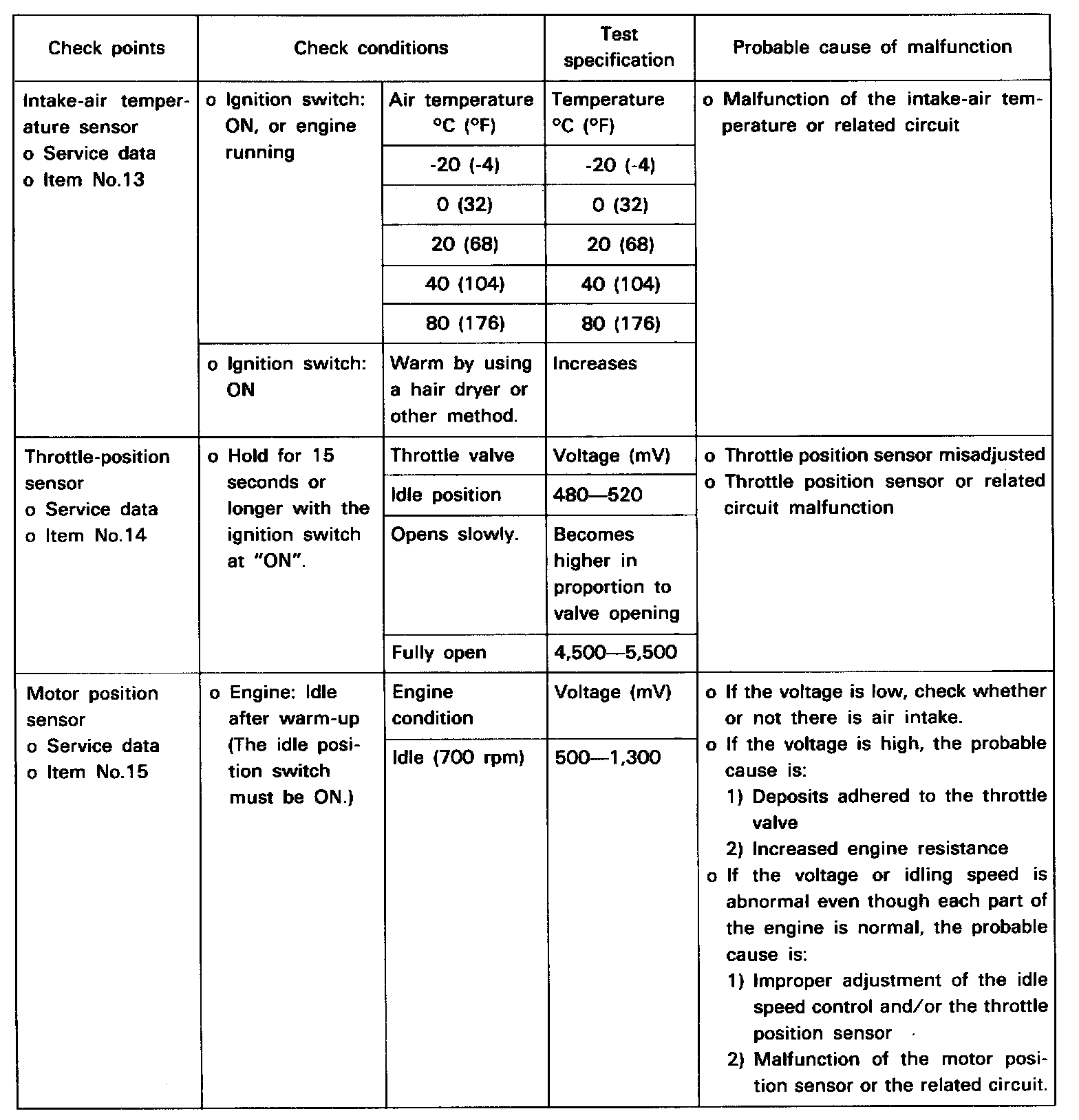

Part 4 Of 6:

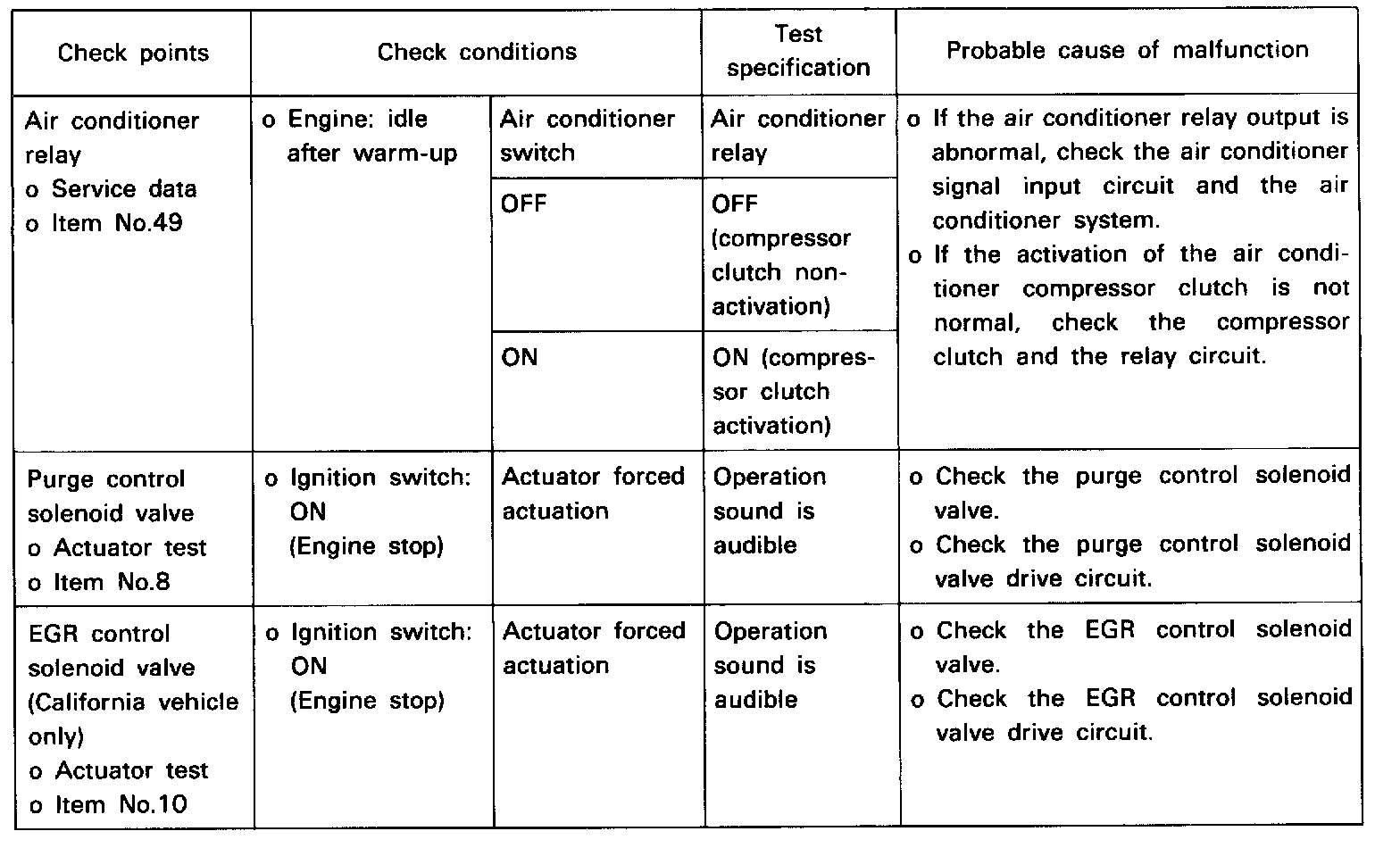

Part 5 Of 6:

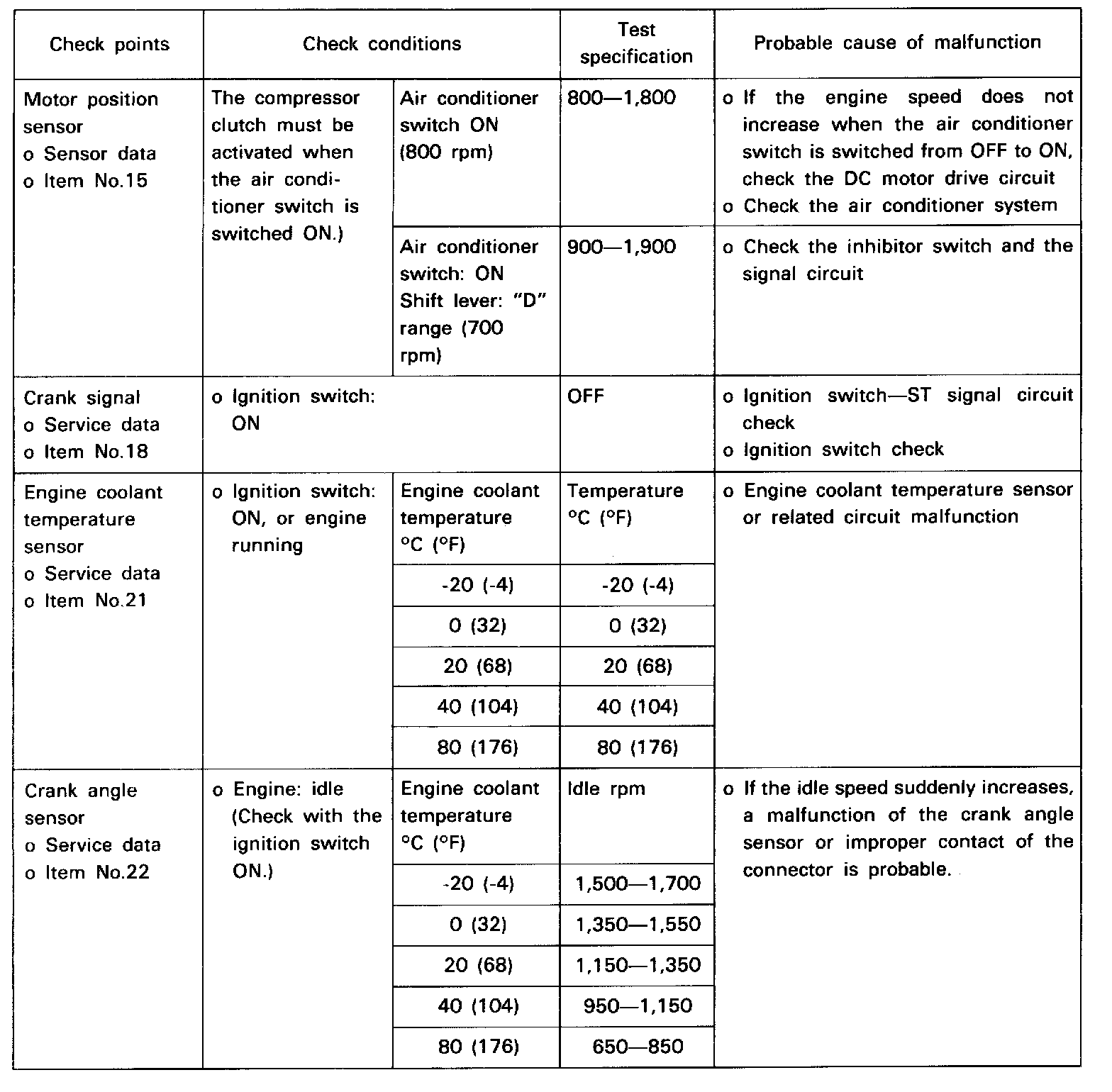

Part 6 Of 6:
