Dr-8: Testing Self-Diagnostic Connector
Fig 1: Circuit Diagram DR-8 (3.0L)

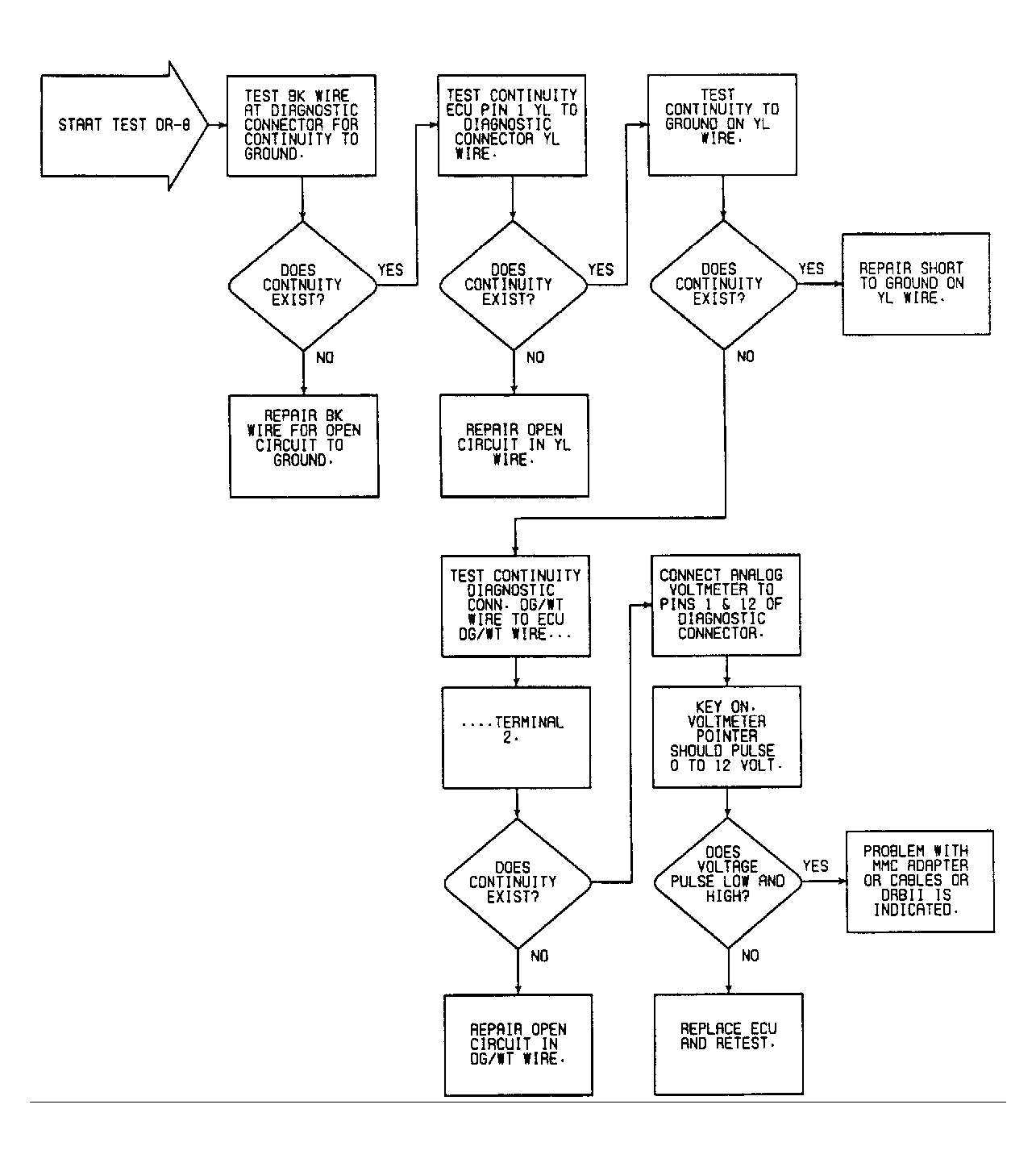

Fig 2: Flow Chart DR-8 (3.0L)
