NS-4: Testing Self-Diagnostic Connector

Fig 1: Circuit Diagram NS-4 (3.0L)

G90D20068

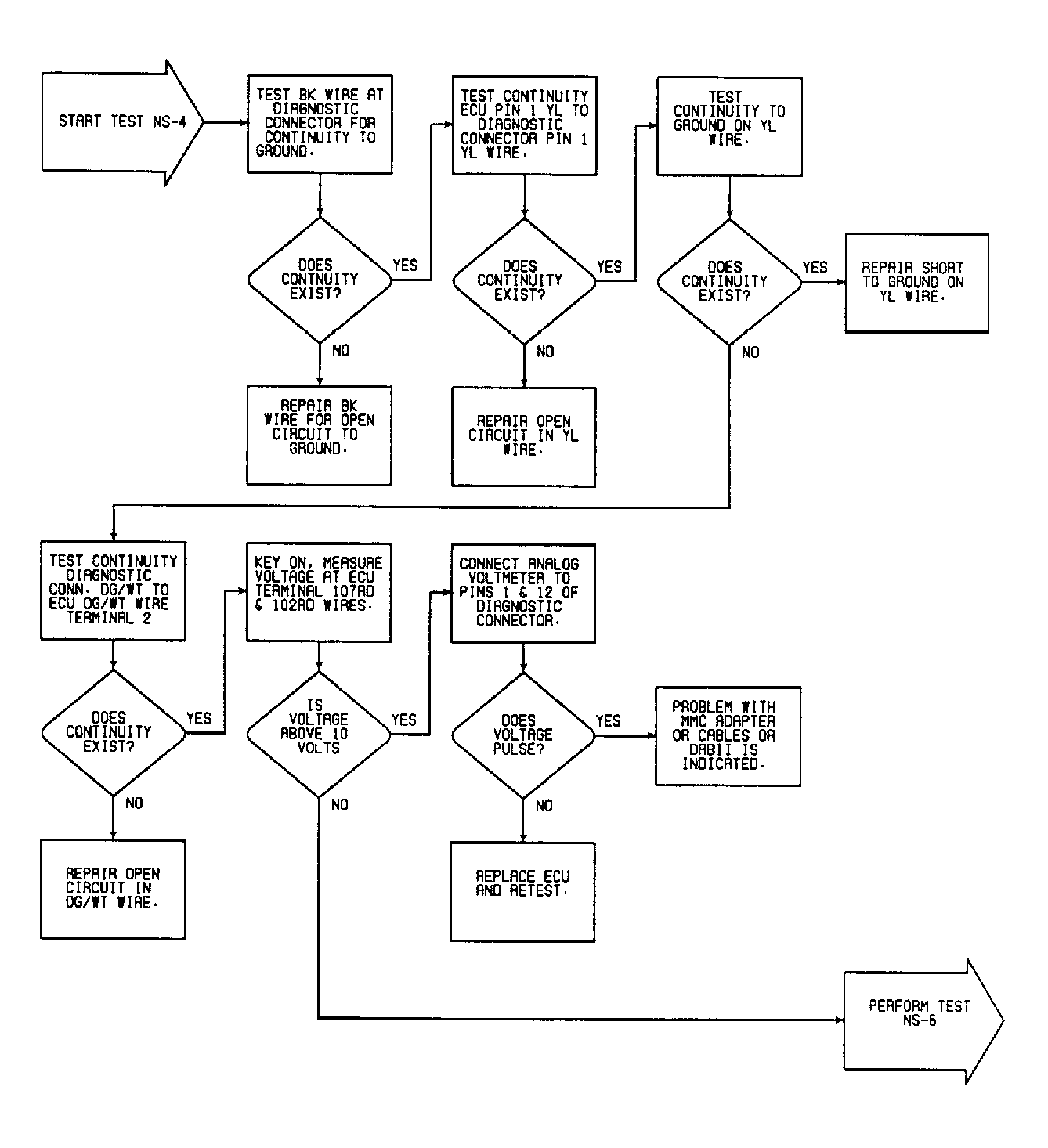

Fig 2: Flow Chart NS-4 (3.0L)

G90A20099
