Code Read-Out

Perform each input operation according to the input check table and read the codes. See Figure .

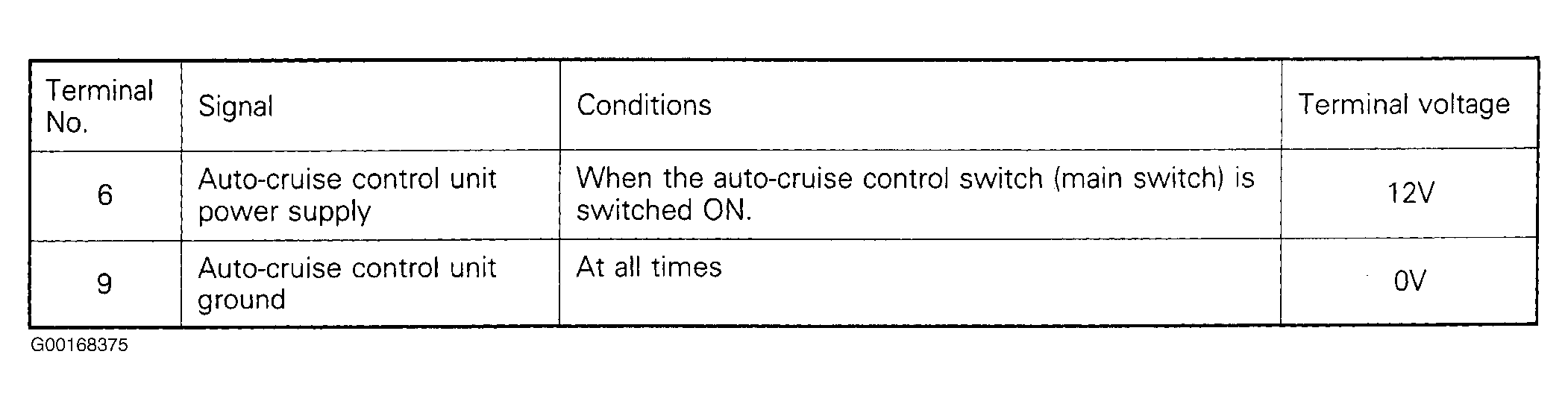

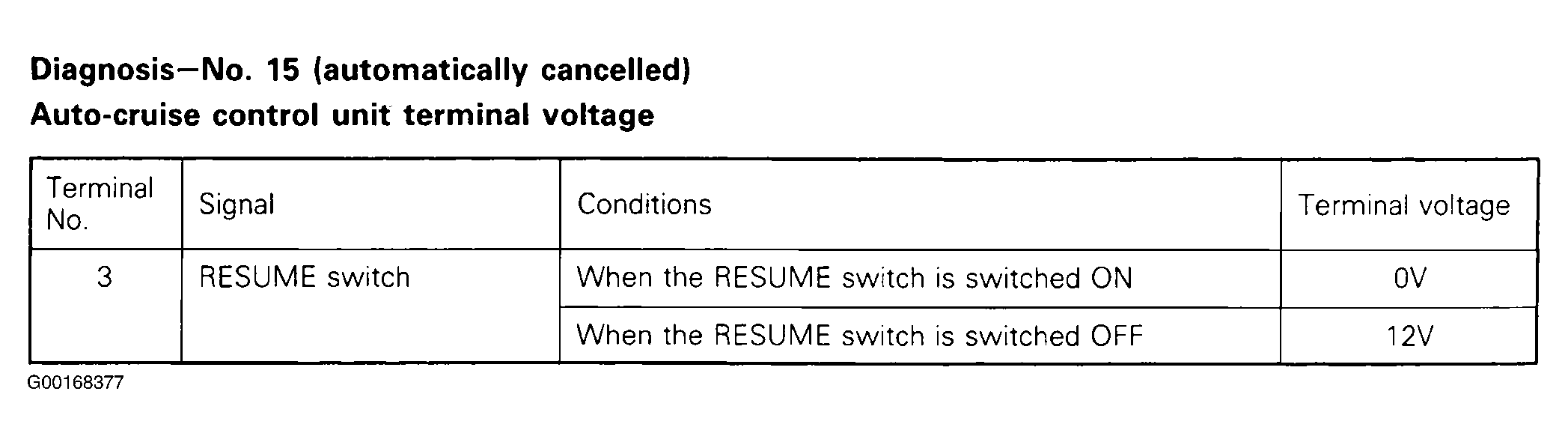

Each code will be displayed in an order of priority beginning from No. 1. When each input operation is performed and the signals for the conditions are received by the computer, each output code will be repeatedly displayed in the sequence of priority for as long as that signal continues. If there is no display, it is possible that there is a malfunction of the auto-cruise control unit power-supply circuit or the SET and/or RESUME switch, so check according to tables in Figure -Figure .
