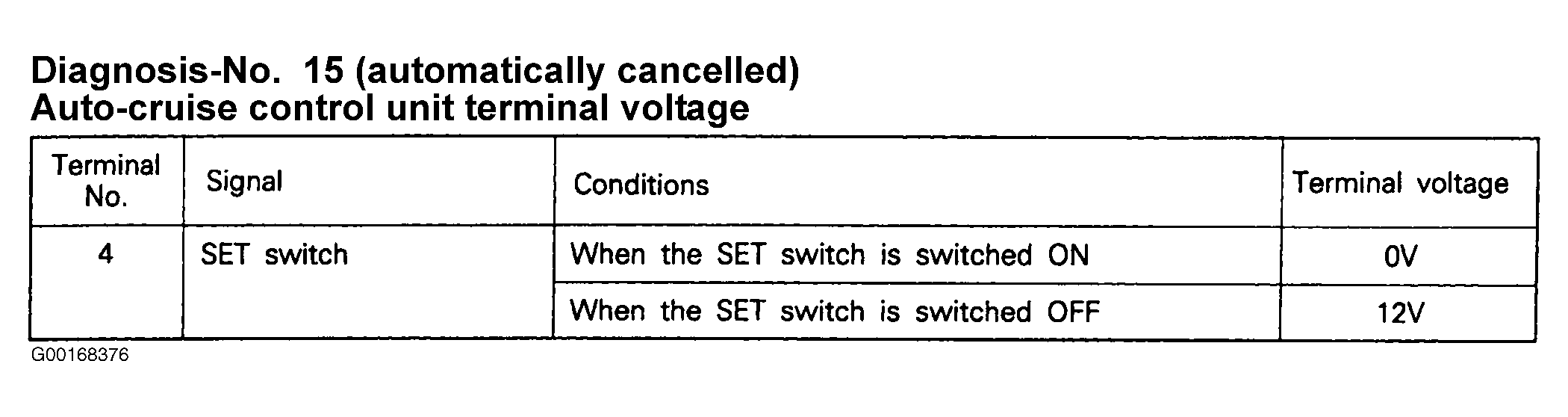

Chart 2: Set Switch Circuit
When the SET switch is switched ON (at the vehicle speed desired to be maintained, and with the main switch of the cruise control switches ON) that vehicle speed is maintained as a constant speed. The constant speed is gradually reduced (the "coasting" feature) when the SET switch is pressed speed and, when the SET switch is released, the vehicle then maintains that newly set constant speed (speed it was SET at). Current flows to the cruise control unit, the control switch (SET) and to ground. See Fig 1 . See WIRING DIAGRAMS for circuit locations.
