Fuel Pump Operation Check

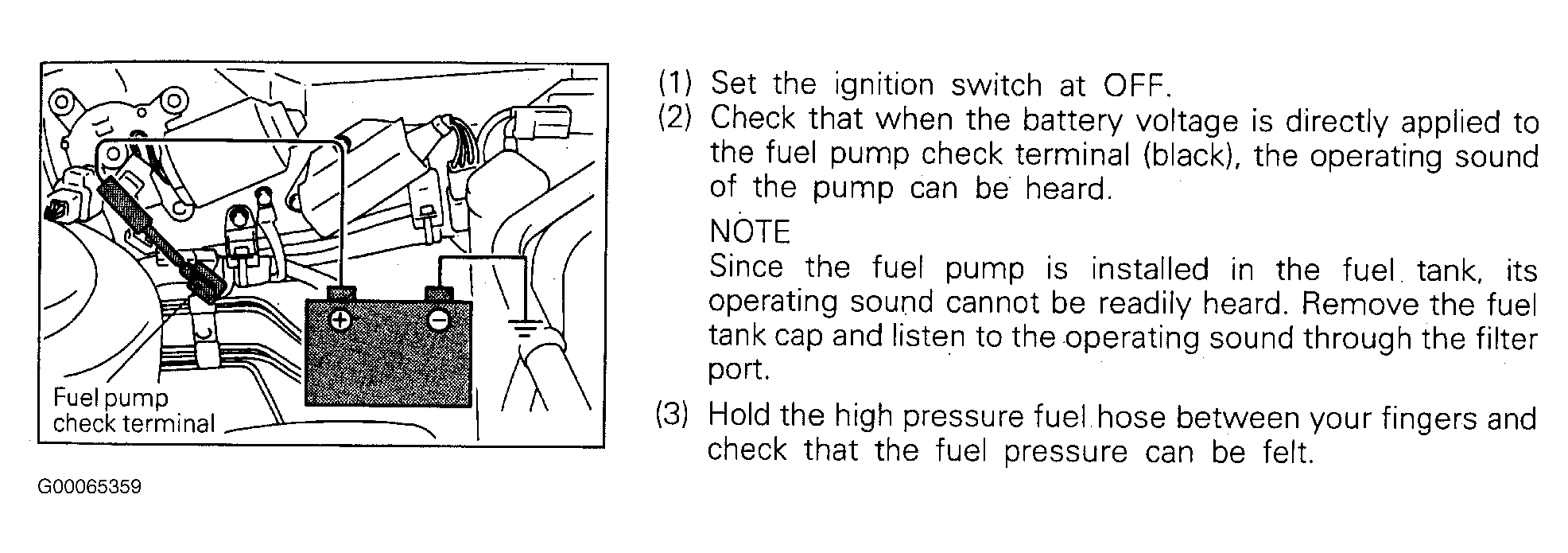

Fig 1: Fuel Pump Operation Check - Steps 1-3
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
