NS-2: Testing Ignition Circuit

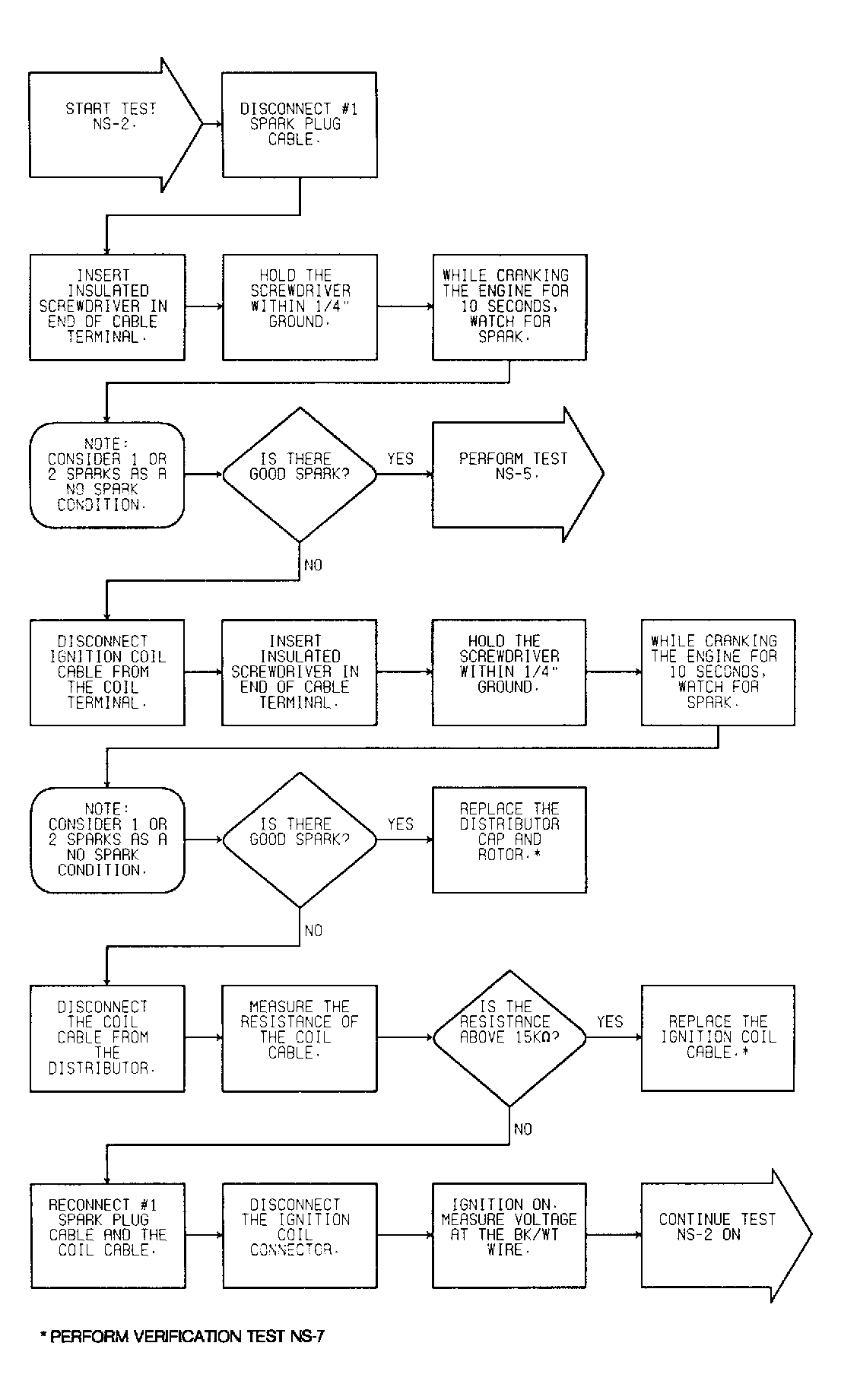

Fig 1: Test NS-2 Flow Chart - SOHC (1 Of 4) Testing Ignition Circuit
G92D26040

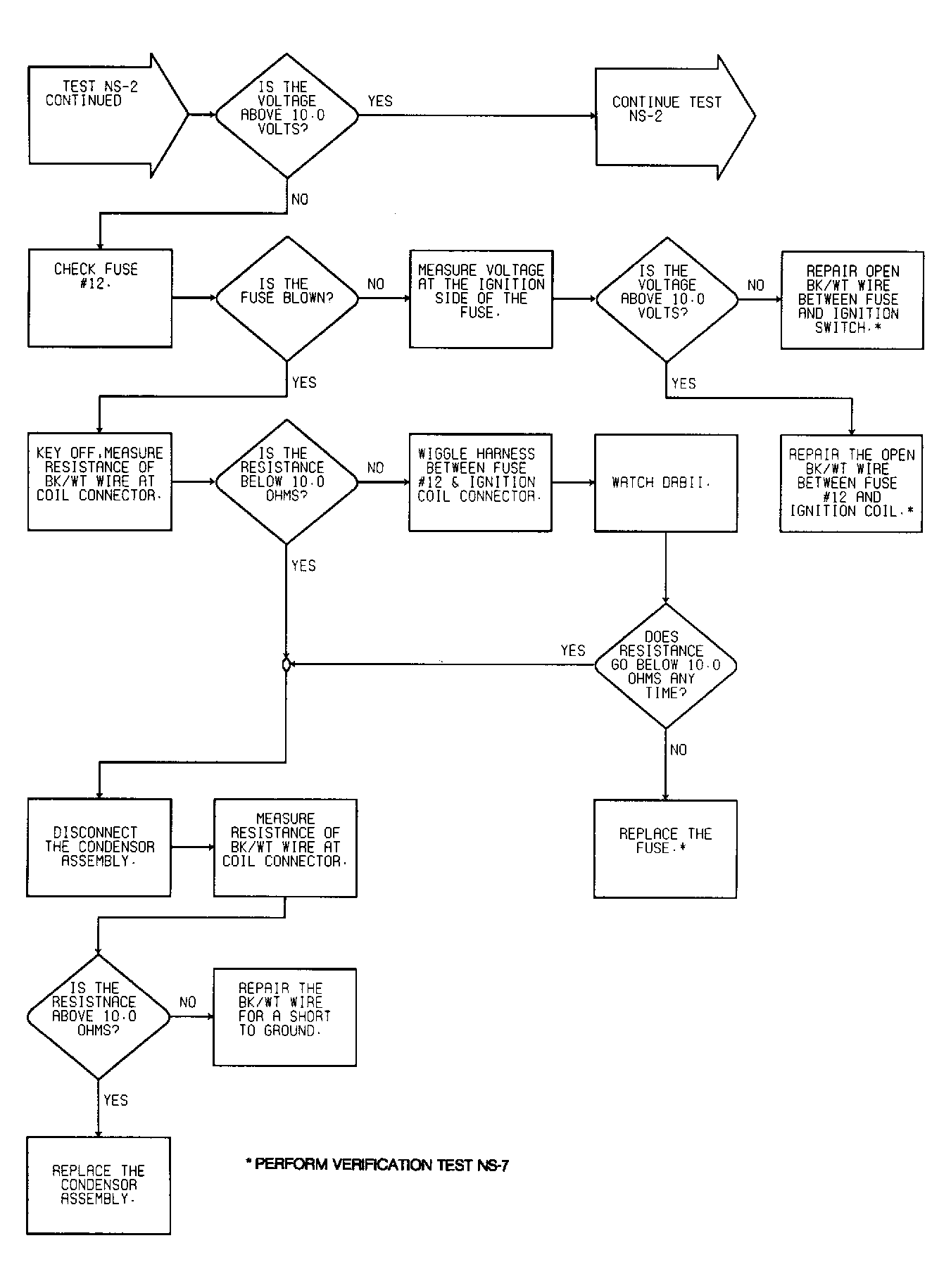

Fig 2: Test NS-2 Flow Chart - SOHC (2 Of 4) Testing Ignition Circuit
G92E26041

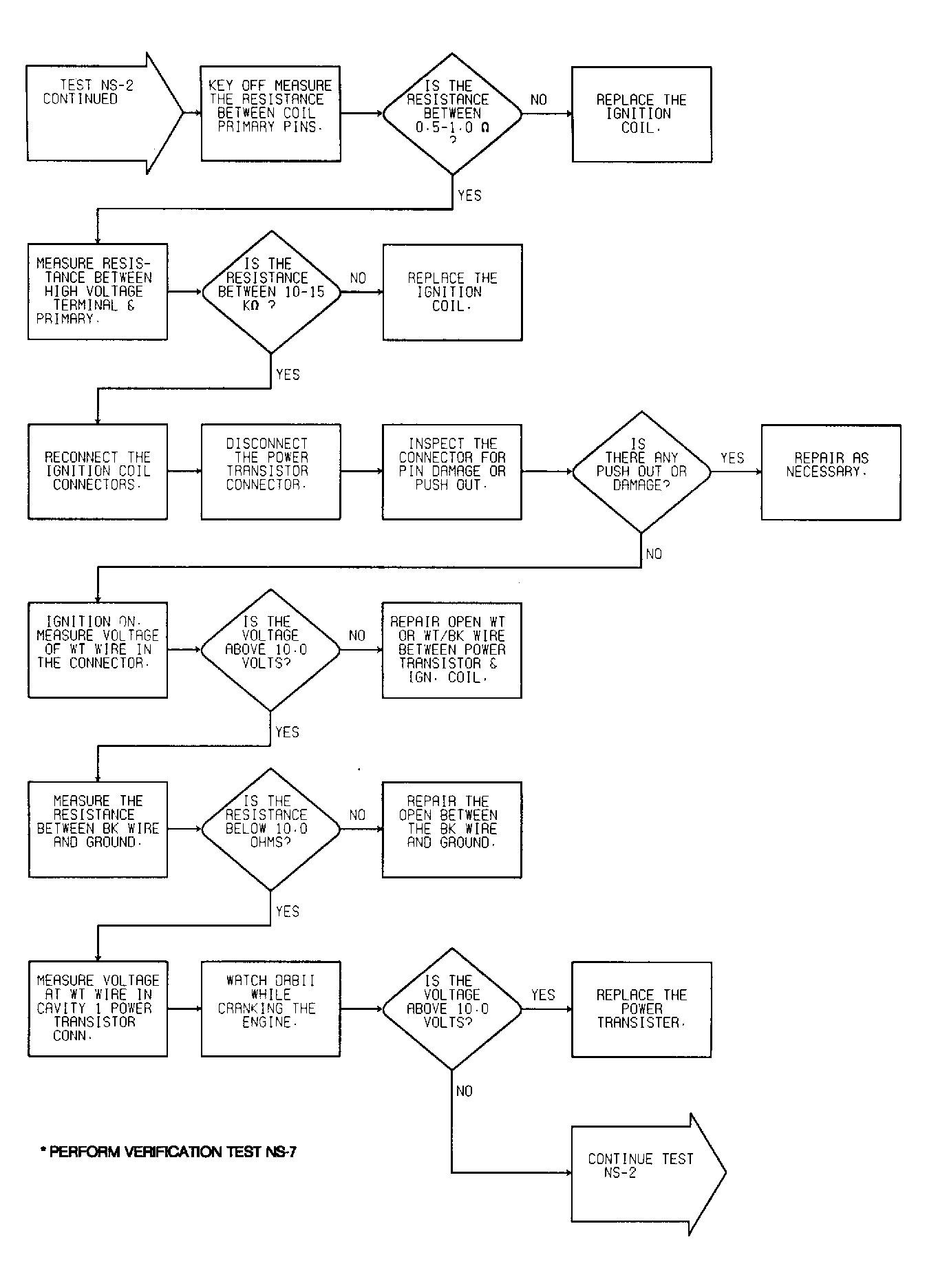

Fig 3: Test NS-2 Flow Chart - SOHC (3 Of 4) Testing Ignition Circuit
G92F26042

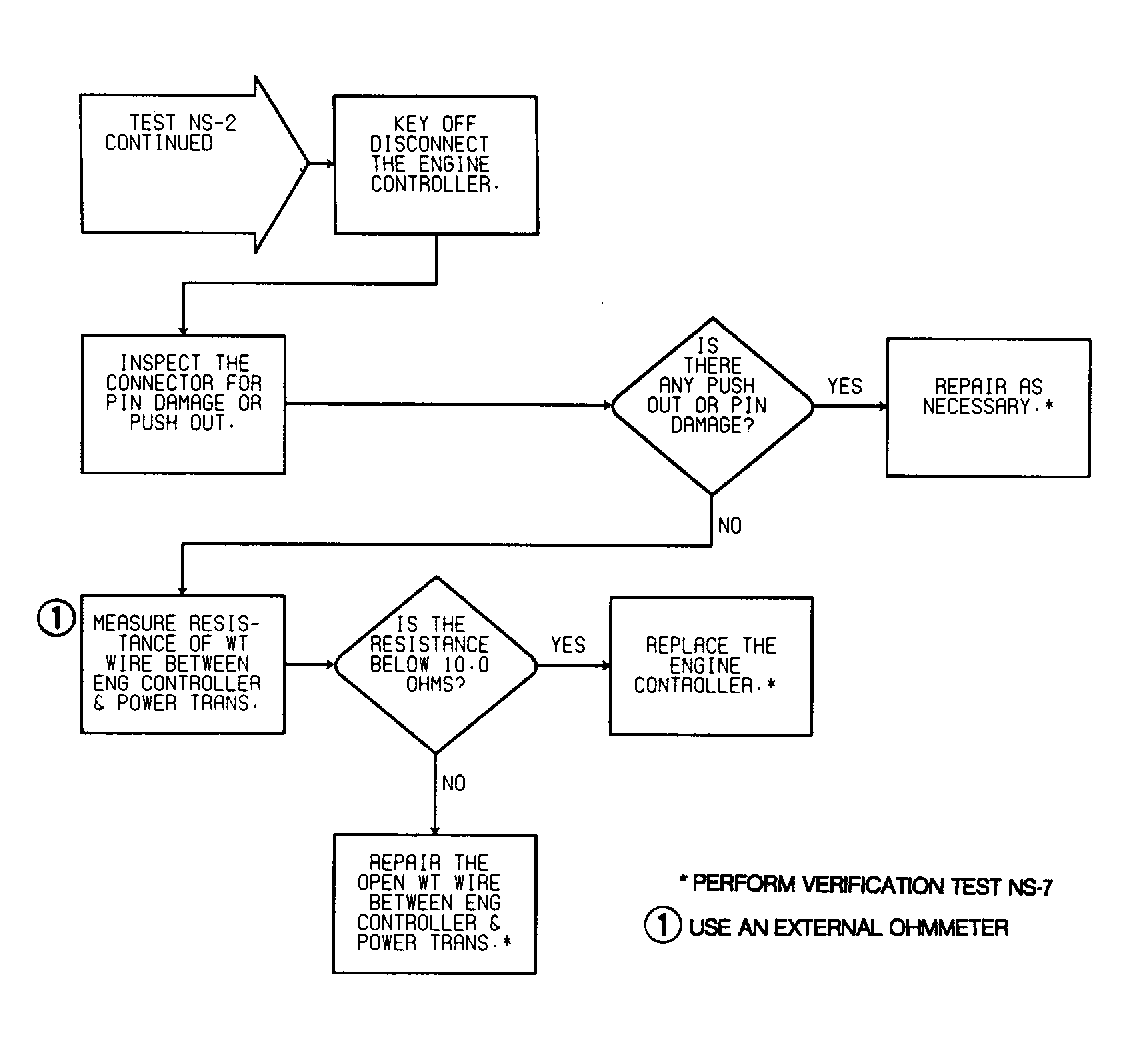

Fig 4: Test NS-2 Flow Chart - SOHC (4 Of 4) Testing Ignition Circuit
G92G26043
