Power Window Unit (Rear)

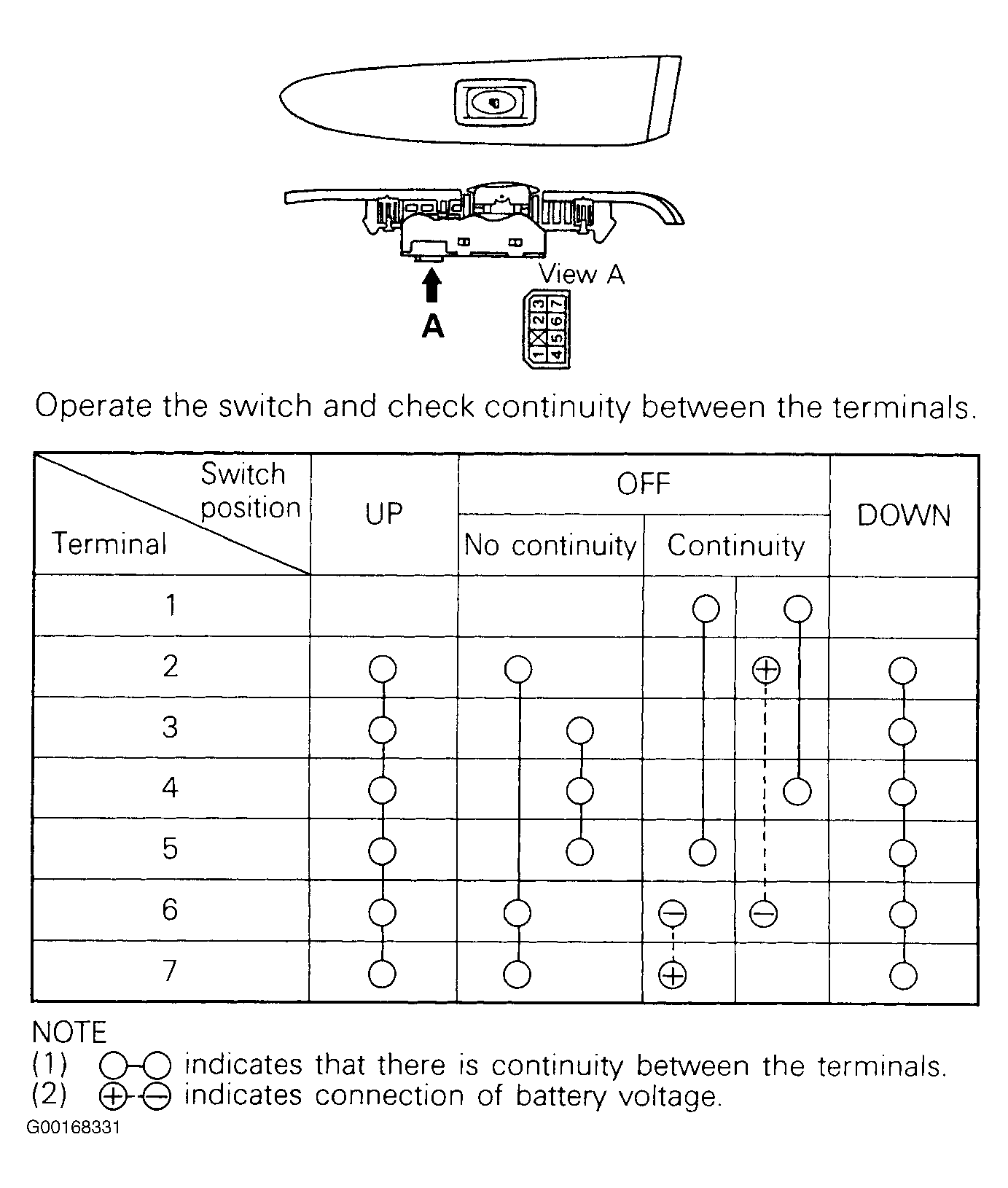

Fig 1: Testing Rear Power Window Unit
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
