NS-1B: Reading Fault Codes & Checking For Spark

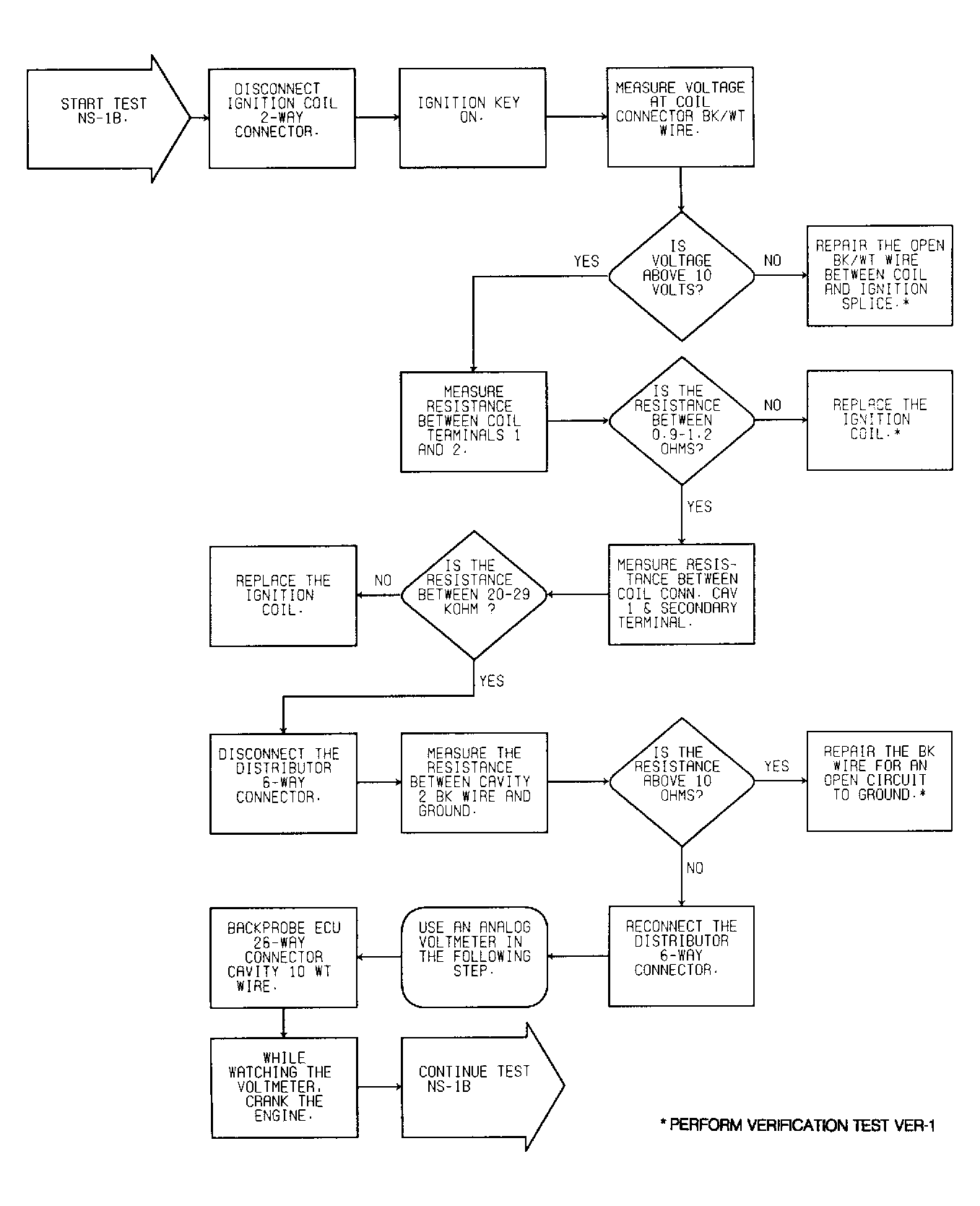

Fig 1: Test NS-1B Flow Chart (1 Of 2) Reading Fault Codes & Checking For Spark

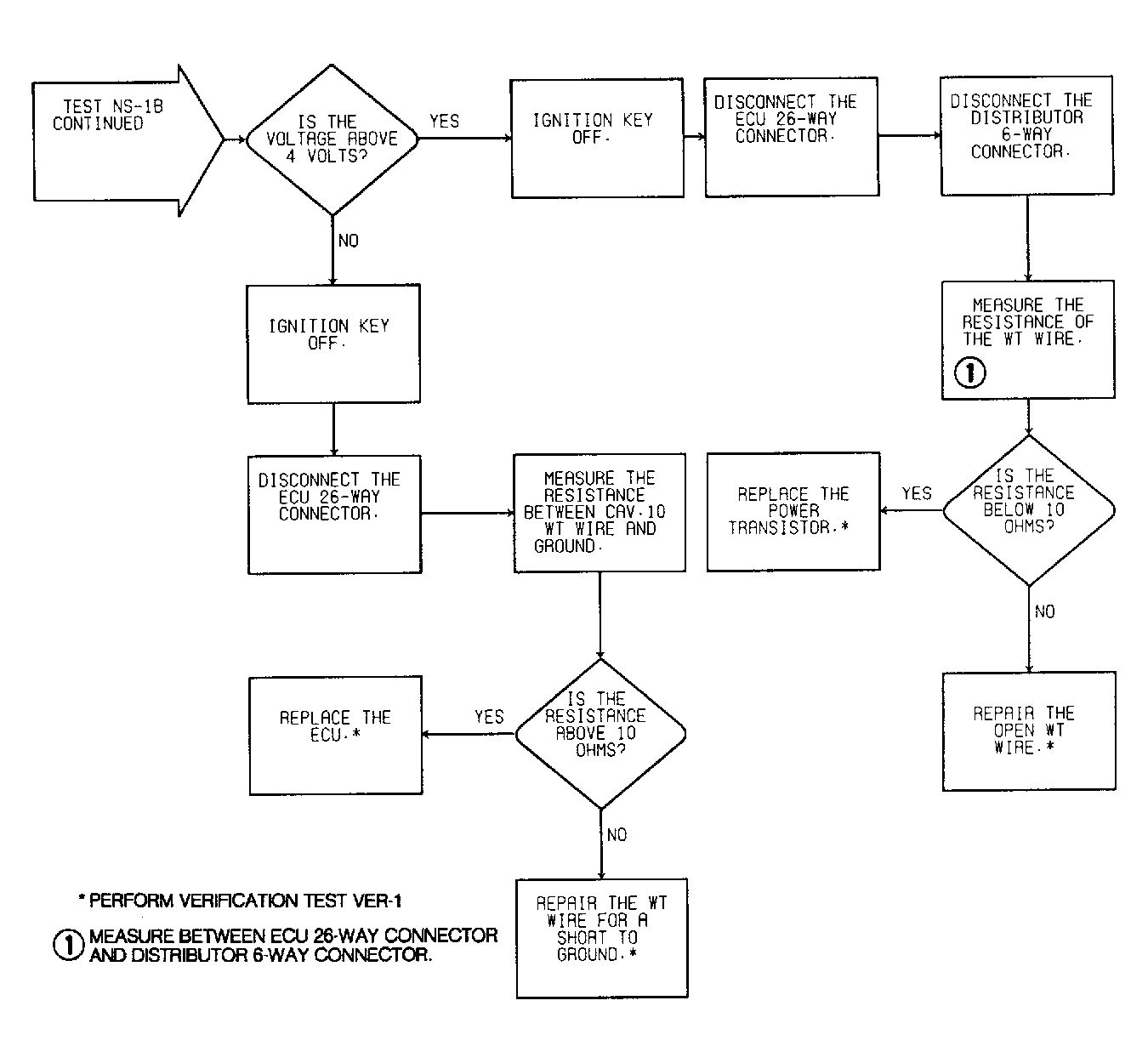

Fig 2: Test NS-1B Flow Chart (2 Of 2) Reading Fault Codes & Checking For Spark
