Remote Controlled Mirror Switch

For remote controlled mirror switch tests, see Fig 1 .

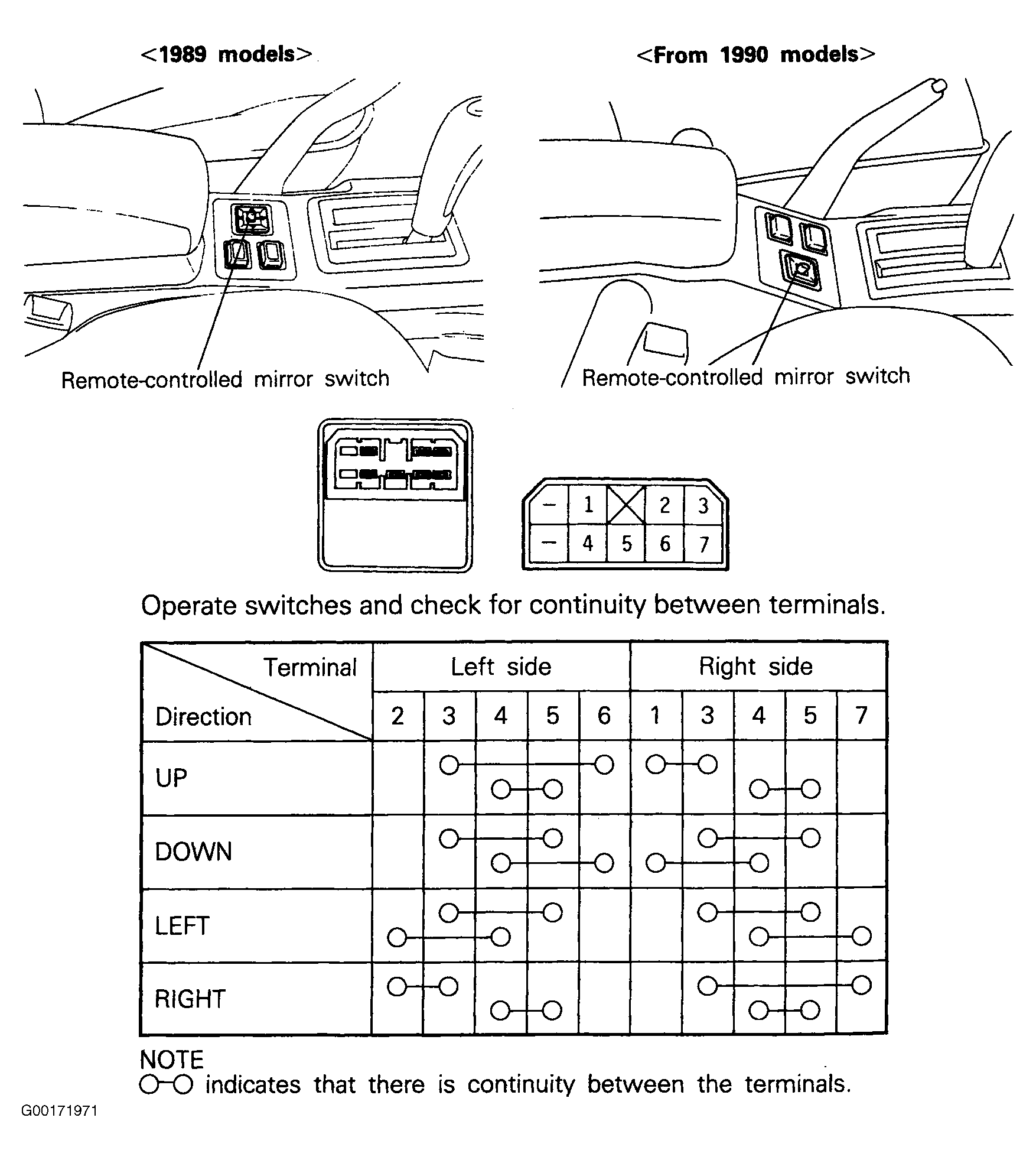

Fig 1: Testing Remote Controlled Mirror Switch
G00171971Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
