Remote Control Mirror Assembly (Without Heated Mirrors)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Remote Control Mirror Assembly (Without Heated Mirrors)

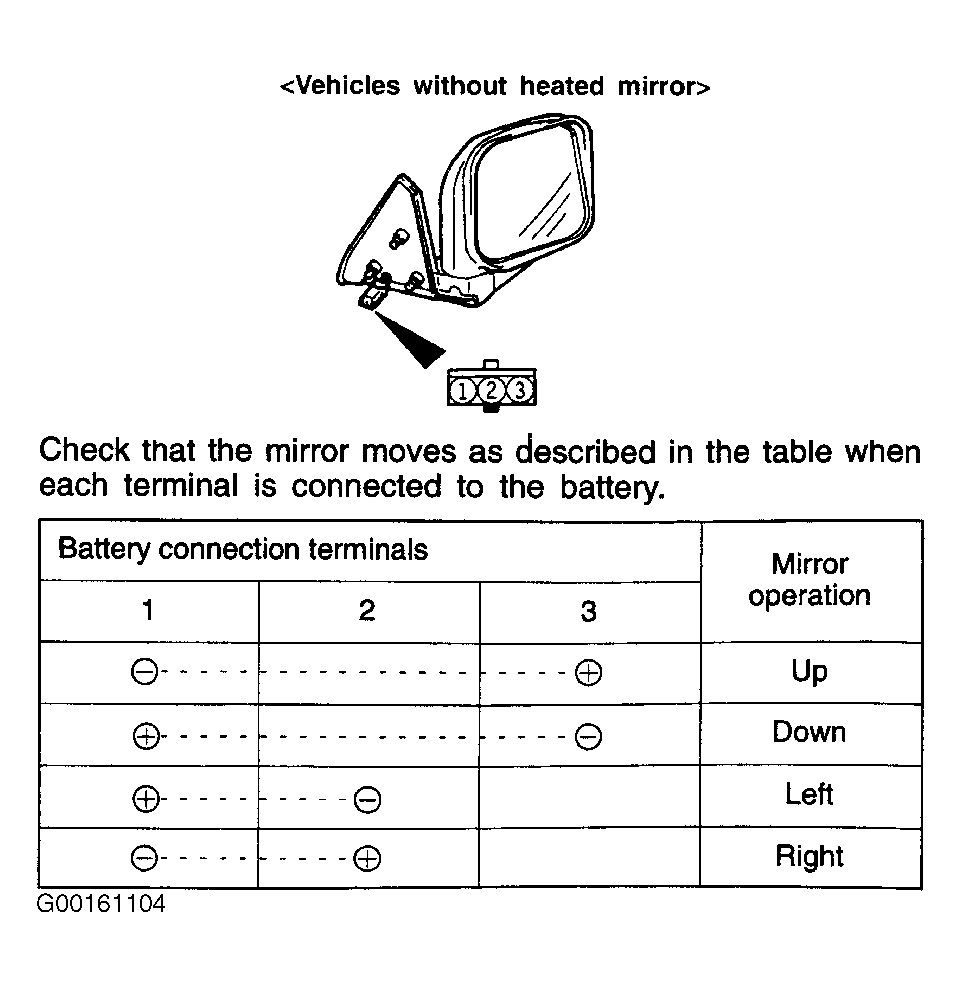

Fig 1: Testing Remote Controlled Mirror Assembly (Without Heated Mirrors)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
