Remote Control Mirror Assembly (With Heated Mirrors)

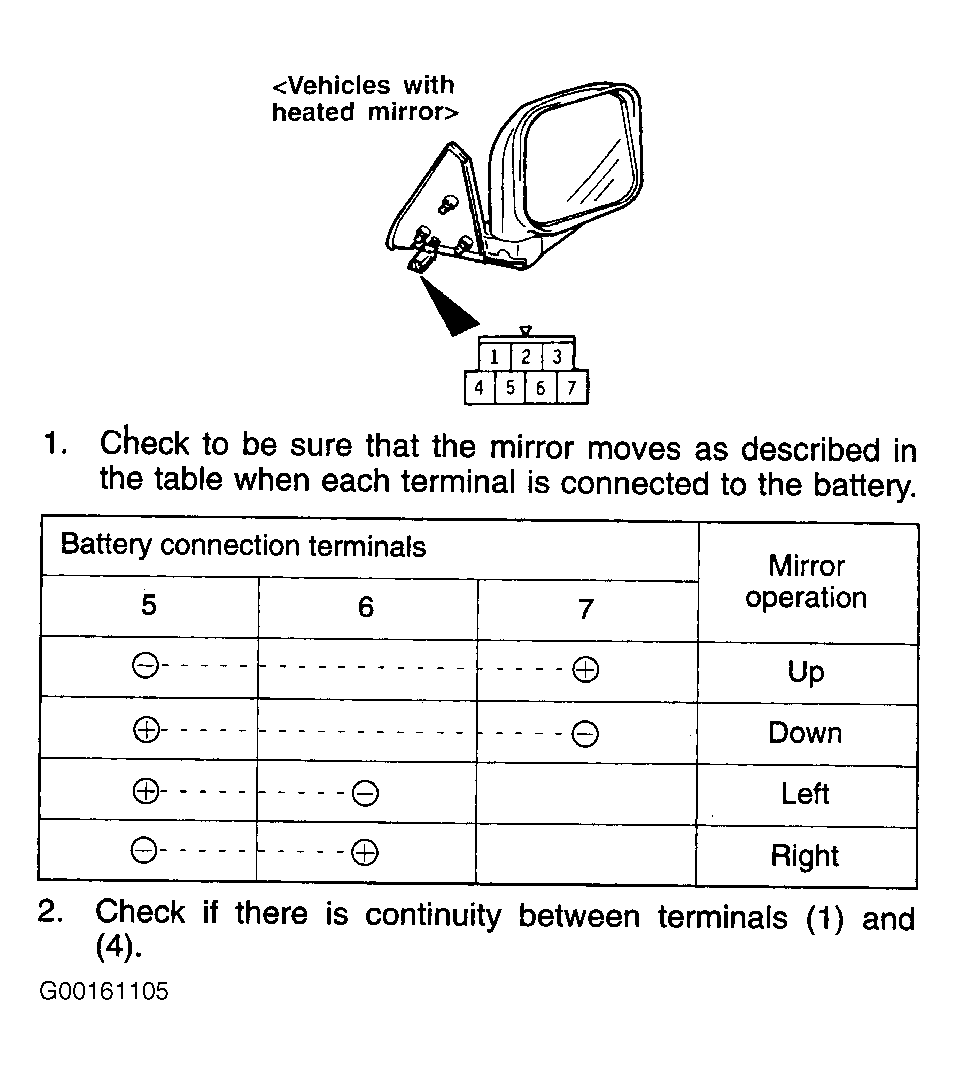

Fig 1: Testing Remote Control Mirror Assembly (With
G00161105Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
