Power Seat Switch

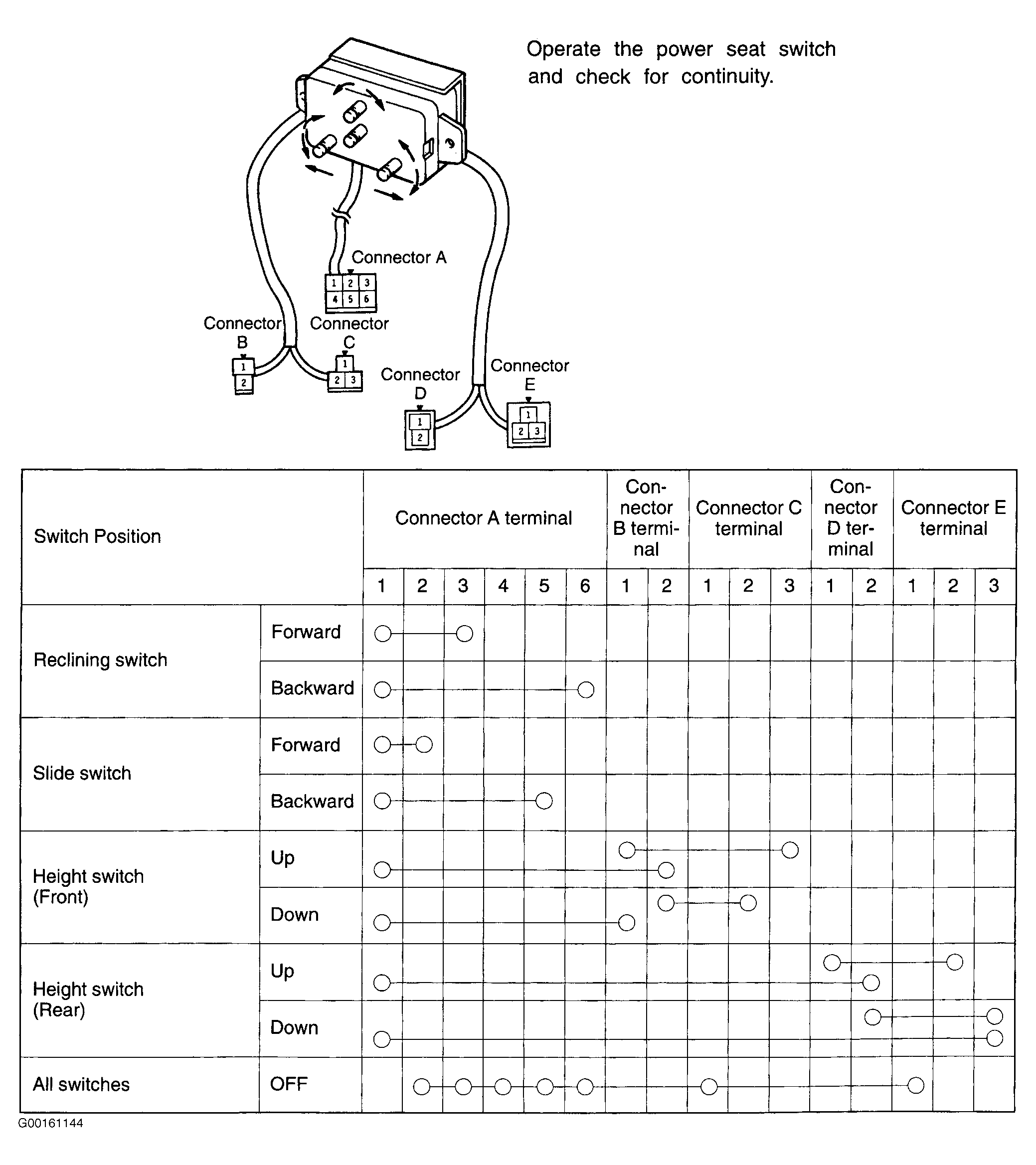

For power seat switch test procedures, see Fig 1 .

Fig 1: Testing Power Seat Switch
G00161144Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
