Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | Mounted on top of right rear wheelwell, under metal plate. |

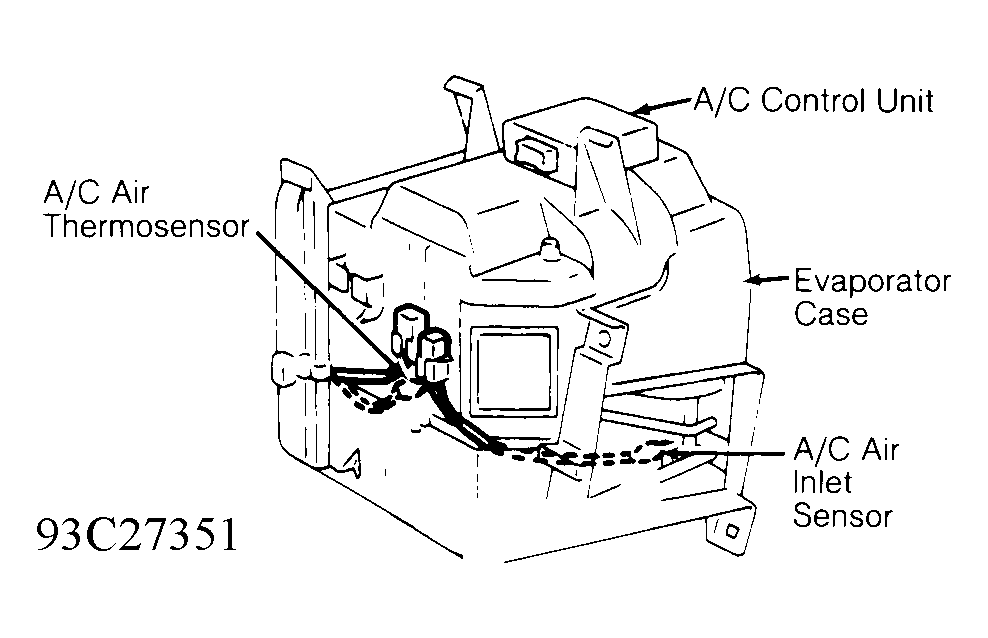

| A/C Control Unit | On top of evaporator case. See Figure . |
| Cruise Control Unit | Behind glove compartment. |

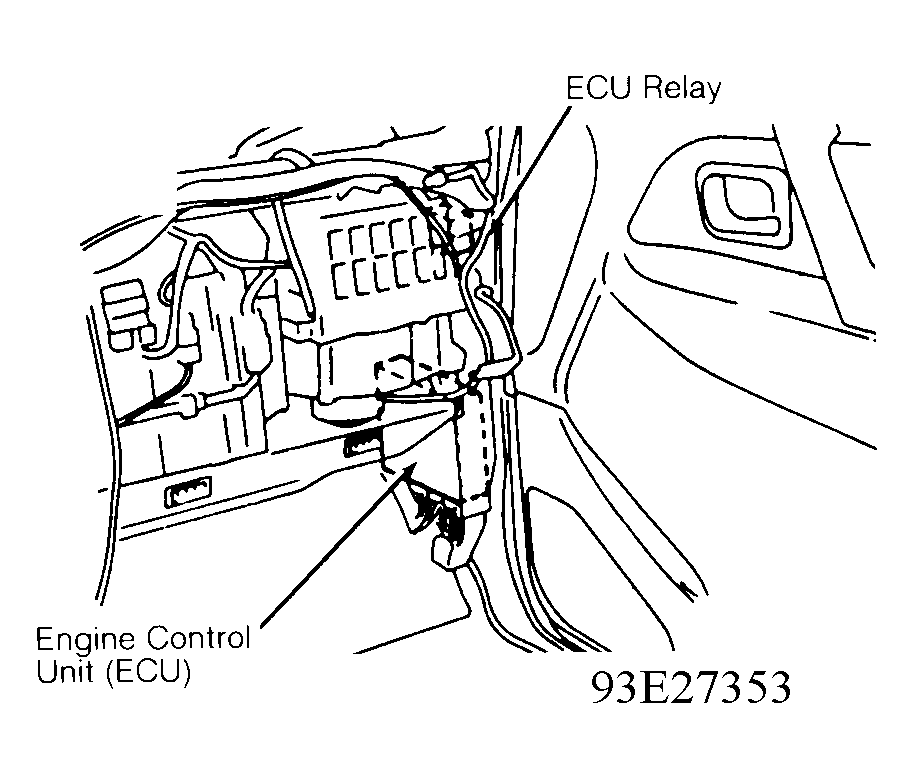

| Engine Control Unit (ECU) | Behind right kick panel. See Figure . |
| Power Antenna Control Unit | Behind radio unit. |
| Rear Differential Lock Control Unit | Mounted on top of rear right wheelwell, under metal plate. |
| Sun Roof Control Unit | On center of roof, behind sun roof. |
| Variable Shock Absorber Control Unit | Behind left rear wheelwell, behind panel. |
| 4WD Indicator Control Unit | Behind center of dash. |
