Dr-10: Code 23, Top Dead Center Sensor
Fig 1: Test DR-10 Code 23 Schematic - 2.4L Top Dead Center Sensor
Fig 2: Test DR-10 Code 23 Flow Chart - 2.4L (1 of 2) Top Dead Center Sensor

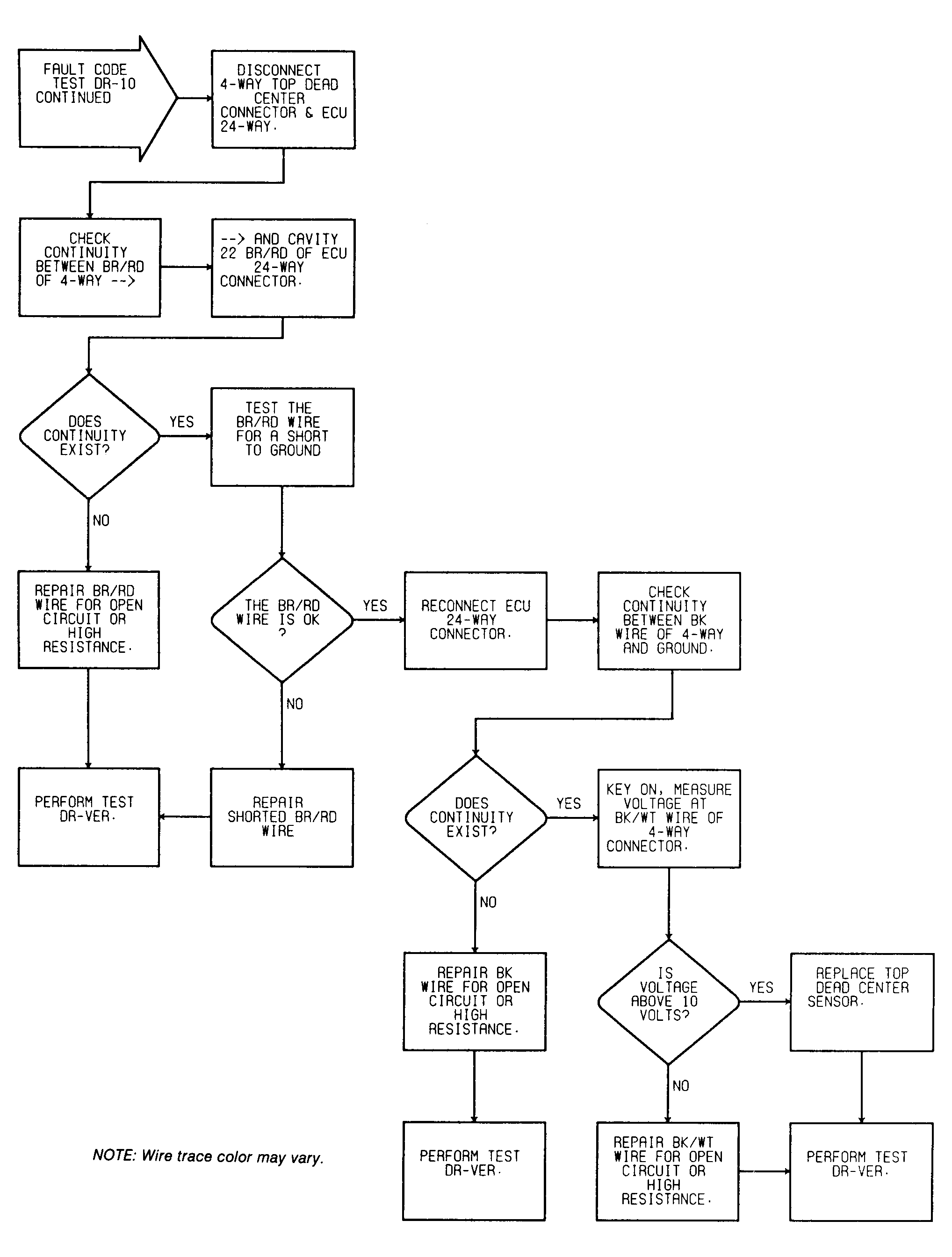

Fig 3: Test DR-10 Code 23 Flow Chart - 2.4L (2 of 2) Top Dead Center Sensor
