Remote Controlled Mirror Switch

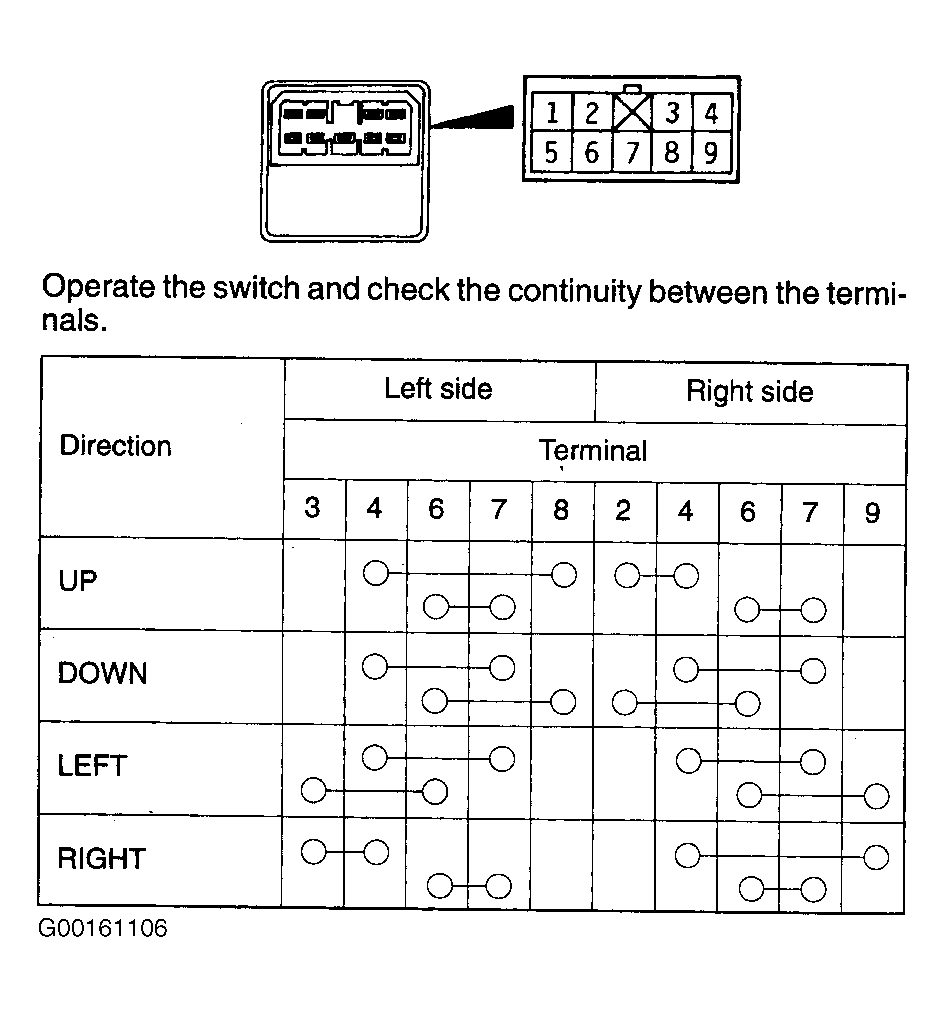

Fig 1: Testing Remote Controlled Mirror Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
