Power Window Switch Test

Remove control switch from trim panel. Using ohmmeter, check continuity of switch. See appropriate WINDOW SWITCH CONTINUITY CHART. See Fig 1 . Replace appropriate switch as necessary if switch continuity is not as specified.

MASTER WINDOW SWITCH CONTINUITY CHART

Switch Position ⁽¹⁾

Check Continuity Between

Normal Position

Left Front OFF

Pins 2, 3 & 6

Left Front UP

Pins 2 & 3; Pins 5 & 6

Left Front DOWN

Pins 2 & 5; Pins 3 & 6

Right Front OFF

Pins 1, 3 & 4

Right Front UP

Pins 1 & 3; Pins 4 & 5

Right DOWN

Pins 1 & 5; Pins 3 & 4

Lock Position

Left OFF

Pins 2, 3 & 6

Left UP

Pins 2 & 3; Pins 5 & 6

Left DOWN

Pins 2 & 5; Pins 3 & 6

Right OFF

Pins 1 & 4

Right UP

Pins 4 & 5

Right DOWN

Pins 1 & 5

⁽¹⁾	Left side of vehicle refers to driver's side.

PASSENGER SIDE WINDOW SWITCH CONTINUITY CHART

Switch Position	Check Continuity Between
OFF	Pins 2 & 4; Pins 3 & 5
UP	Pins 2 & 4; Pins 5 & 6
DOWN	Pins 3 & 5; Pins 4 & 6

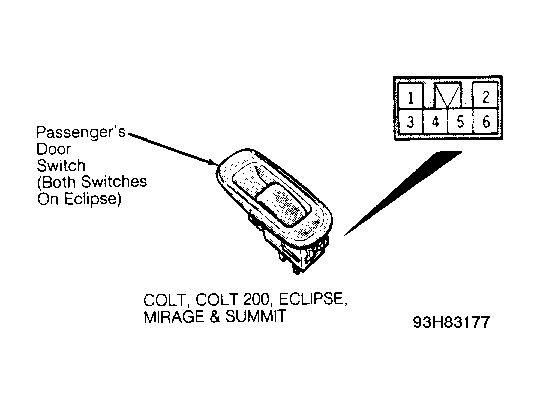

Fig 1: Power Window Switch Connector Terminal ID

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
