Component Replacement

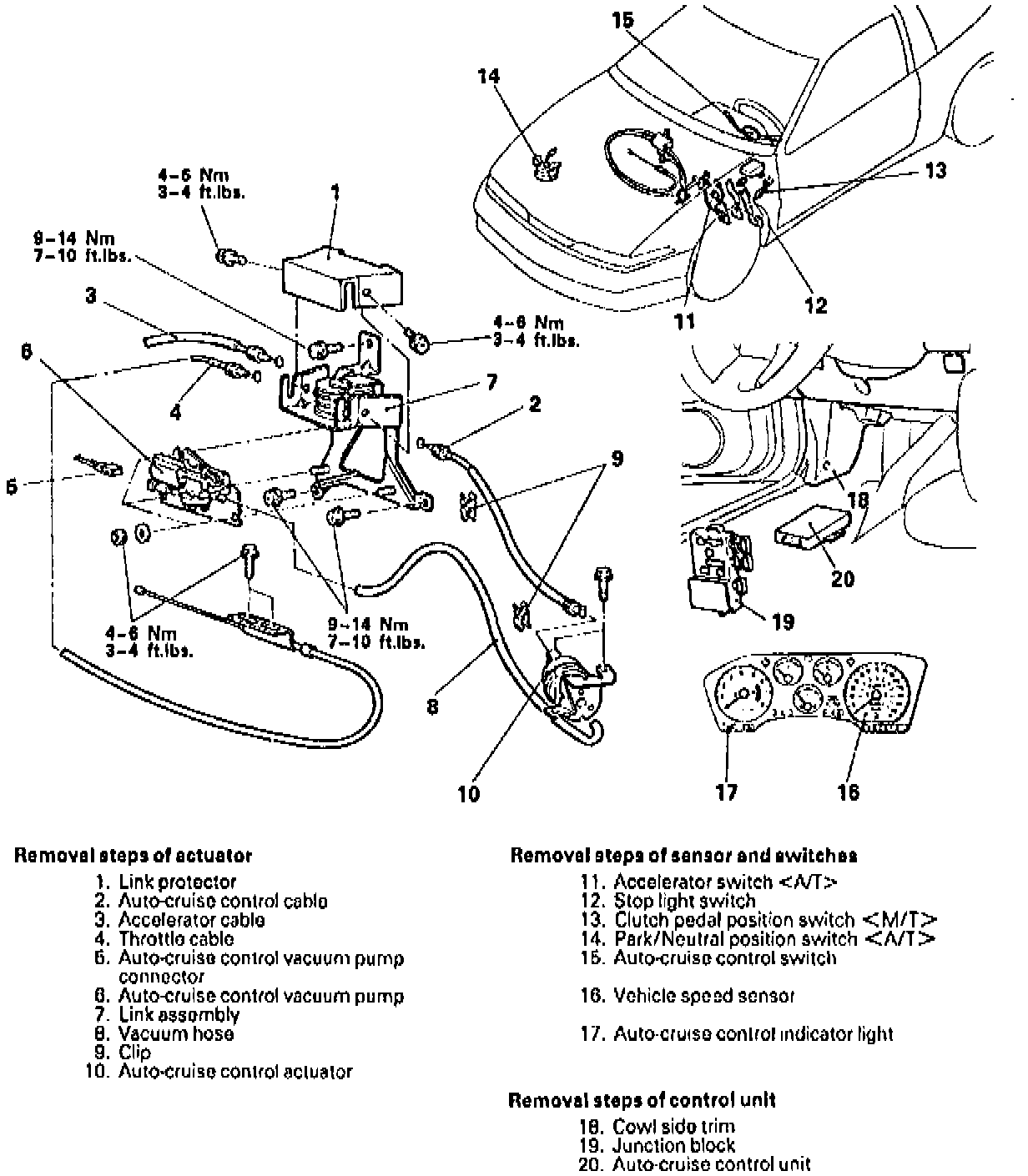

Fig. 39 Speed Control Component Replacement:




Refer to numbered sequences shown in Fig. 39 for component replacement.
