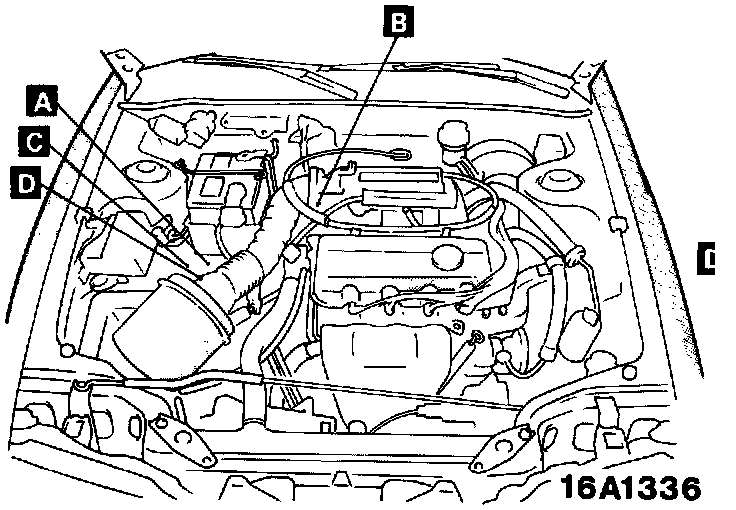

Transmission Control Systems: Locations

A. Pulse generator A and B
B. Throttle position sensor
C. Solenoid valves
D. Oil temperature sensor
E. Vehicle speed sensor
F. Data link connector
G. Power (PWR), Economy (ECO) select switch
H. Transaxle control module
I. Engine control module
