Power Circuits
Turn ignition on. Check for battery voltage on PCM power terminals. See POWER TERMINAL IDENTIFICATION table. If battery voltage is not present, check operation of MFI relay. See RELAYS under MOTORS, RELAYS & SOLENOIDS.
NOTE:
California and Federal applies to installed emissions equipment, which may be verified by underhood Emission Control label. California emissions may be available in other states.

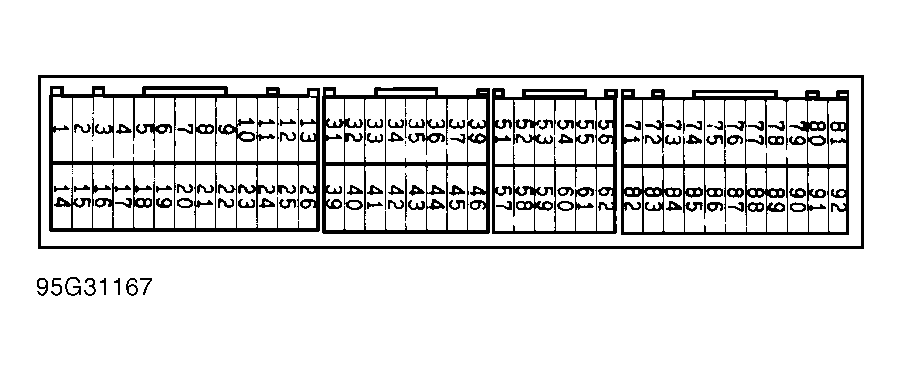

GROUND TERMINAL IDENTIFICATION
| Application | PCM Terminals No. |
|---|---|
| Eclipse Turbo | 13 & 26 |
POWER TERMINAL IDENTIFICATION
| Application | PCM Terminals No. |
|---|---|
| Eclipse Turbo | 12 & 25 |
POWERTRAIN CONTROL MODULE (PCM) LOCATION
| Application | Location |
|---|---|
| Eclipse Turbo | Behind Center Console |
