Crankshaft Position Sensor: Service and Repair

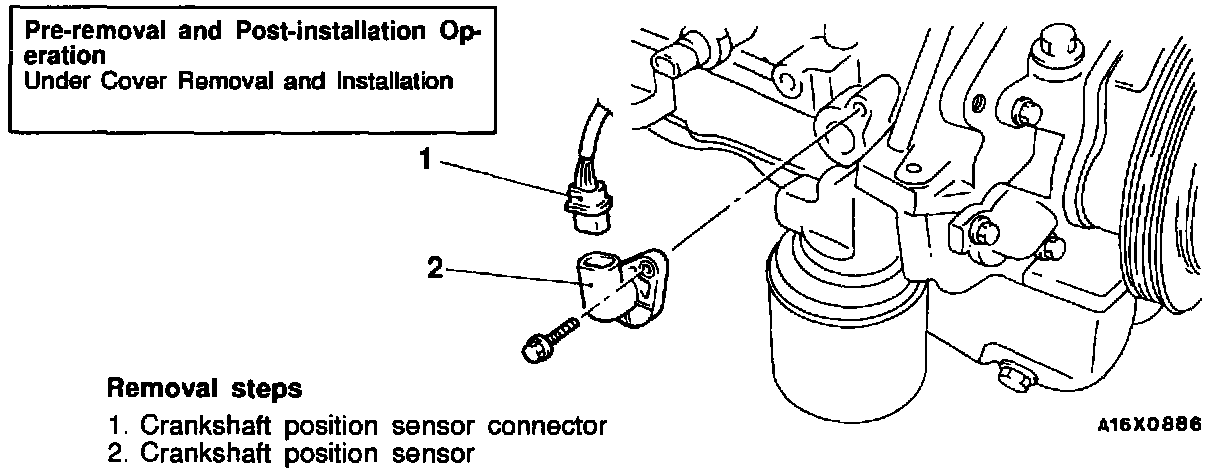

Crankshaft Position Sensor - Removal And Installation:





Pre-Removal
- Under cover

REMOVE
1. Crankshaft position sensor connector
2. Crankshaft position sensor

INSTALL
1. Crankshaft position sensor
2. Crankshaft position sensor connector


Post-Install
- Under cover
