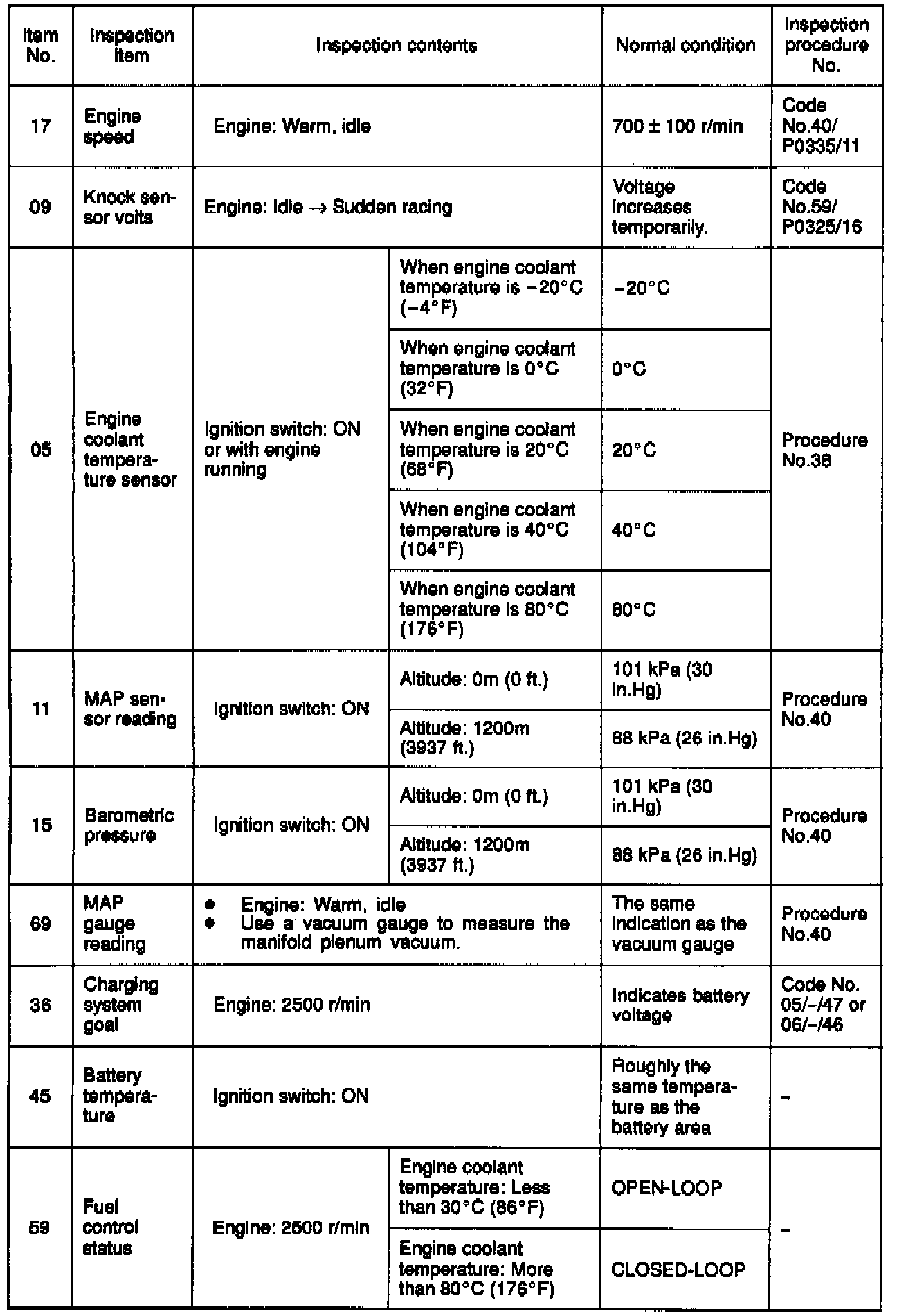

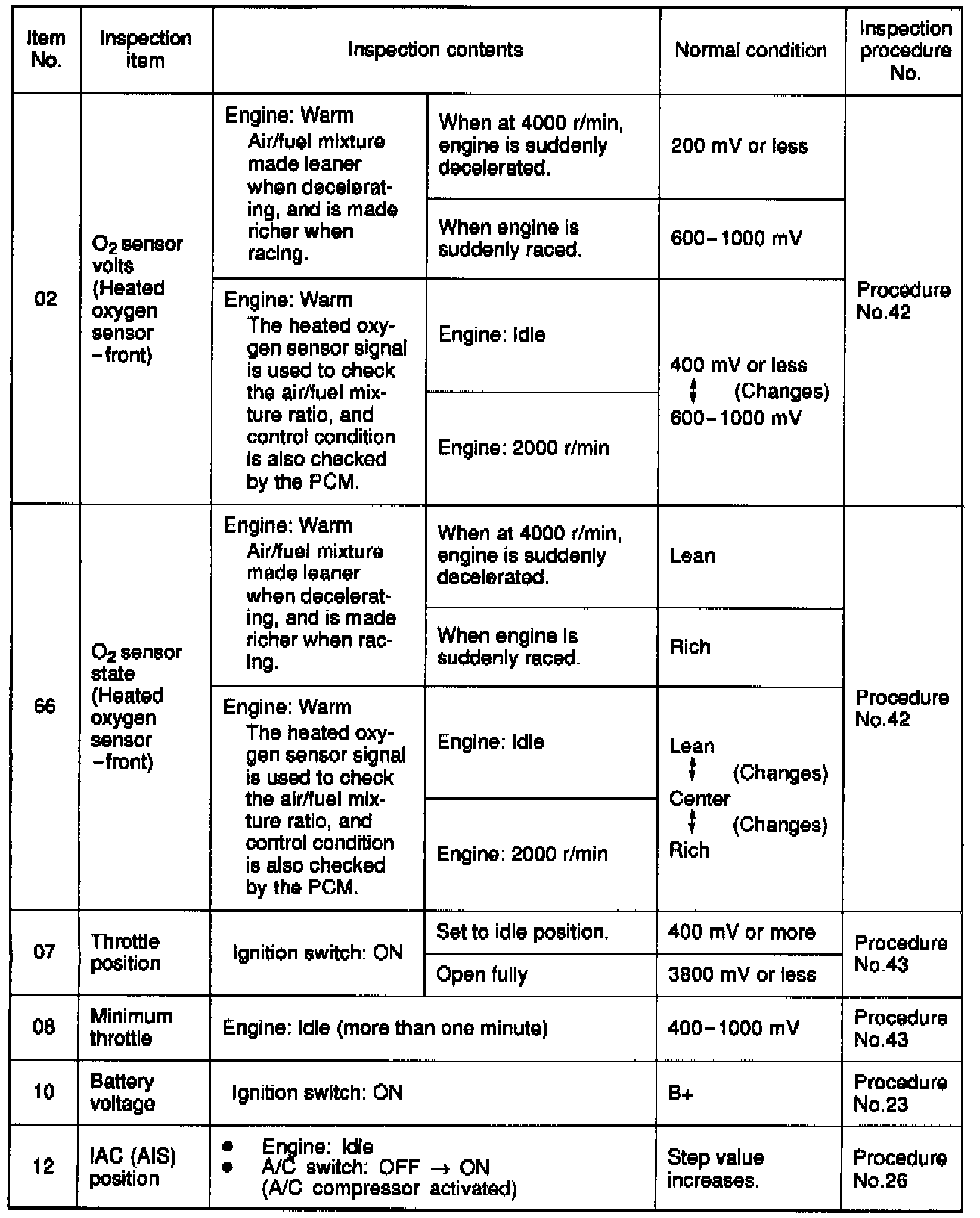

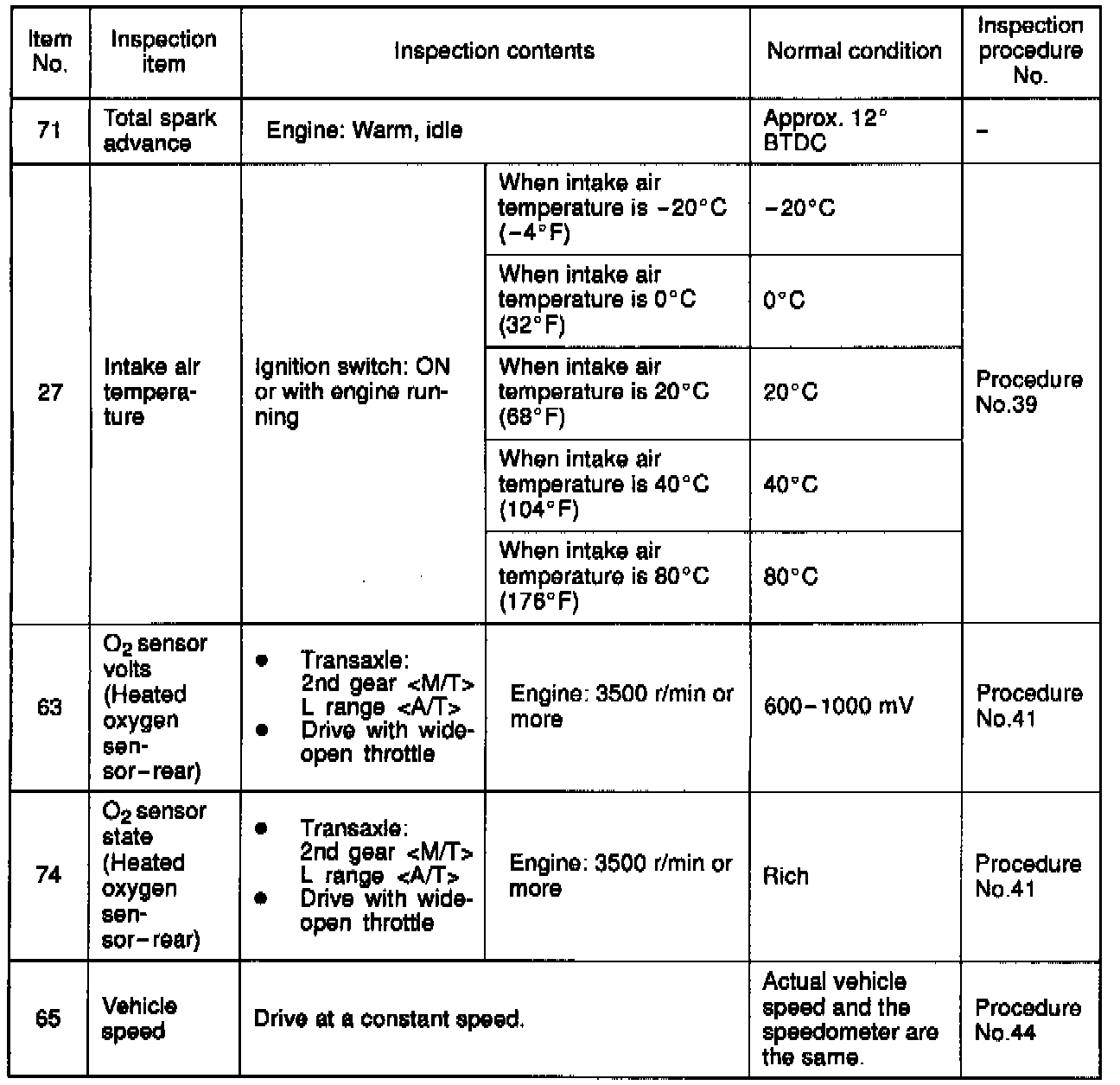

Scan Tool Testing and Procedures














CAUTION
1. When shifting the select lever to D range, the brakes should be applied so that the vehicle does not move toward.
2. When checking while driving the vehicle, always be sure to have two people riding in the vehicle.
