Remote Control Mirror Assembly

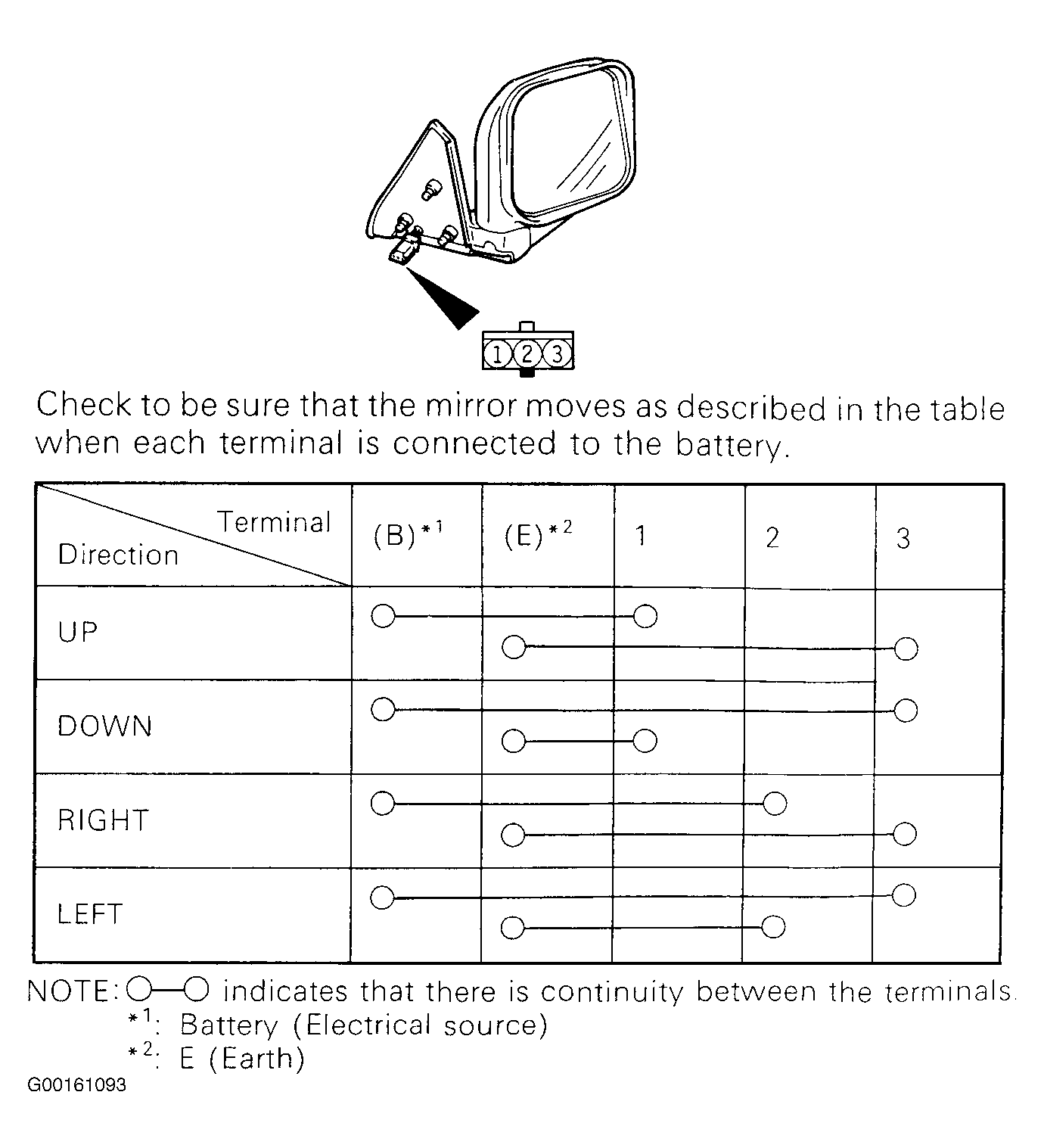

Fig 1: Testing Remote Control Mirror
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
