Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

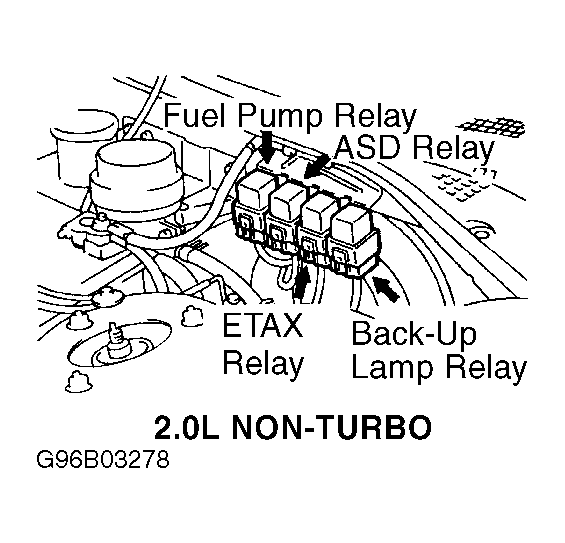

Fig 1: Left Rear Of Engine Compartment (2.0L Non-Turbo)

G96B03278

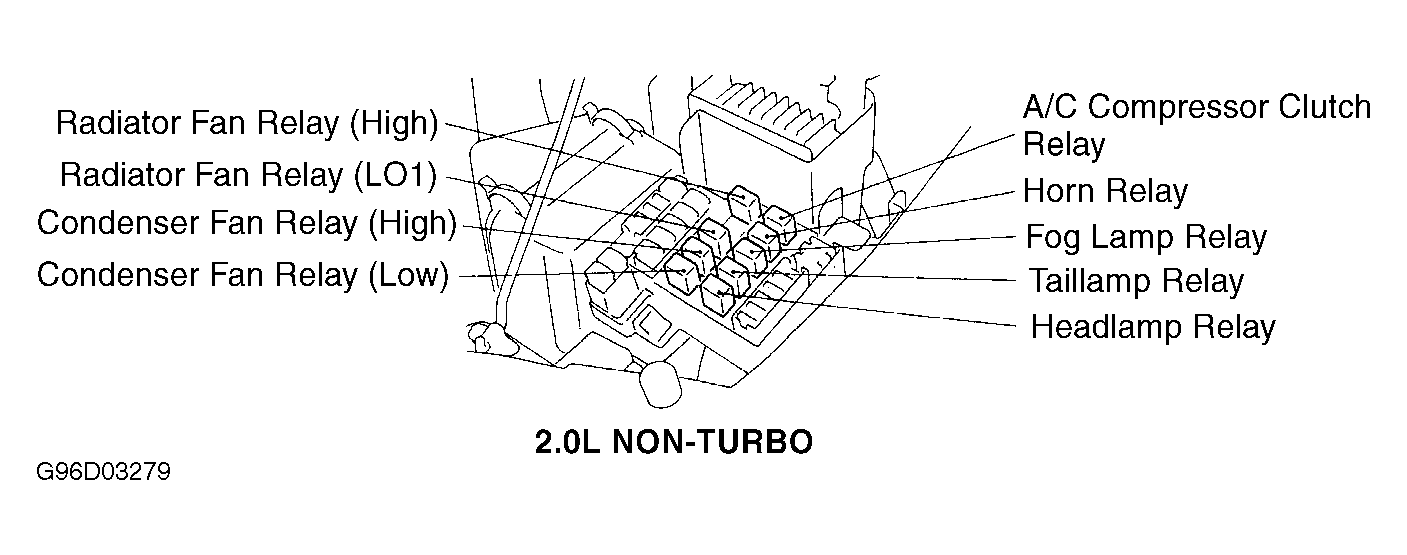

Fig 2: Left Side Of Engine Compartment (2.0L Non-Turbo)

G96D03279

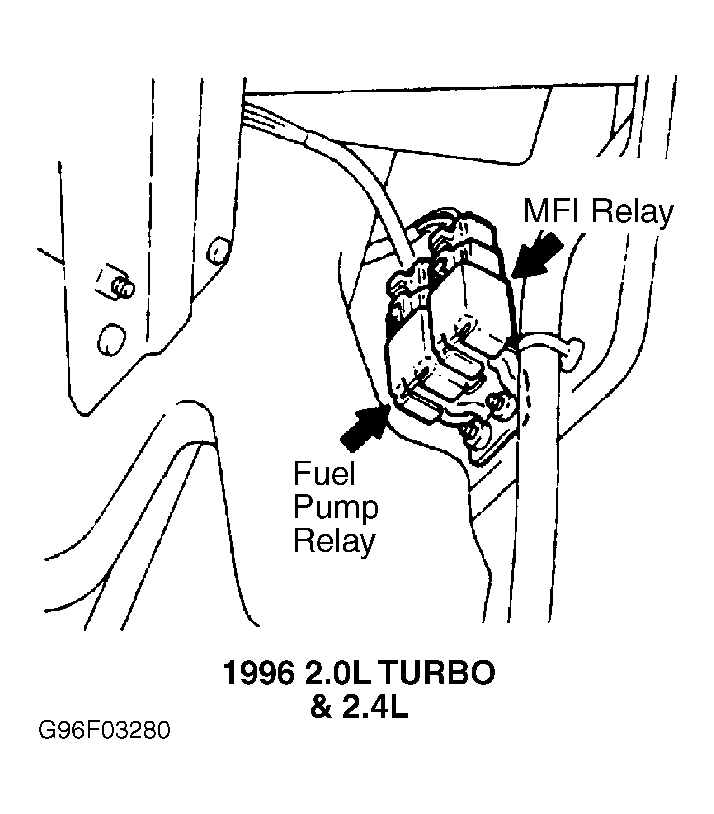

Fig 3: Center Of Dash (1996 2.0L Turbo & 2.4L)

G96F03280

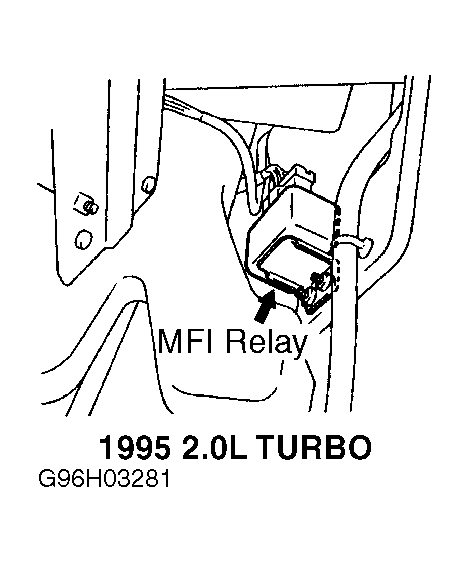

Fig 4: Center Of Dash (1995 2.0L Turbo)

G96H03281

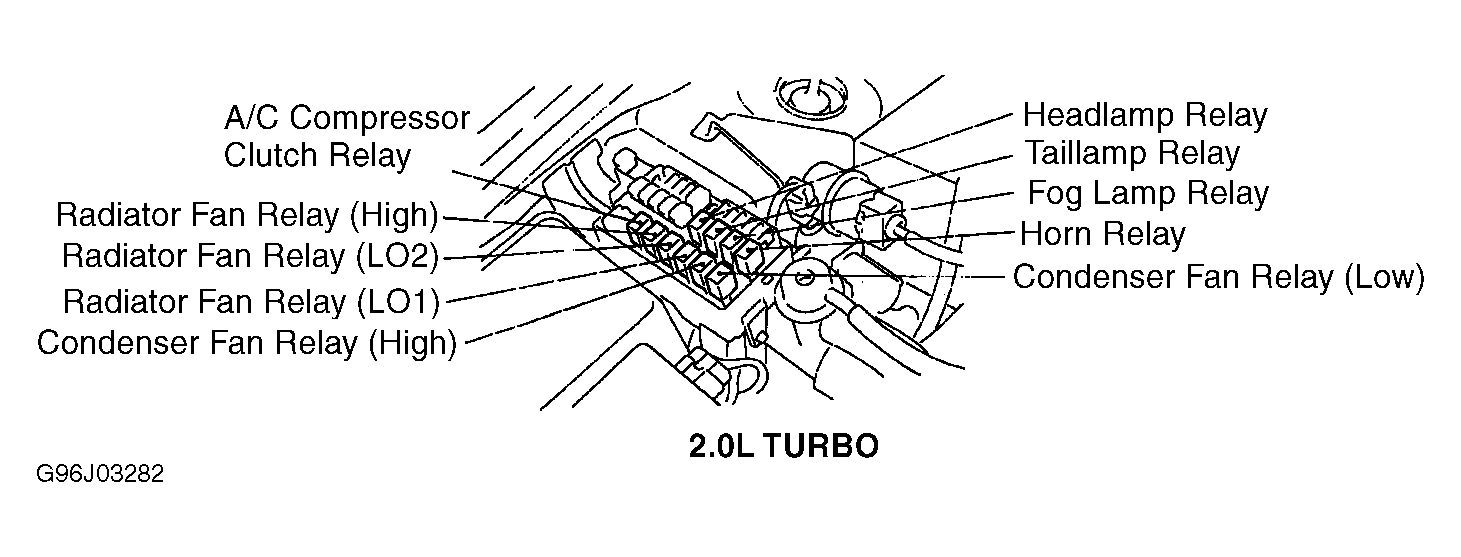

Fig 5: Right Side Of Engine Compartment (2.0L Turbo)

G96J03282

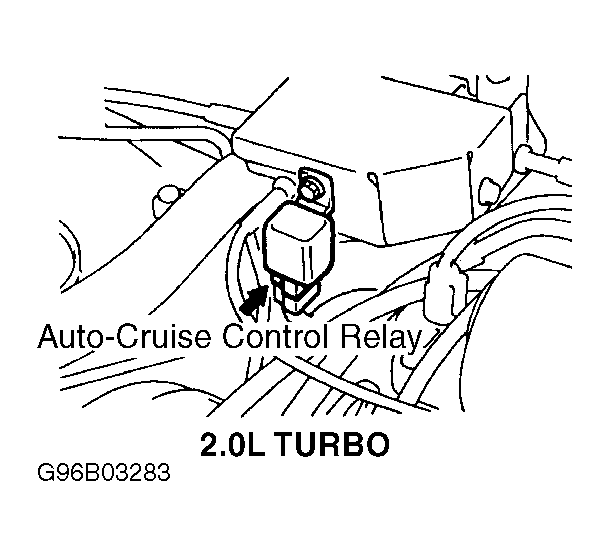

Fig 6: Right Rear Of Engine Compartment (2.0L Turbo)

G96B03283

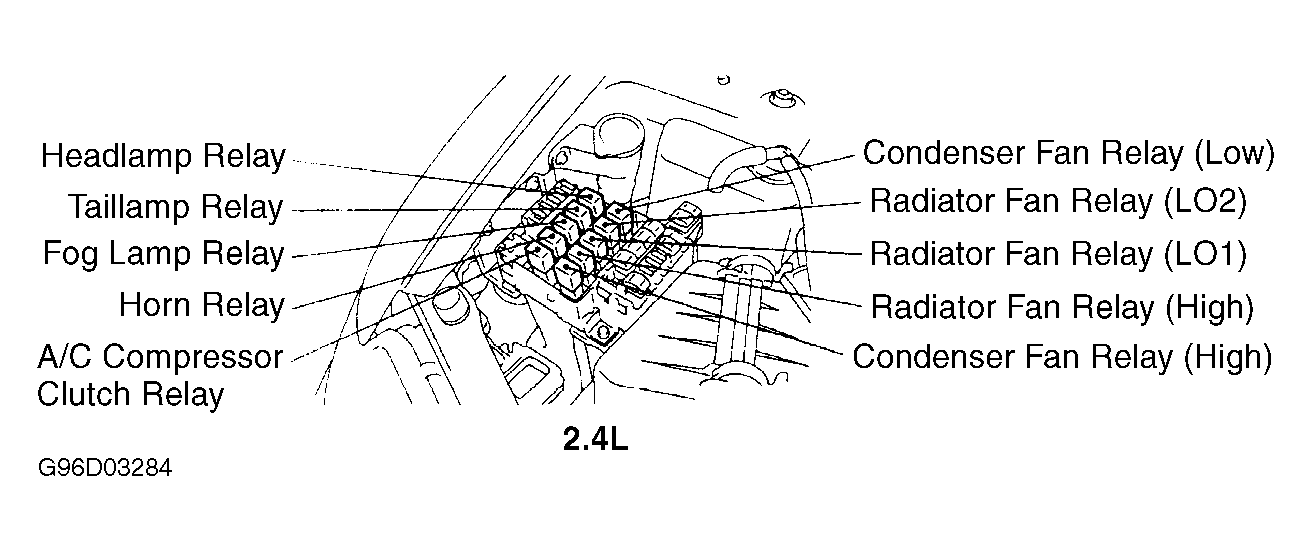

Fig 7: Right Side Of Engine Compartment (2.4L)

G96D03284

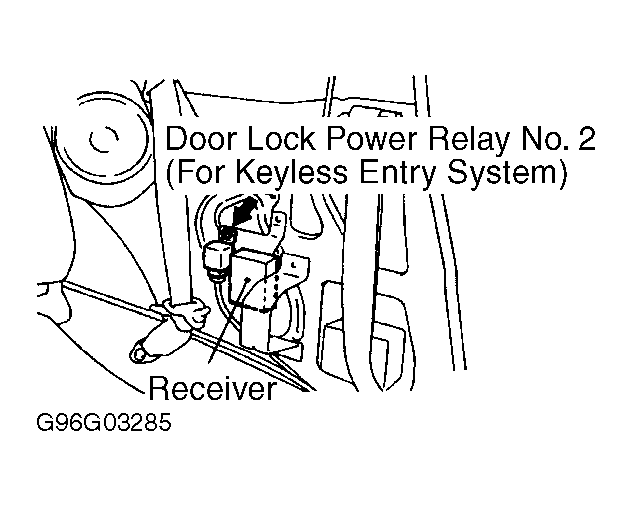

Fig 8: Left Rear Quarter Panel Trim

G96G03285

Fig 9: Left Side Of Dash

G96I03286

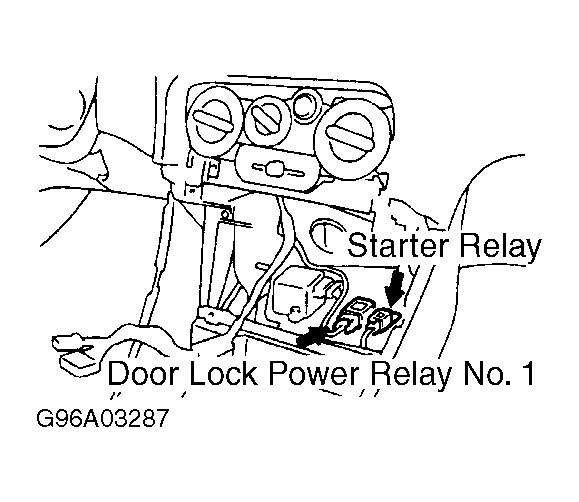

Fig 10: Center Of Dash

G96A03287

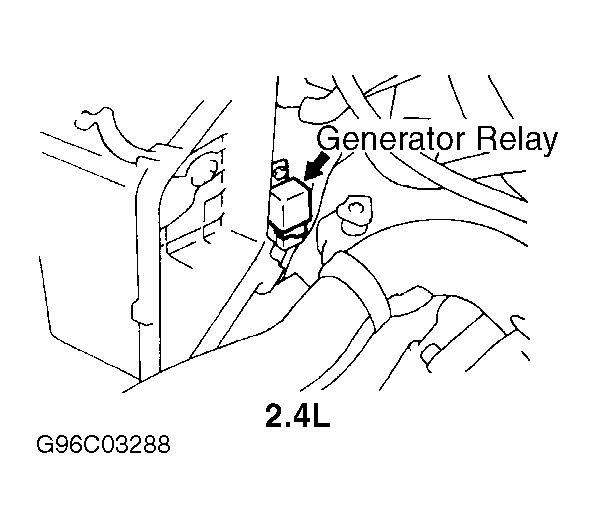

Fig 11: Right Side Of Engine Compartment (2.4L)

G96C03288

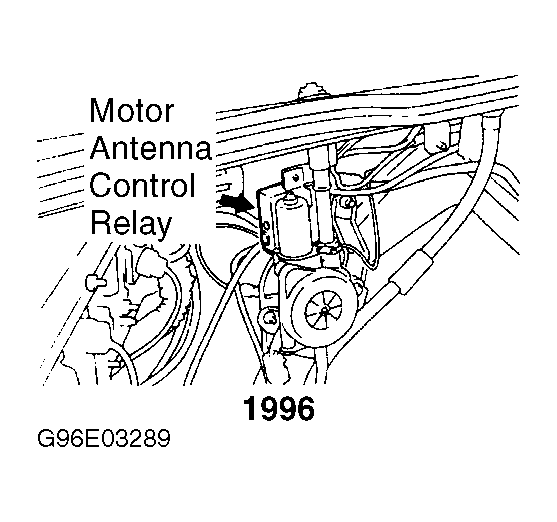

Fig 12: Left Side Of Luggage Compartment (1996)

G96E03289

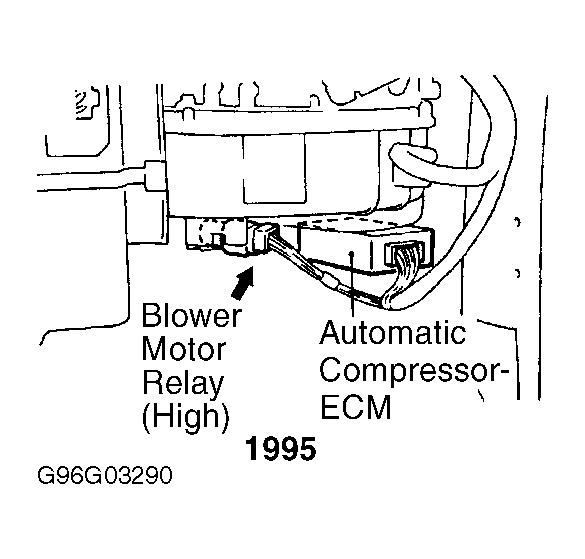

Fig 13: Right Side Of Dash (1995)

G96G03290

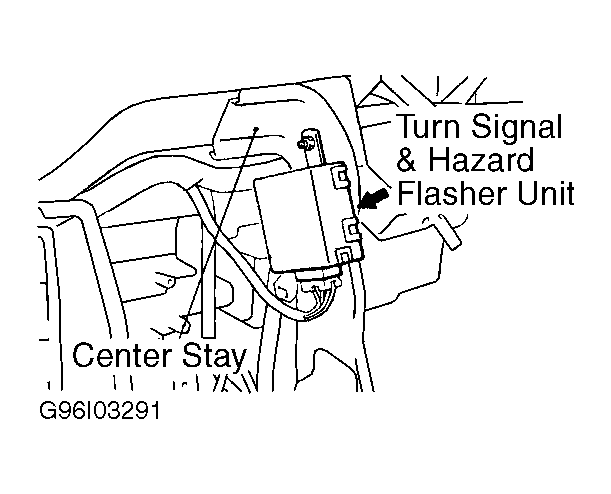

Fig 14: Center Of Dash

G96I03291

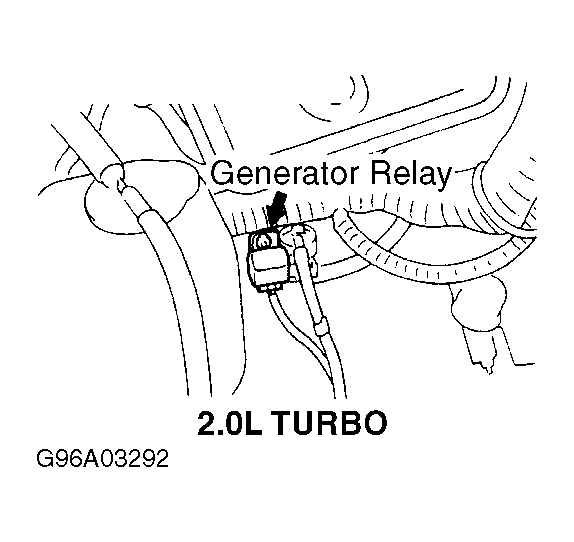

Fig 15: Right Side Of Engine Compartment (2.0L Turbo)

G96A03292

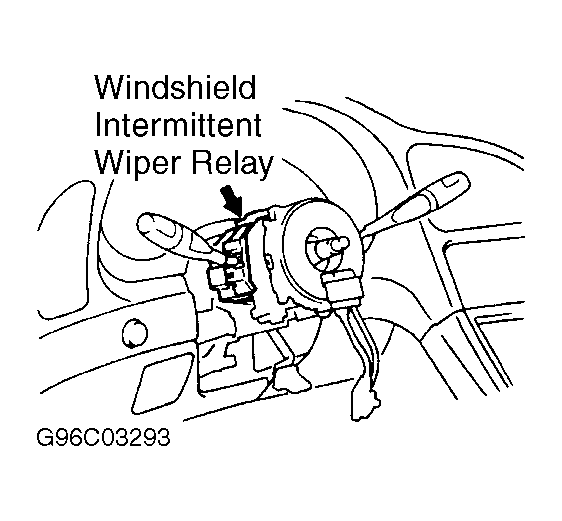

Fig 16: Top Of Steering Column

G96C03293

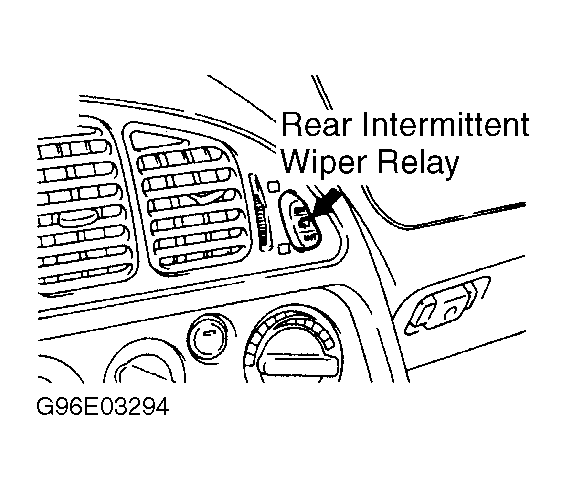

Fig 17: Center Of Dash

G96E03294

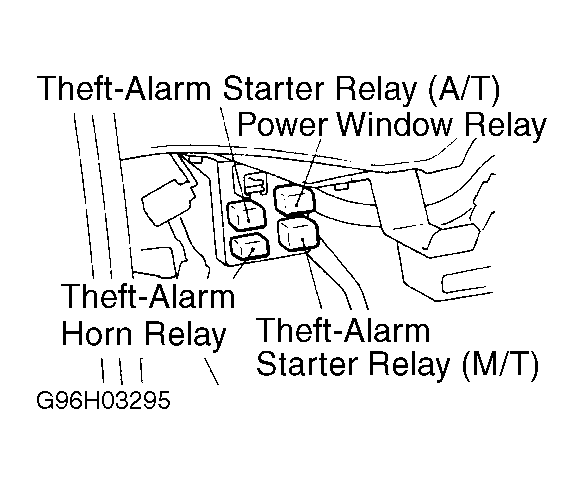

Fig 18: Left Side Of Dash

G96H03295

Fig 19: Right Side Of Dash

G96J03296

Fig 20: Left Side Of Dash

G96B03297

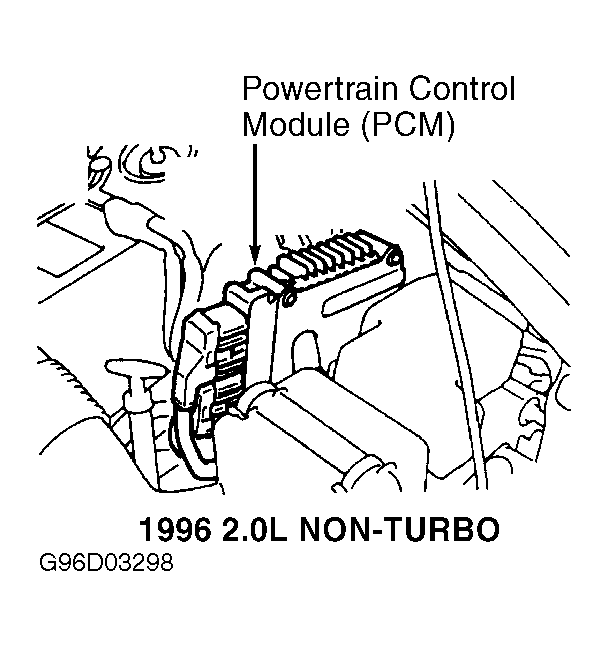

Fig 21: Left Side Of Engine Compartment (1996 2.0L Non-Turbo)

G96D03298

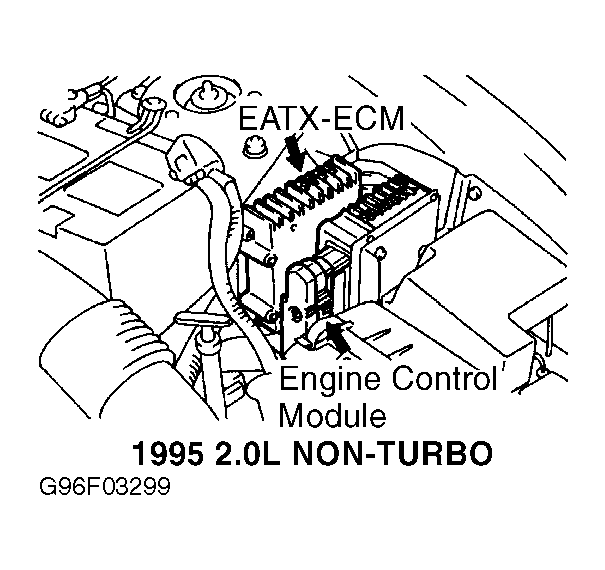

Fig 22: Left Side Of Engine Compartment (1995 2.0L Non-Turbo)

G96F03299

Fig 23: Center Of Dash (2.0L Turbo & 2.4L)

G96J03300

Fig 24: Center Of Dash

G96B03301

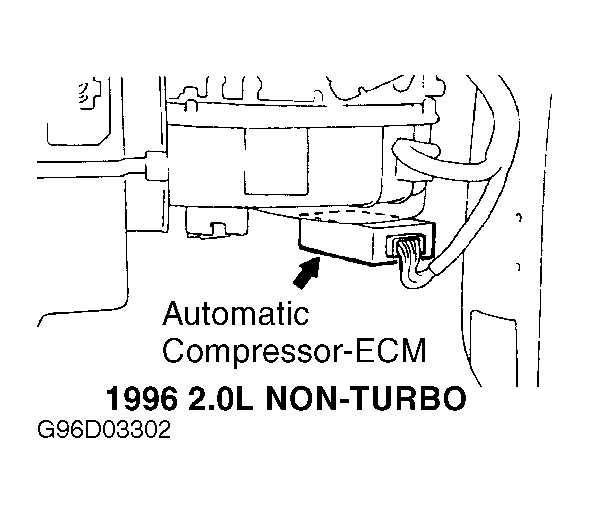

Fig 25: Right Side Of Dash (1996 2.0L Non-Turbo)

G96D03302

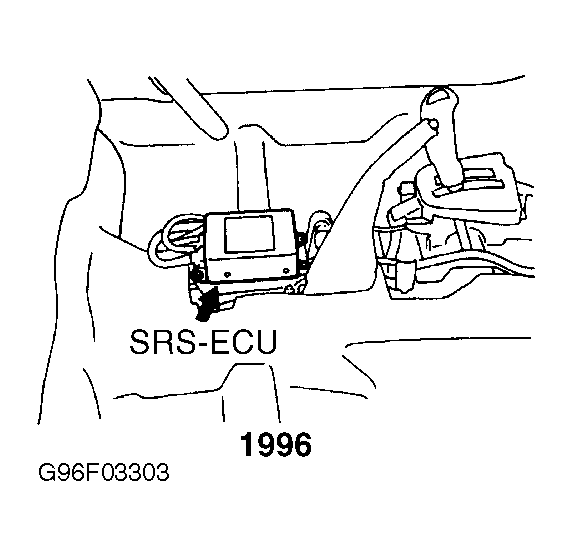

Fig 26: Center Floor (1996)

G96F03303

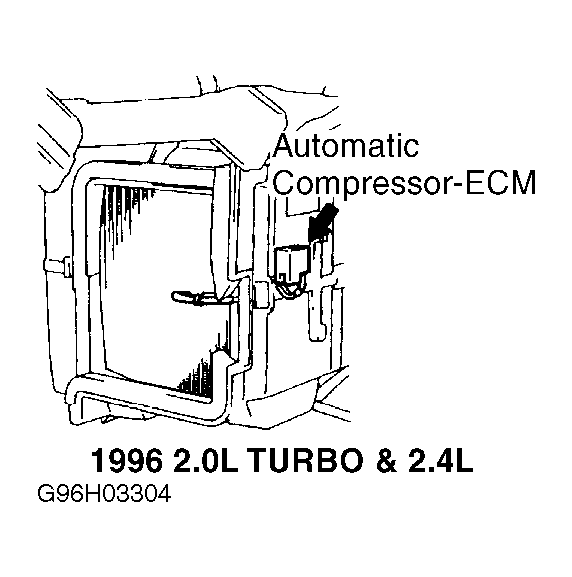

Fig 27: Right Side Of Dash (1996 2.0L Turbo & 2.4L)

G96H03304

Fig 28: Center Of Windshield Header

G96A03305

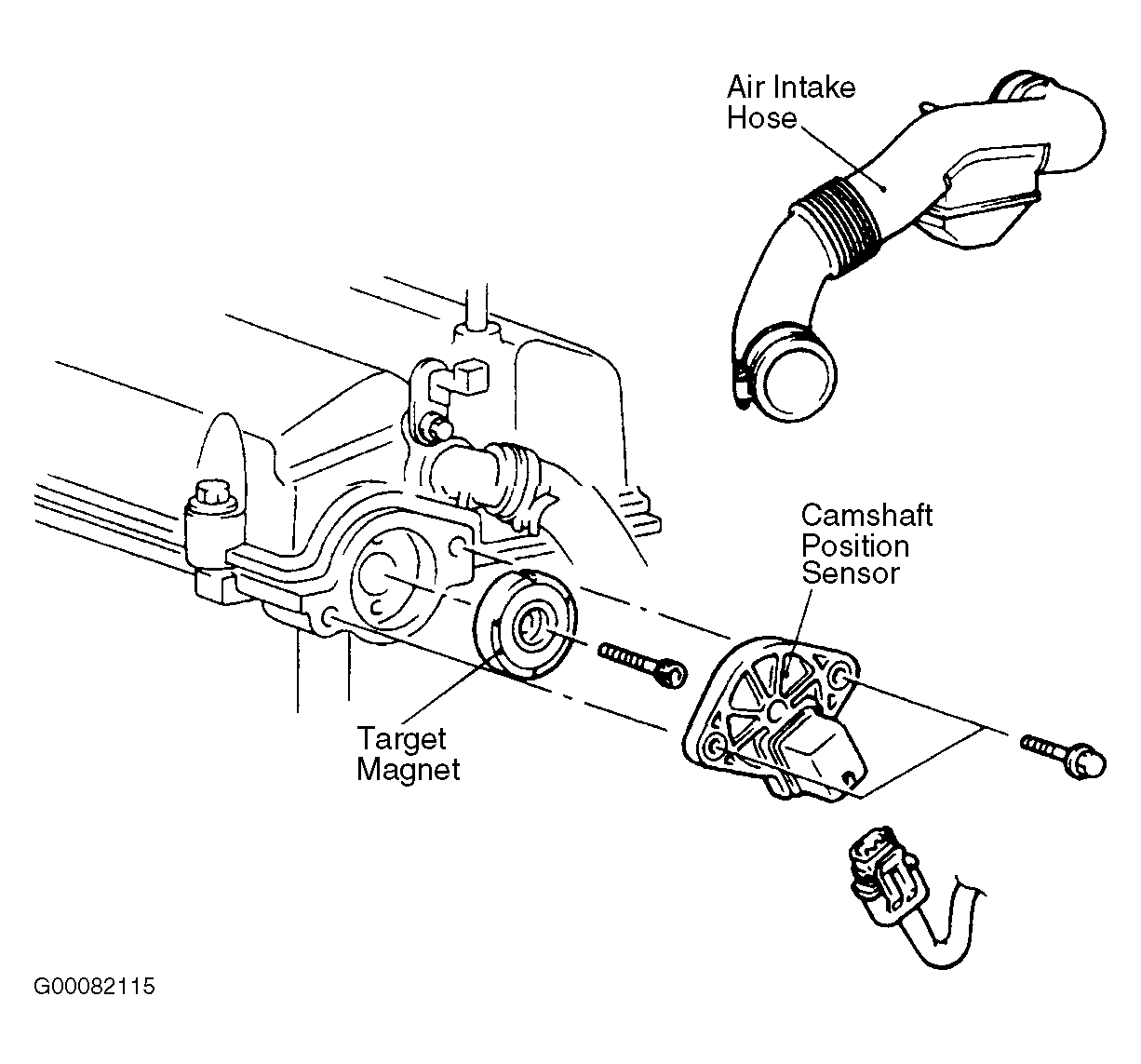

Fig 29: Locating Camshaft Position Sensor (2.0L Non-Turbo & Turbo)

G00082115

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

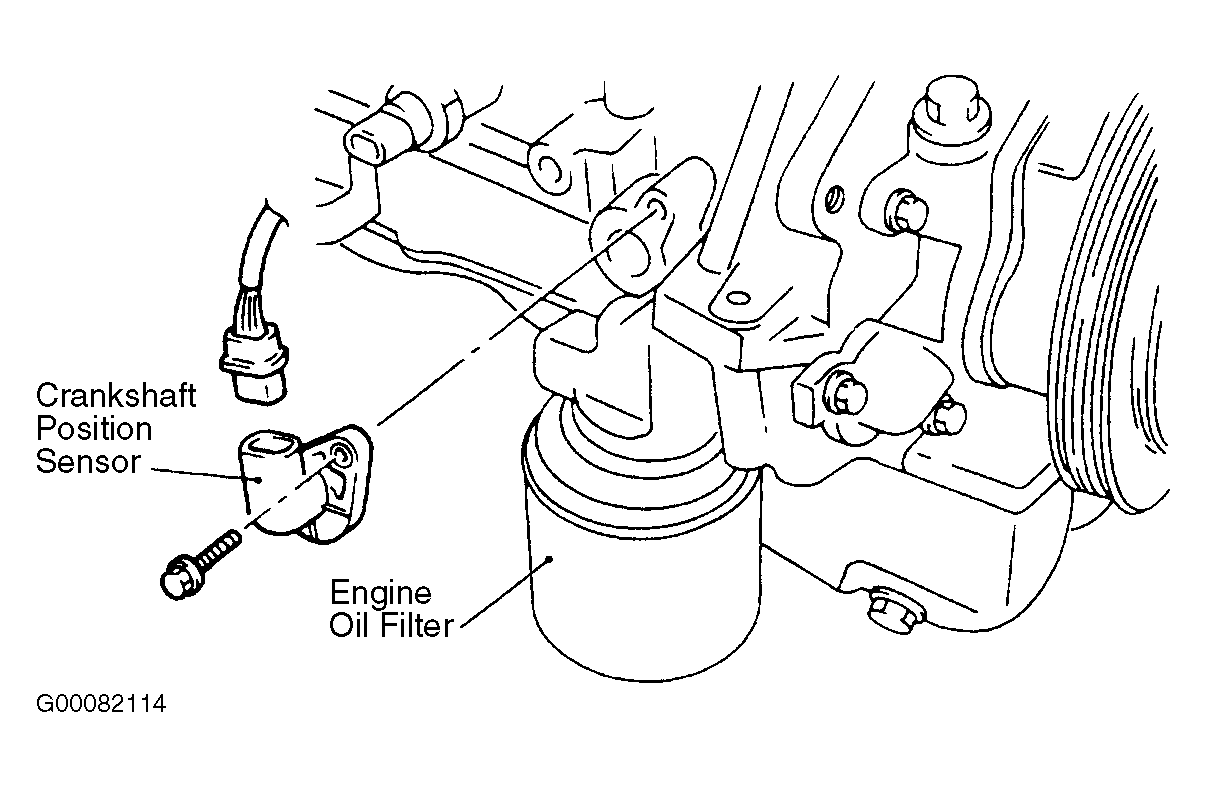

Fig 30: Locating Crankshaft Position Sensor (2.0L Non-Turbo)

G00082114

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 31: Right Side Of Dash

G96C03306

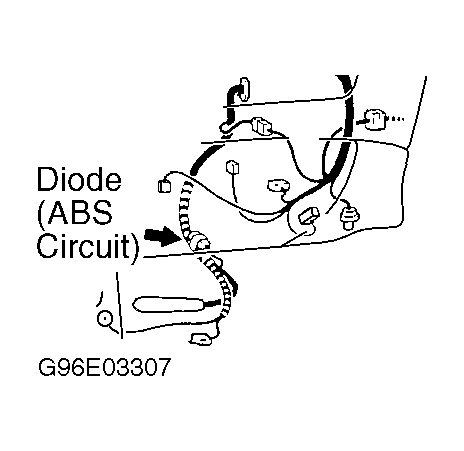

Fig 32: Right Side Of Dash

G96E03307

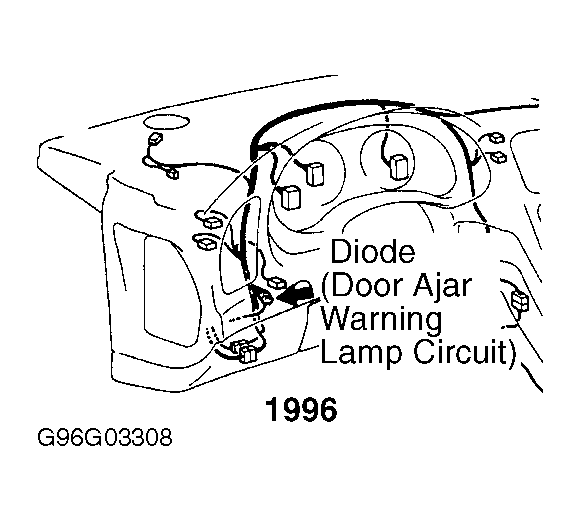

Fig 33: Left Side Of Dash (1996)

G96G03308

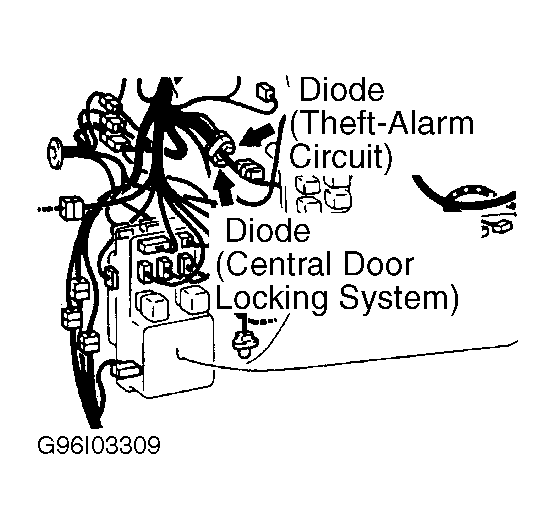

Fig 34: Left Side Of Dash

G96I03309

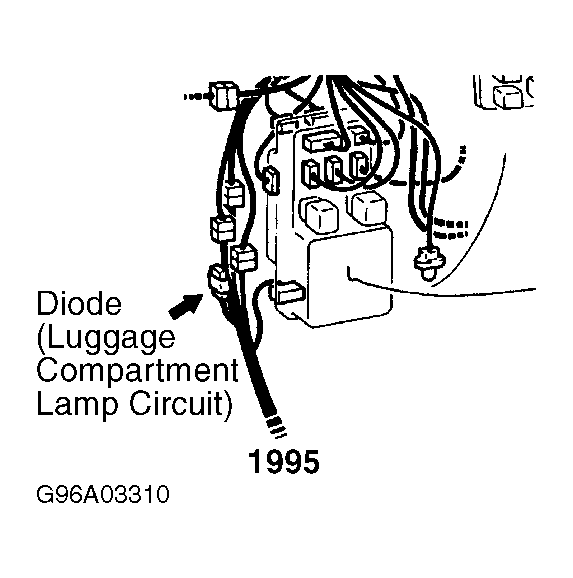

Fig 35: Left Side Of Dash (1995)

G96A03310

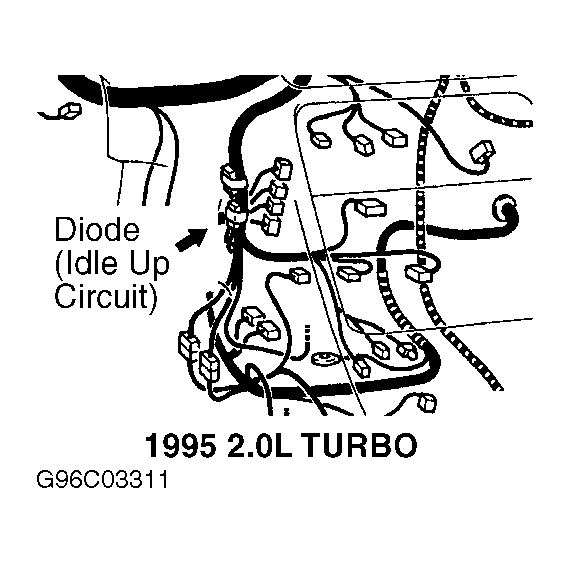

Fig 36: Center Of Dash (1995 2.0L Turbo)

G96C03311

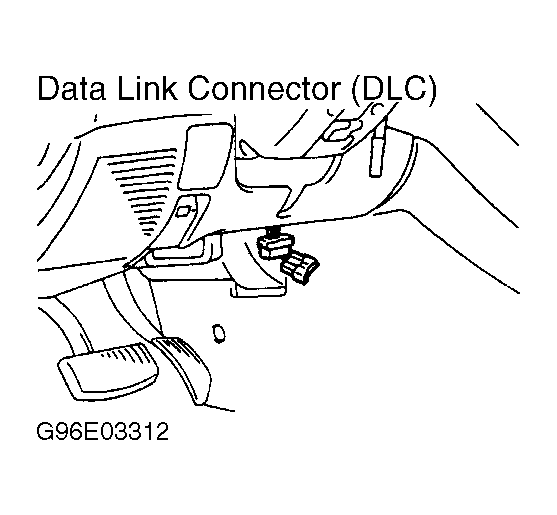

Fig 37: Lower Left Side Of Dash

G96E03312

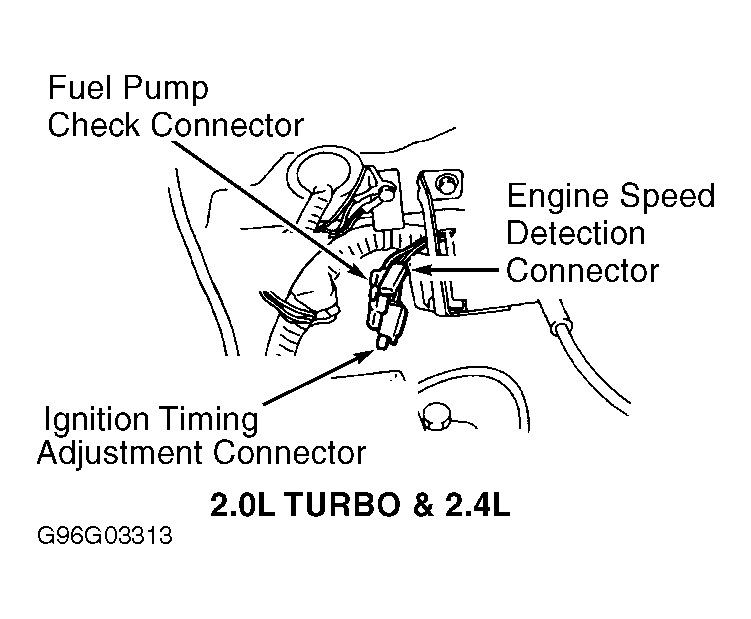

Fig 38: Right Side Of Firewall (2.0L Turbo & 2.4L)

G96G03313
