Trouble Shooting: Notes

NOTE: Verify power lock system is operating properly before trouble shooting system. See procedures in the DOOR LOCKS - POWER & KEYLESS ENTRY SYSTEM article under ACCESSORIES & EQUIPMENT. Ensure all component terminals and ground connections are clean and tight. Repair or replace components and circuits as necessary.

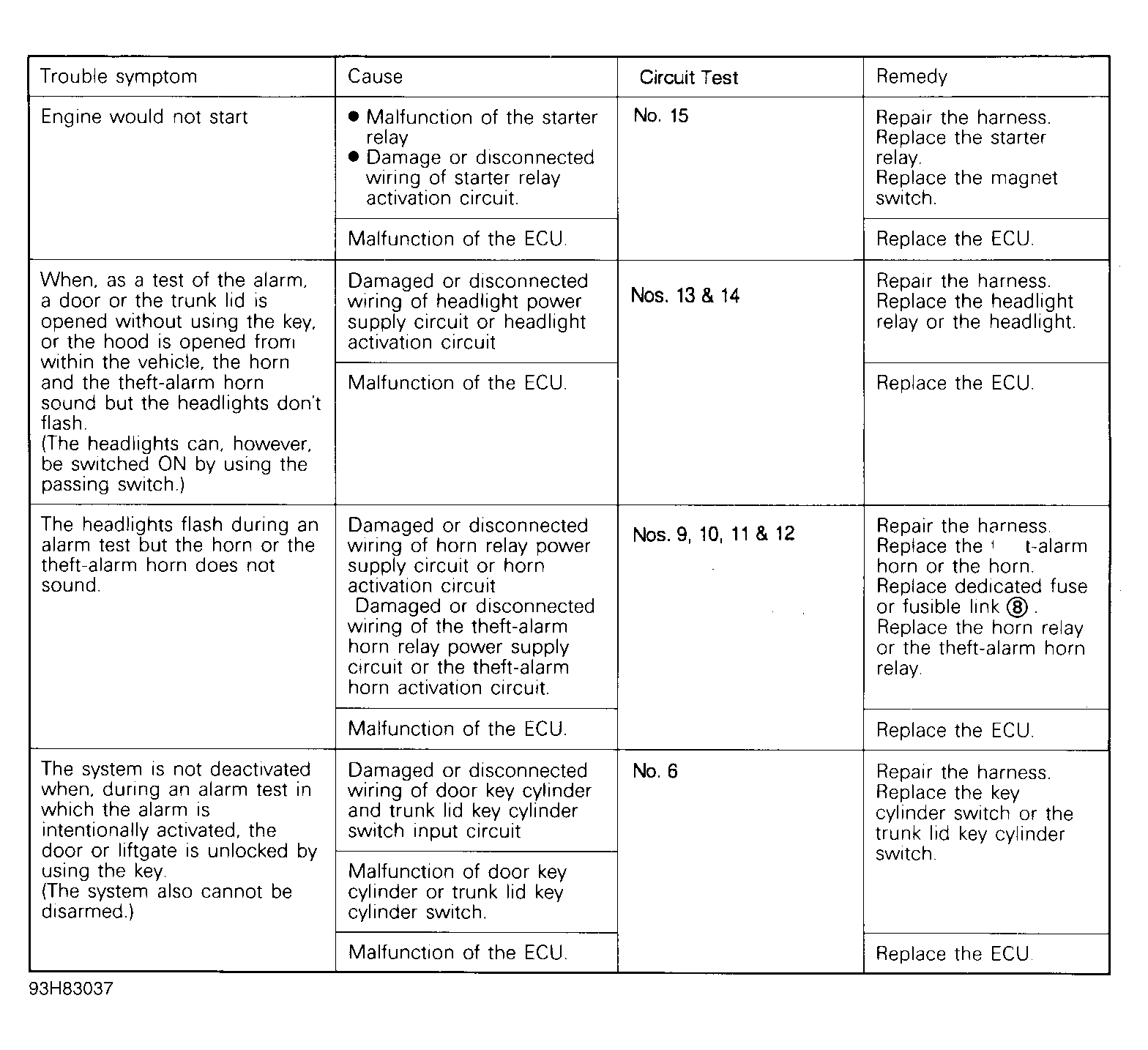

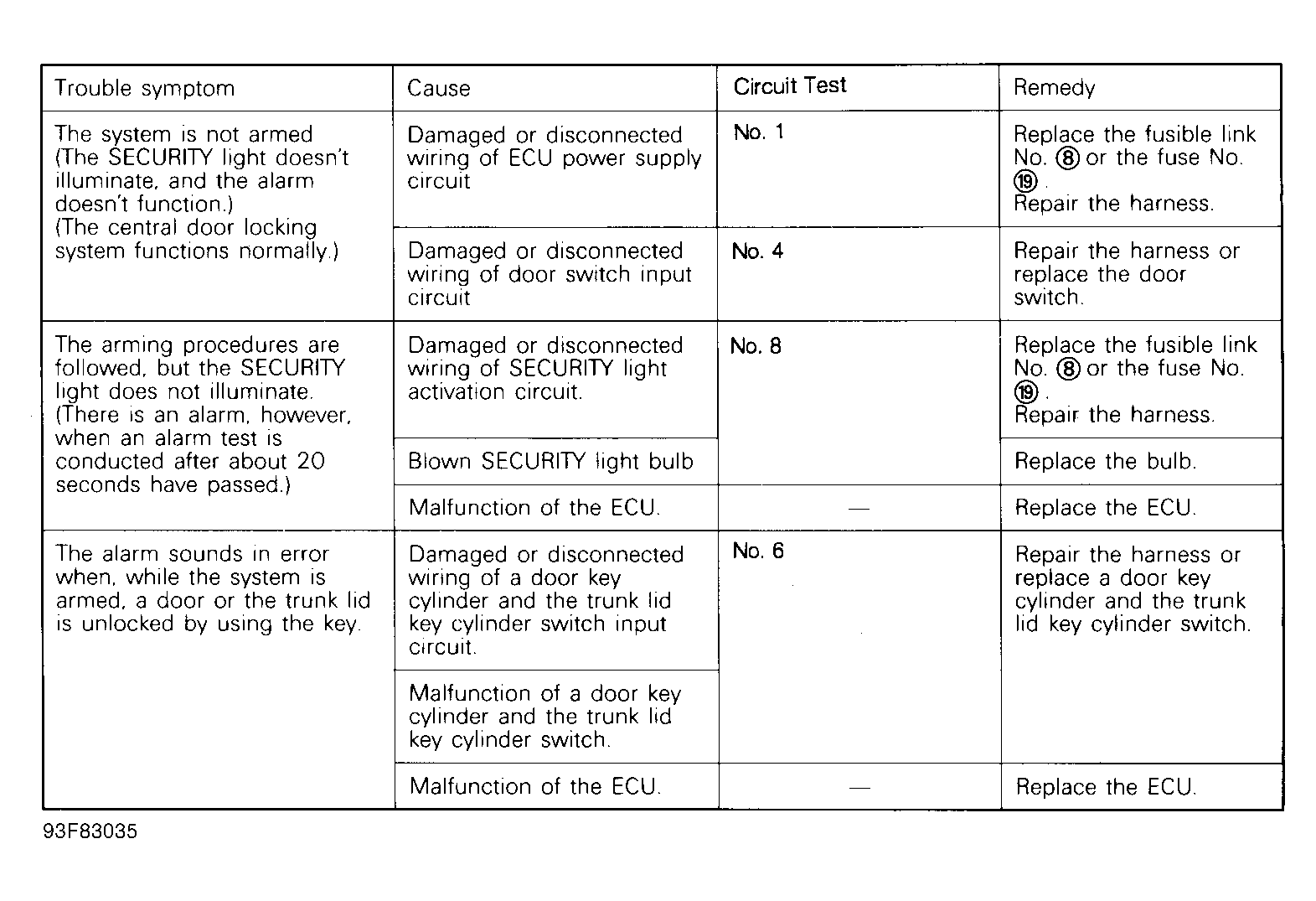

Trouble shooting anti-theft system is accomplished with diagnosis by symptom. Locate appropriate primary symptom under SYMPTOM CHARTS . SeeFigure -Figure . Refer to appropriate CIRCUIT TESTS under SYSTEM TESTS for diagnosing appropriate circuit.
