Power Window Switch

Remove control switch from trim panel. Using ohmmeter, check continuity of switch. See appropriate WINDOW SWITCH CONTINUITY TABLE. See Fig 1 or Fig 2 . Replace appropriate switch as necessary if switch continuity is not as specified.

MAIN WINDOW SWITCH CONTINUITY

Switch Position ⁽¹⁾

Check Continuity Between Pins No.

Normal Position

Left Front OFF

2, 6 & 9

Left Front UP

2 & 6; Pins 8 & 9

Left Front DOWN

2 & 9; Pins 6 & 8

Right Front OFF

3 & 7

Right Front UP

3 & 8

Right DOWN

7 & 8

Window Lock Position

Normal

2 & 3; 2 & 7

Lock

No Continuity

⁽¹⁾	Left side of vehicle refers to driver's side.

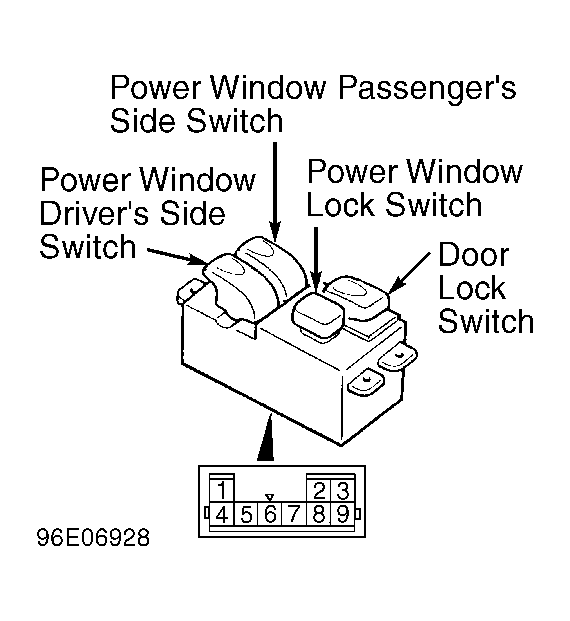

Fig 1: Main Switch Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

PASSENGER SIDE (SUB) WINDOW SWITCH CONTINUITY

Switch Position	Check Continuity Between Pins No.
OFF	1 & 4; Pins 2 & 3
UP	1 & 4; 3 & 6
DOWN	1 & 6; 2 & 3

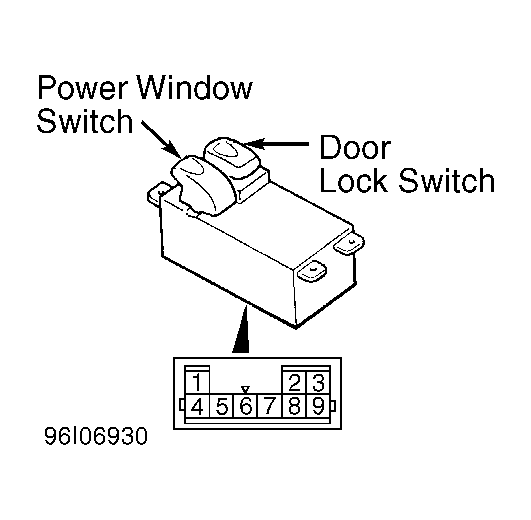

Fig 2: Sub Switch Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
