PCM Connector - Identification Revised

NO: TSB-97-13-004
DATE: April, 1997
MODEL: 1996 Eclipse 2.0L Non-Turbo

SUBJECT:
REVISED CONNECTOR AND TERMINAL NUMBERS(MFI TROUBLESHOOTING, 420A ENGINE)
- SERVICE MANUAL REVISION

[TSB Revision TSB-97-13-004]

PURPOSE
This bulletin revises various terminal and connector numbers in the 2.0L non-turbo (420A) engine MFI Troubleshooting section of the 1996 Eclipse Service Manual, Volume 1.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES
1996 Eclipse 2.0L Non-Turbo (420A Engine)

AFFECTED SERVICE MANUAL
1996 Eclipse Service Manual, Volume 1, Page 1 3A-53, 13A-68, and 13A-72

SERVICE MANUAL REVISION





1996 Eclipse Service Manual, Volume 1, Page 13A-53

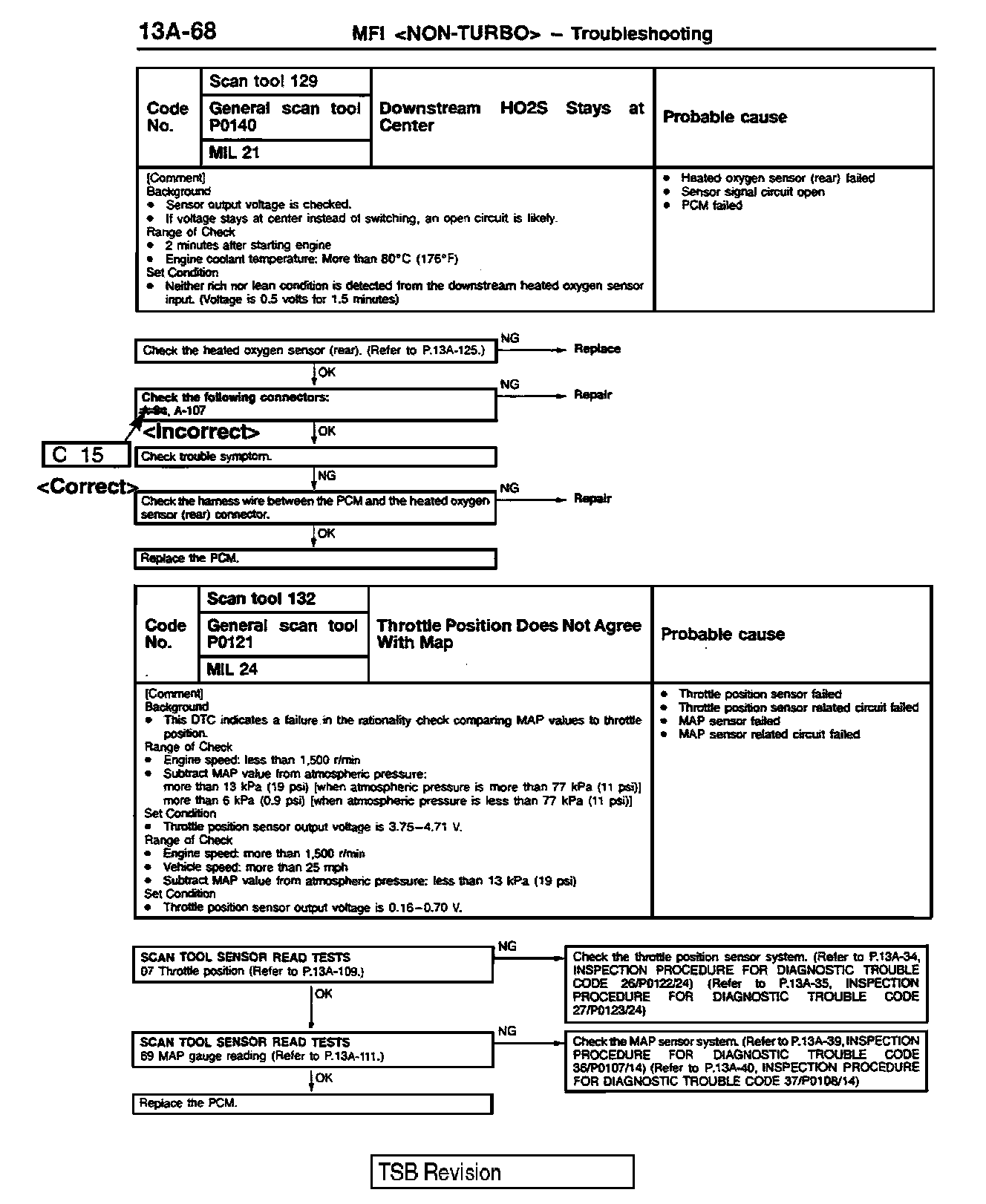

Correct the terminal and connector numbers as shown.





1996 Eclipse Service Manual, Volume 1, Page 13A-68

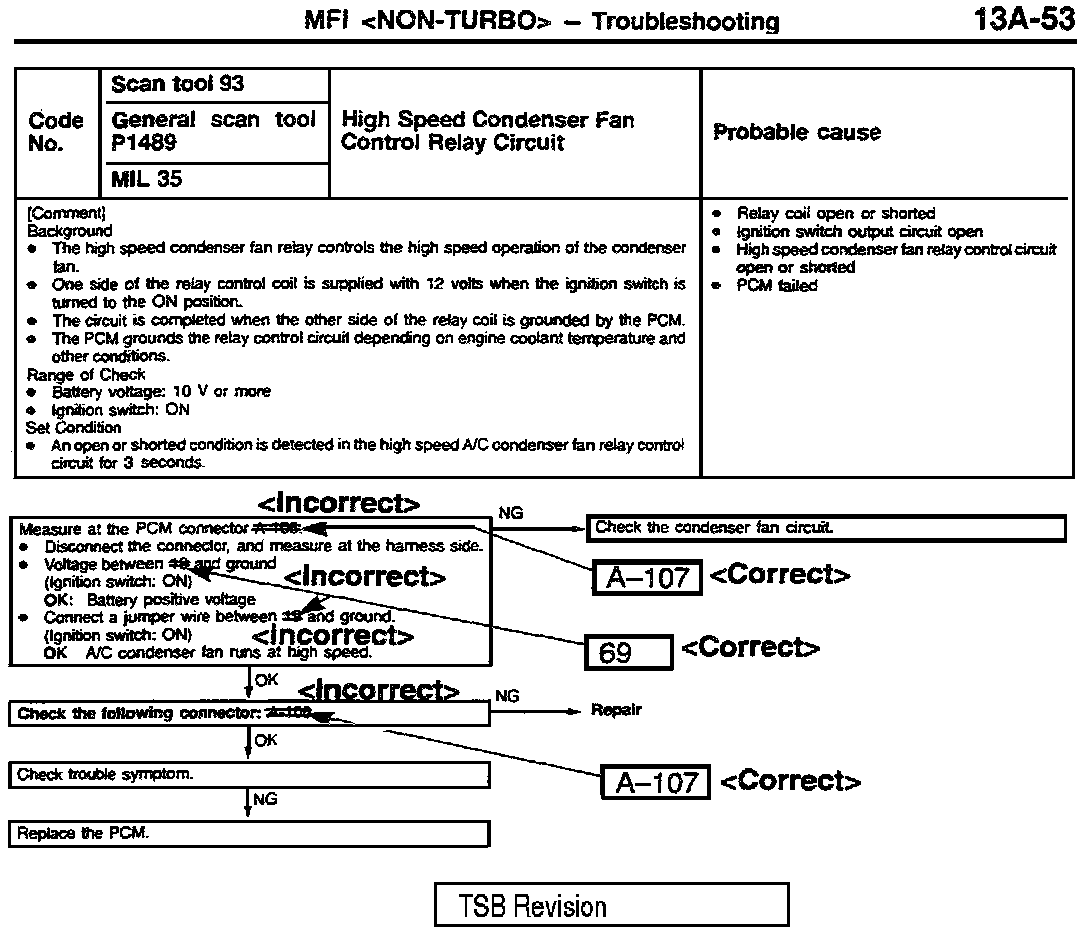

Correct the terminal and connector numbers as shown.





1996 Eclipse Service Manual, Volume 1, Page 13A-72

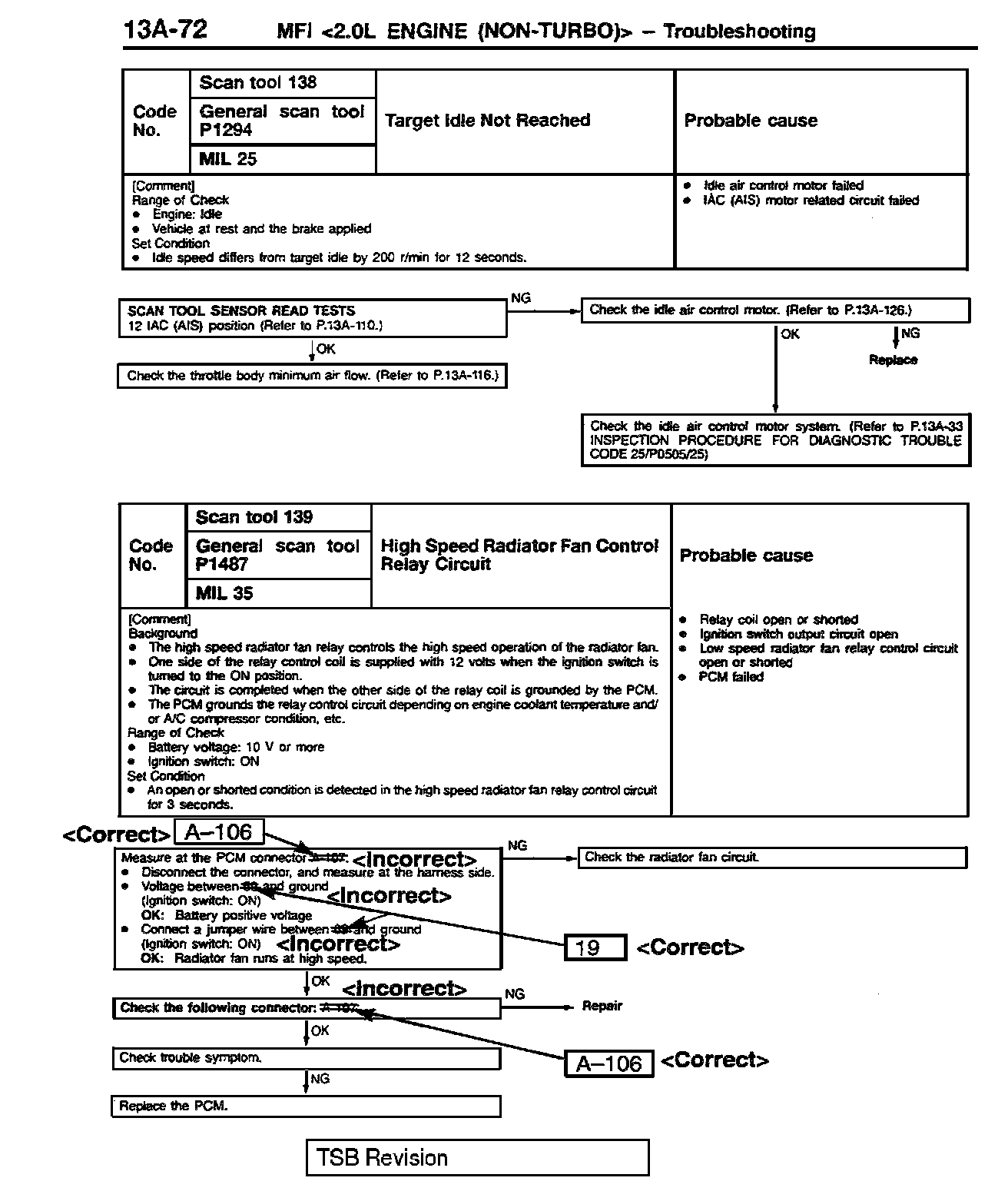

Correct the terminal and connector numbers as shown.
