Power Circuits

Turn ignition on. Check for battery voltage on both PCM power terminals. See Fig 1 . If battery voltage is not present, check operation of MFI relay. See RELAYS under MOTORS, RELAYS & SOLENOIDS.

POWERTRAIN CONTROL MODULE (PCM) LOCATION

Application	Location
Eclipse (Non-Turbo)	Left Side Of Engine Compartment, Near Battery
All Others	Behind Right Side Of Instrument Panel (Glove Box)

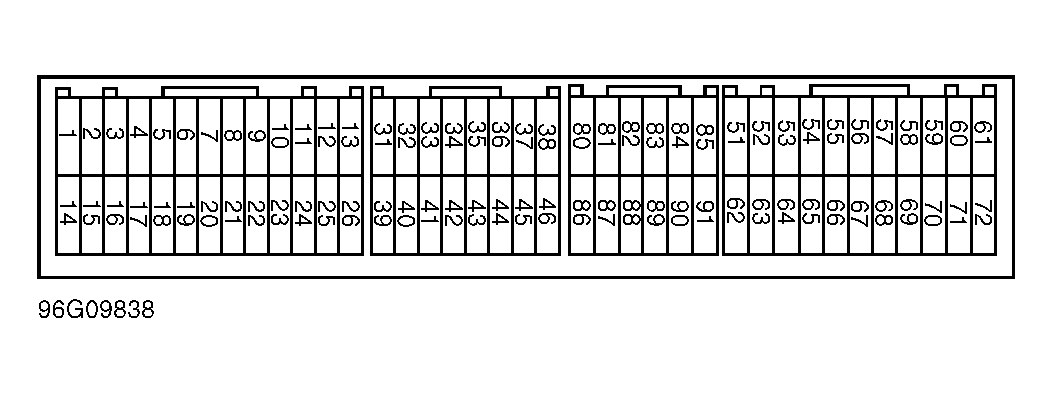

Fig 1: Idebtifying PCM Terminals (Eclipse 2.4L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 2: Identifying PCM Terminals (Galant)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 3: Identifying PCM Terminals (Pickup)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 4: Identifying PCM Terminals (Summit Wagon)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
