Fluid Level Check

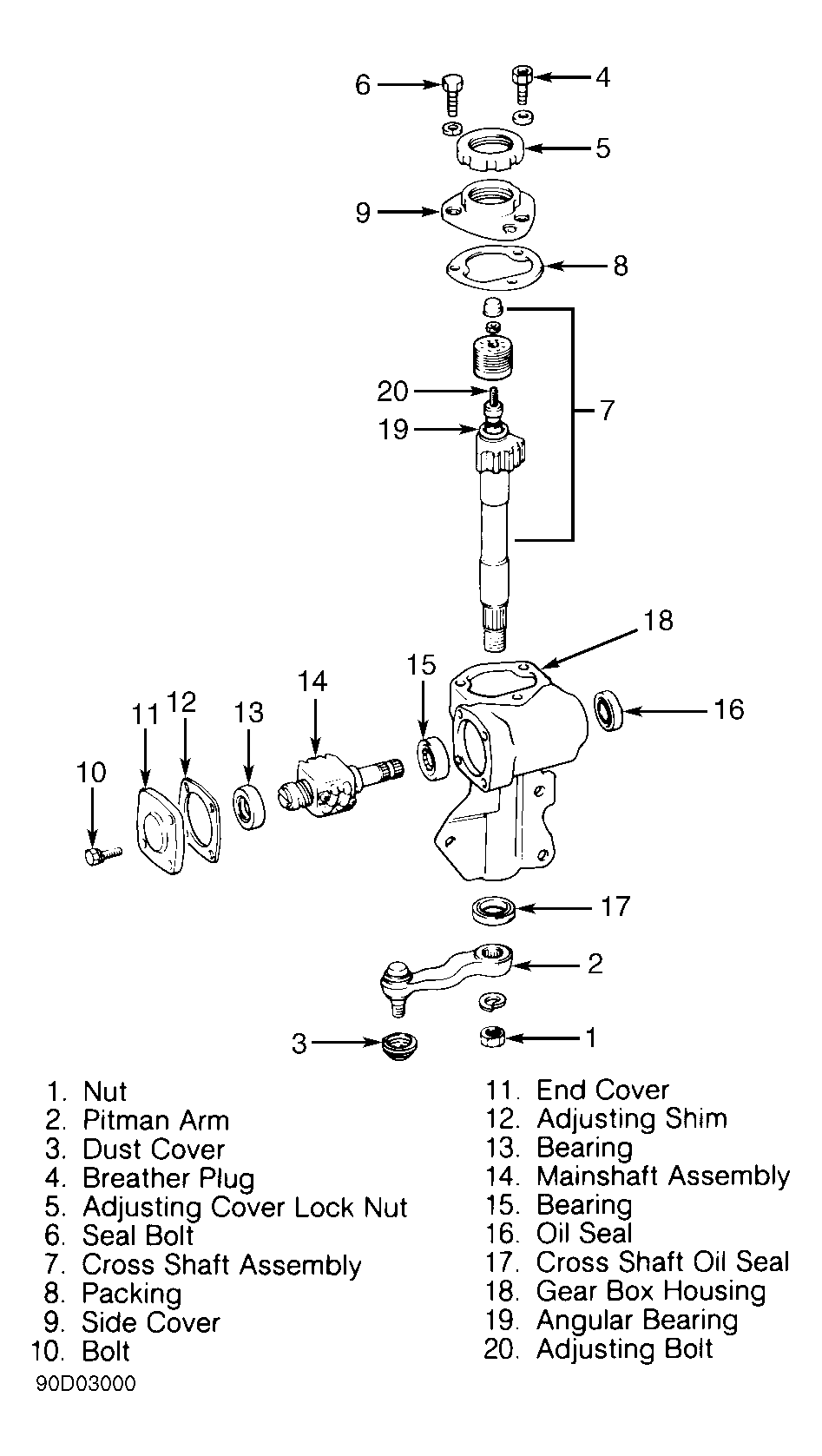

Remove breather plug. Check oil level through breather plug hole. See Figure . Proper level from hole is 1.4" (35 mm). Fluid capacity is .50 pt. (.2L).
