Firing Order
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Firing Order

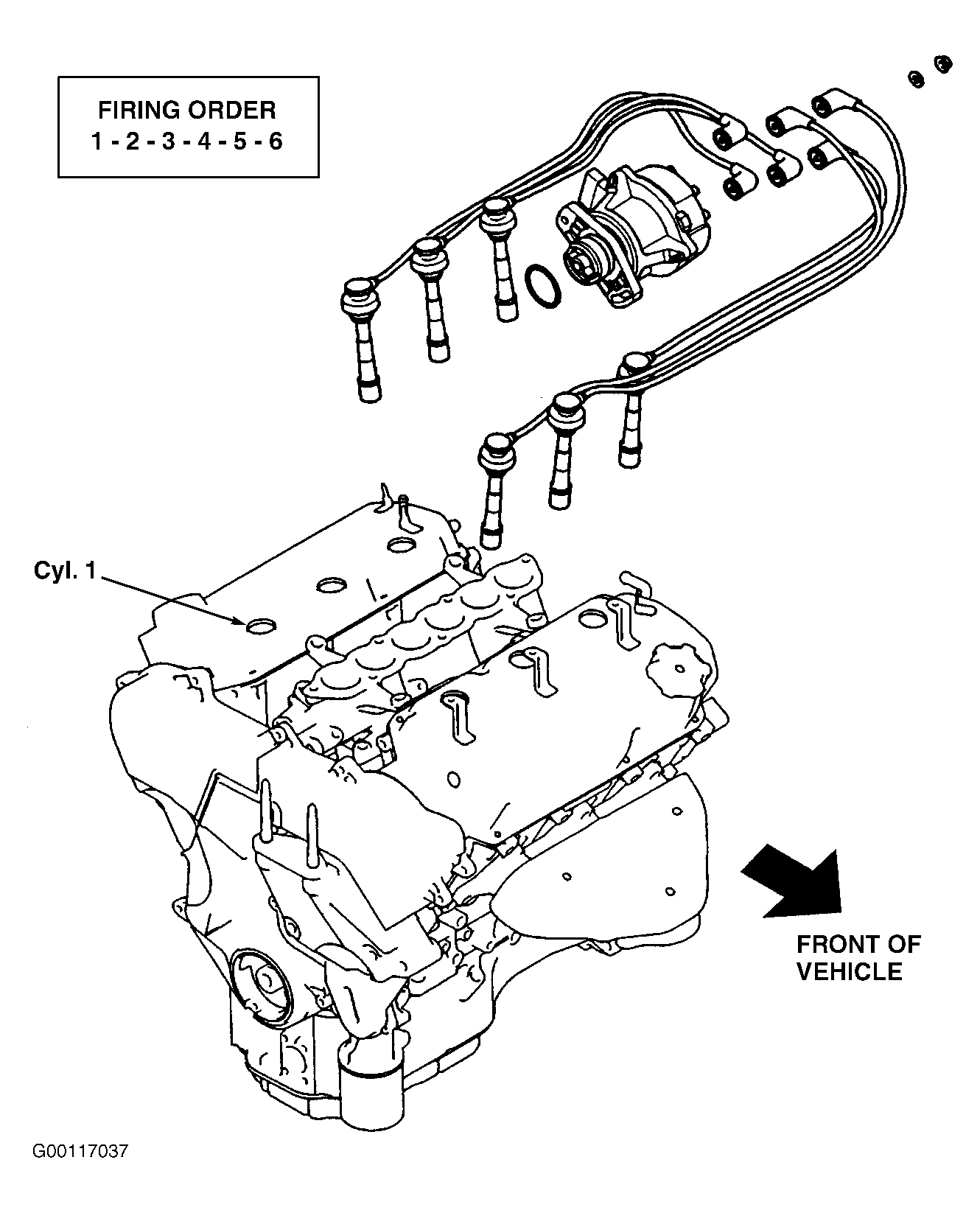

Fig 1: Firing Order (3.5L)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
