Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

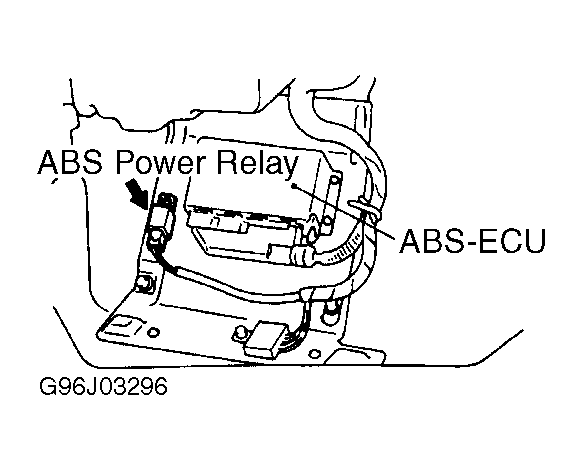

| ABS ECU | Behind left side of glove box. See Figure. |

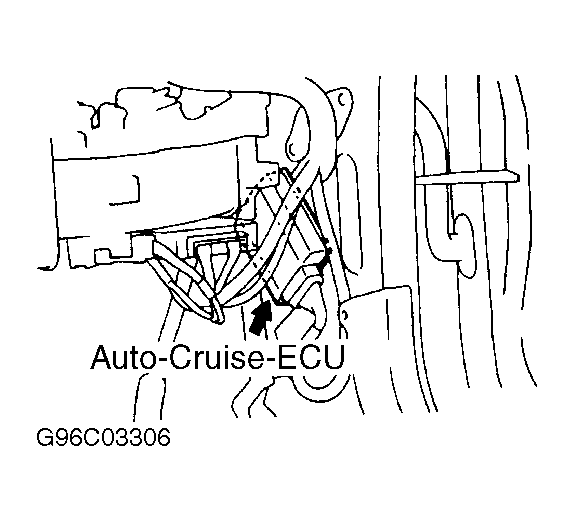

| Auto-Cruise ECU | Behind right side of glove box. See Figure. |

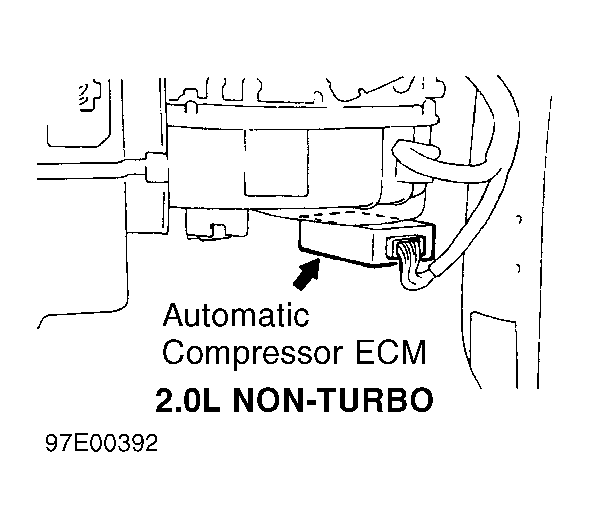

| Automatic Compressor ECM (2.0L Non-Turbo) | Behind glove box. See Figure. |

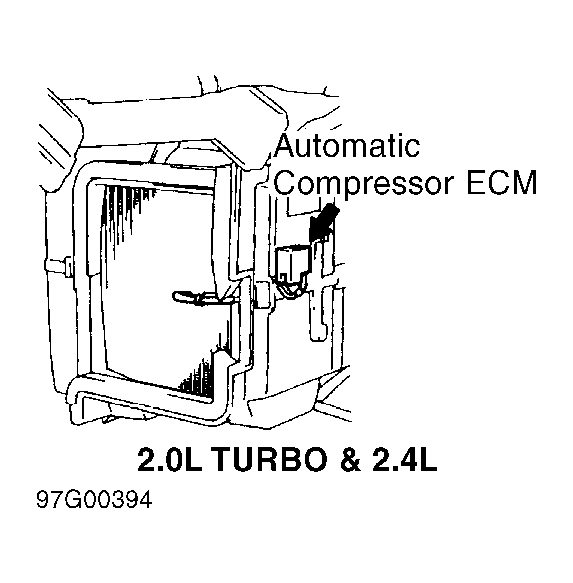

| Automatic Compressor ECM (2.0L Turbo & 2.4L) | Behind left side of glove box. See Figure. |

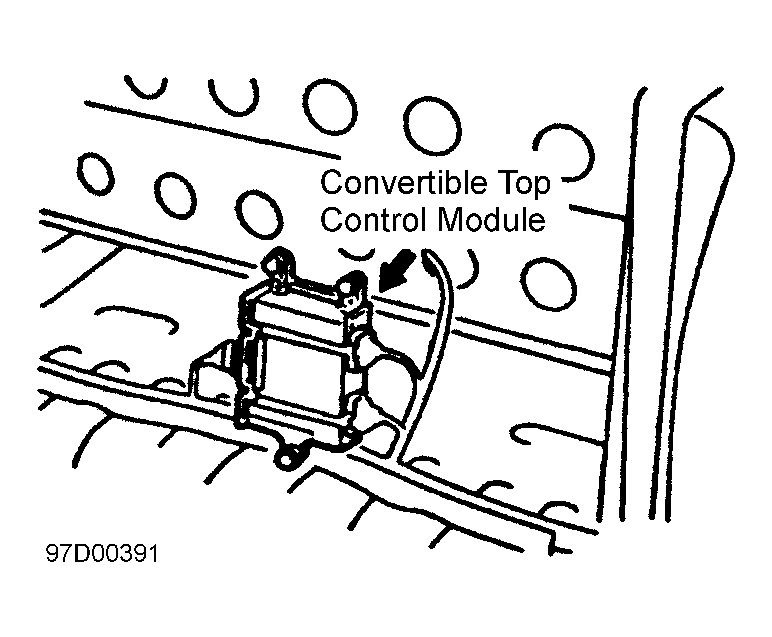

| Convertible Top Control Module | In front of luggage compartment. See Figure. |

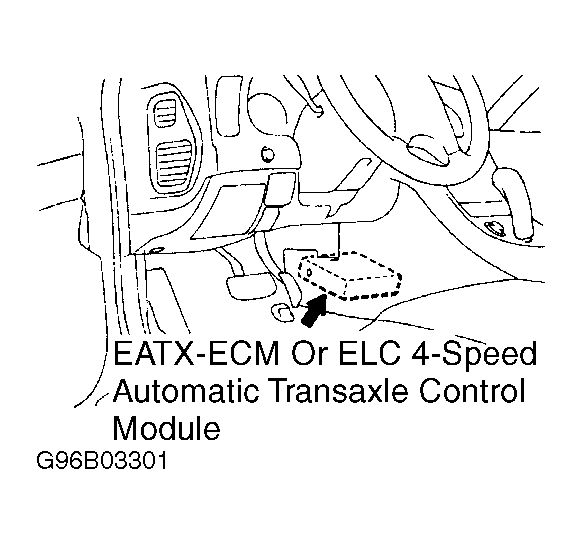

| EATX-ECM (2.0L Non-Turbo) | Behind center of dash. See Figure. |
| ELC 4-Speed Automatic Transaxle Control Module (2.0L Turbo & 2.4L) | Behind center of dash. See Figure. |

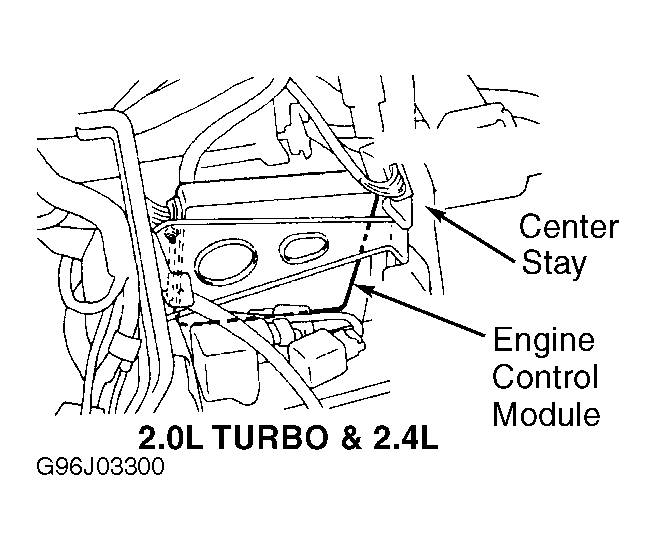

| Engine Control Module (2.0L Turbo & 2.4L) | Behind center of dash. See Figure. |

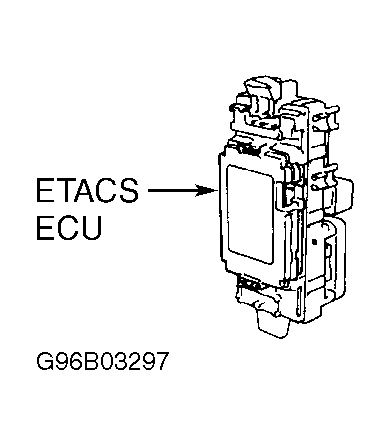

| ETACS-ECU | Behind left side of dash, on passenger compartment fuse/relay box. See Figure. |

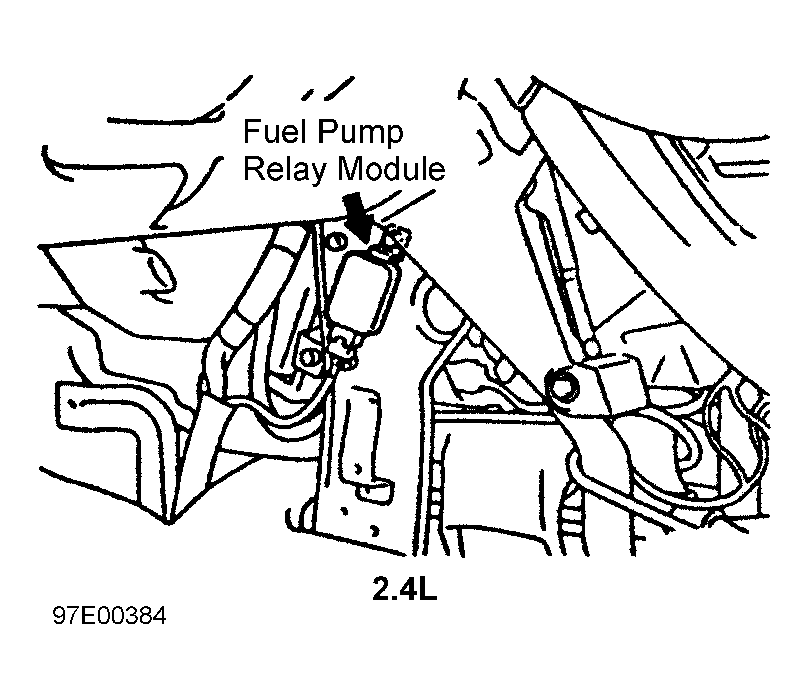

| Fuel Pump Relay Module (2.4L) | Behind center console. See Figure. |

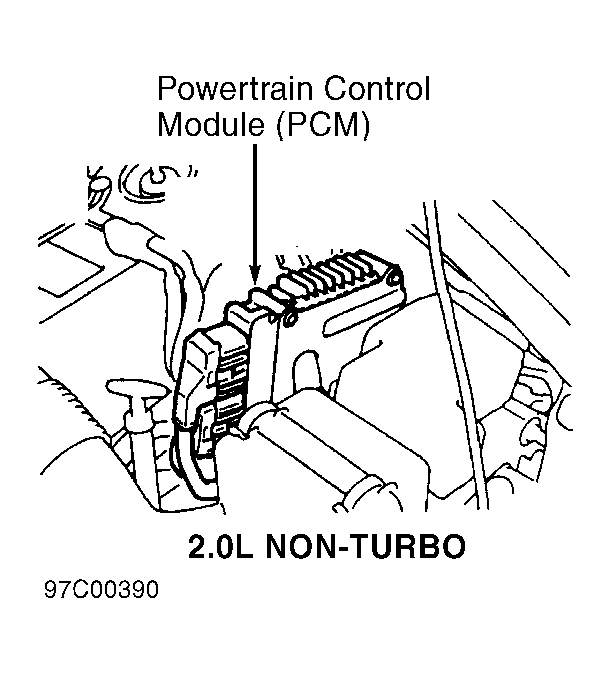

| Powertrain Control Module (PCM) (2.0L Non-Turbo) | Left side of engine compartment. See Figure. |

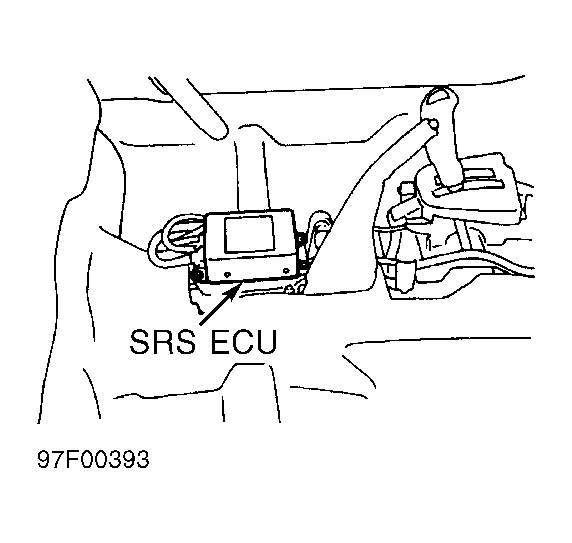

| SRS-ECU | Below front of console. See Figure. |

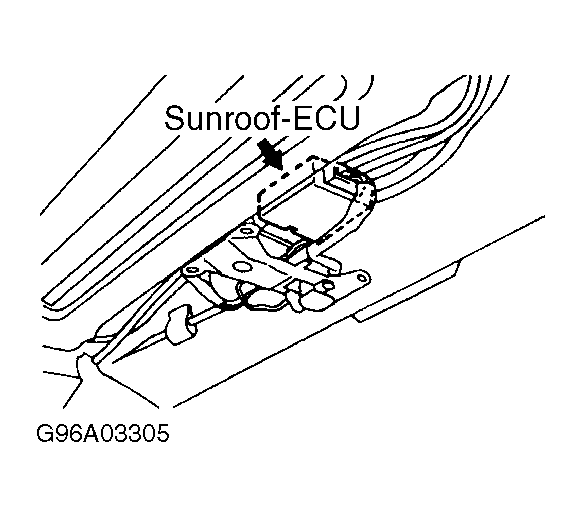

| Sunroof-ECU | Center of windshield header. See Figure. |
