Symptom Tests: Notes

NOTE: To diagnose symptom, See Fig 1 or Fig 2 . .

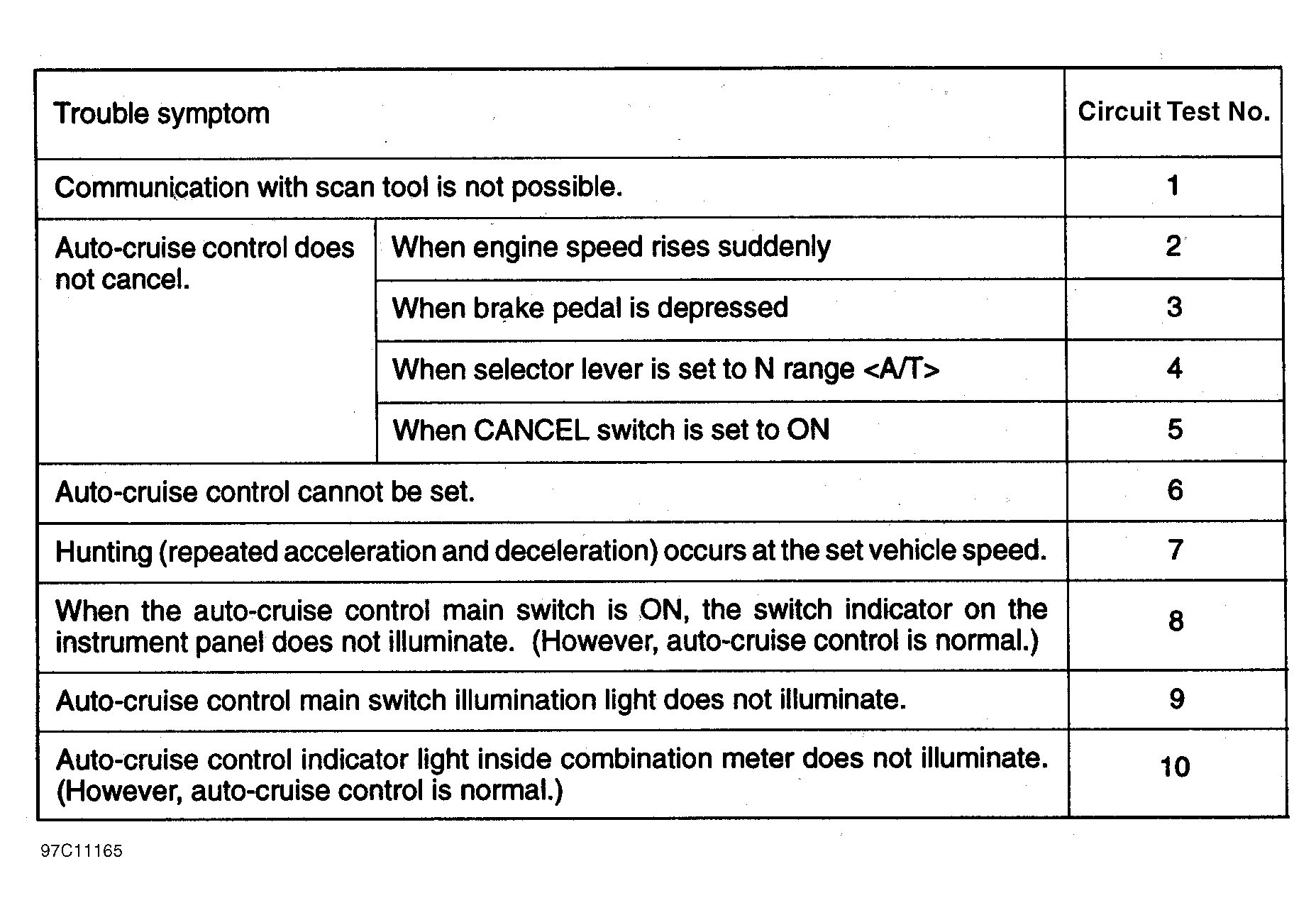

Fig 1: Symptom Chart (2.0L Non-Turbo)
G97C11165Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

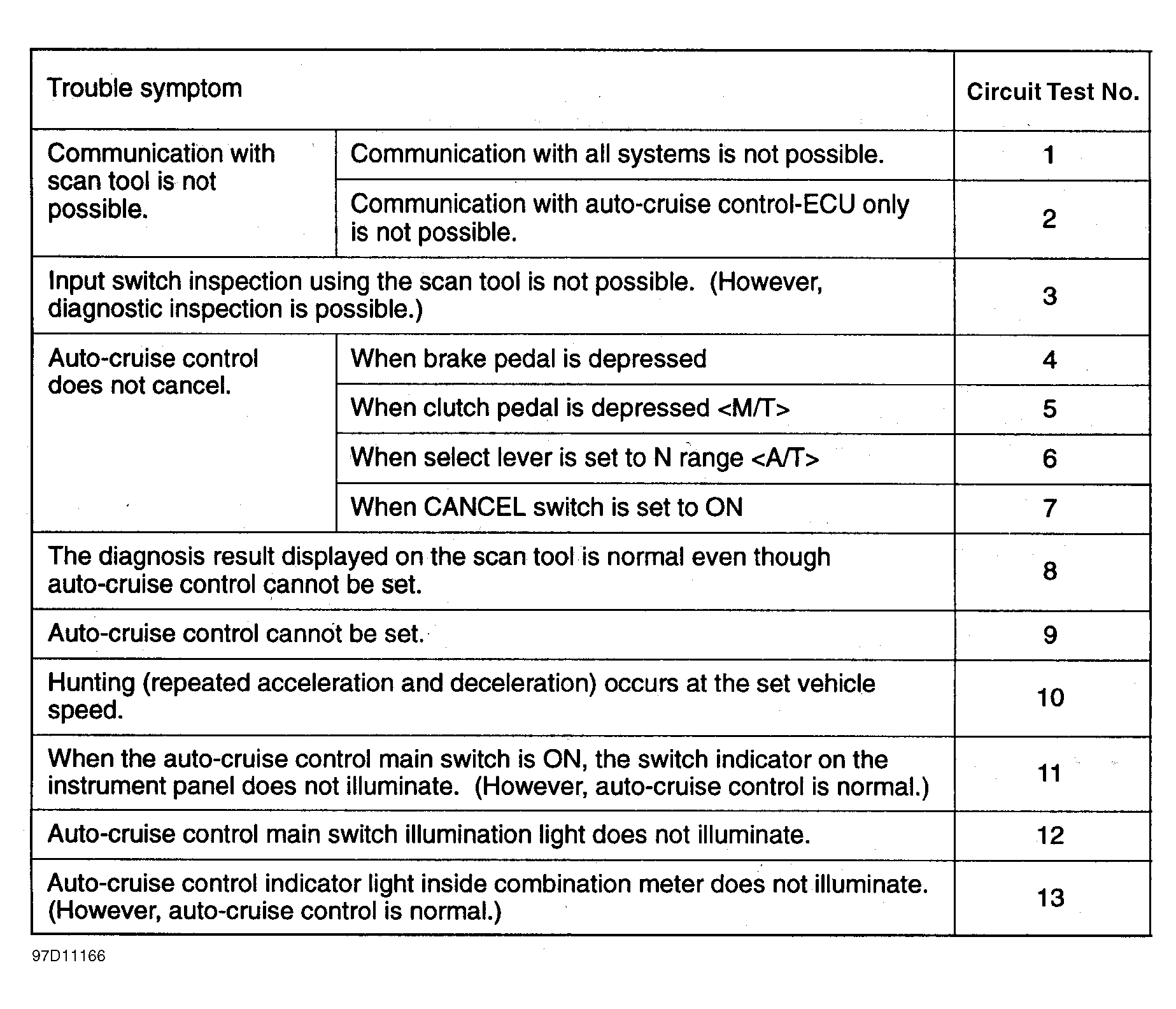

Fig 2: Symptom Chart (2.0L Turbo & 2.4L)
G97D11166Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
