Power Window Switch

Remove appropriate power window switch from trim panel. Using ohmmeter, check continuity of appropriate switch. SeeFig 1 , Fig 2 or Fig 3 . If continuity is not as specified, replace affected power window switch.

Fig 1: Testing Power Window Main Switch Terminals (Eclipse)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

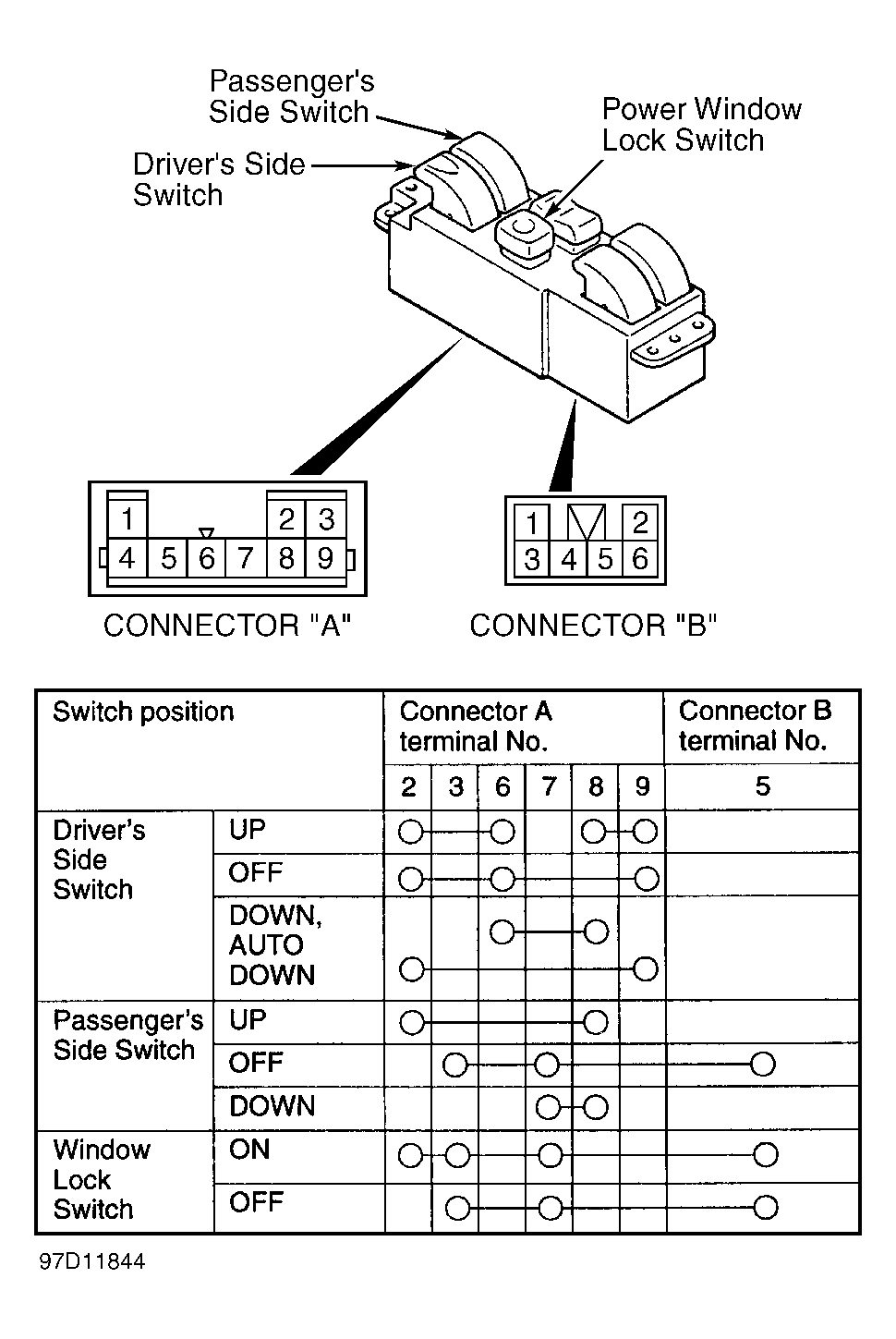

Fig 2: Testing Power Window Main Switch Terminals (Eclipse Spyder)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Testing Power Window Sub-Switch Terminals (All Models)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
