Main Switch

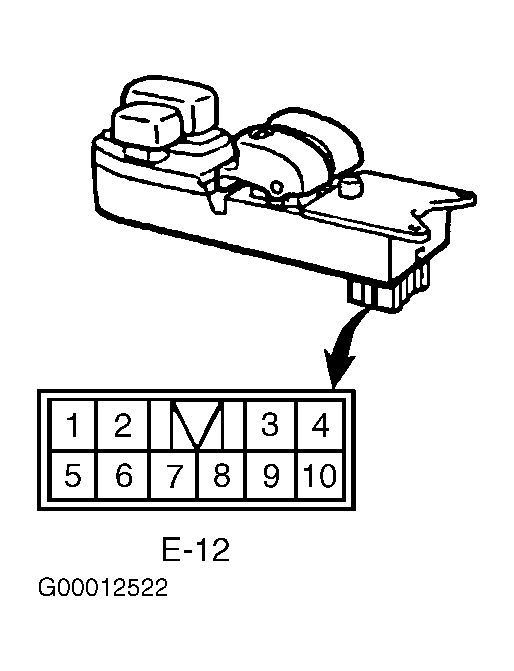

Remove power window main switch from trim panel. Apply battery positive voltage to switch terminal No. 13. Apply ground to switch terminal No. 12. See Figure . Continuity should be present at specified terminals. See POWER WINDOW MAIN SWITCH CONTINUITY table. If continuity is not as specified, replace power window main switch.
POWER WINDOW MAIN SWITCH CONTINUITY
| Switch Position | Terminals No. | ||
|---|---|---|---|
| Left Front Switch | |||
| Up | 5 & 9, 1 & 6 | ||
| Down | 5 & 6, 1 & 9 | ||
| Idle | 1, 5 & 9 | ||
| Right Front Switch | |||
| Switch in Unlock Position | |||
| Up | 6 & 7, 8 & 9 | ||
| Down | 7 & 9, 6 & 8 | ||
| Idle | 7, 8 & 9 | ||
| Switch In Lock Position | |||
| Up | 6 & 7 | ||
| Down | 6 & 8 | ||
| Idle | 7 & 8 | ||
