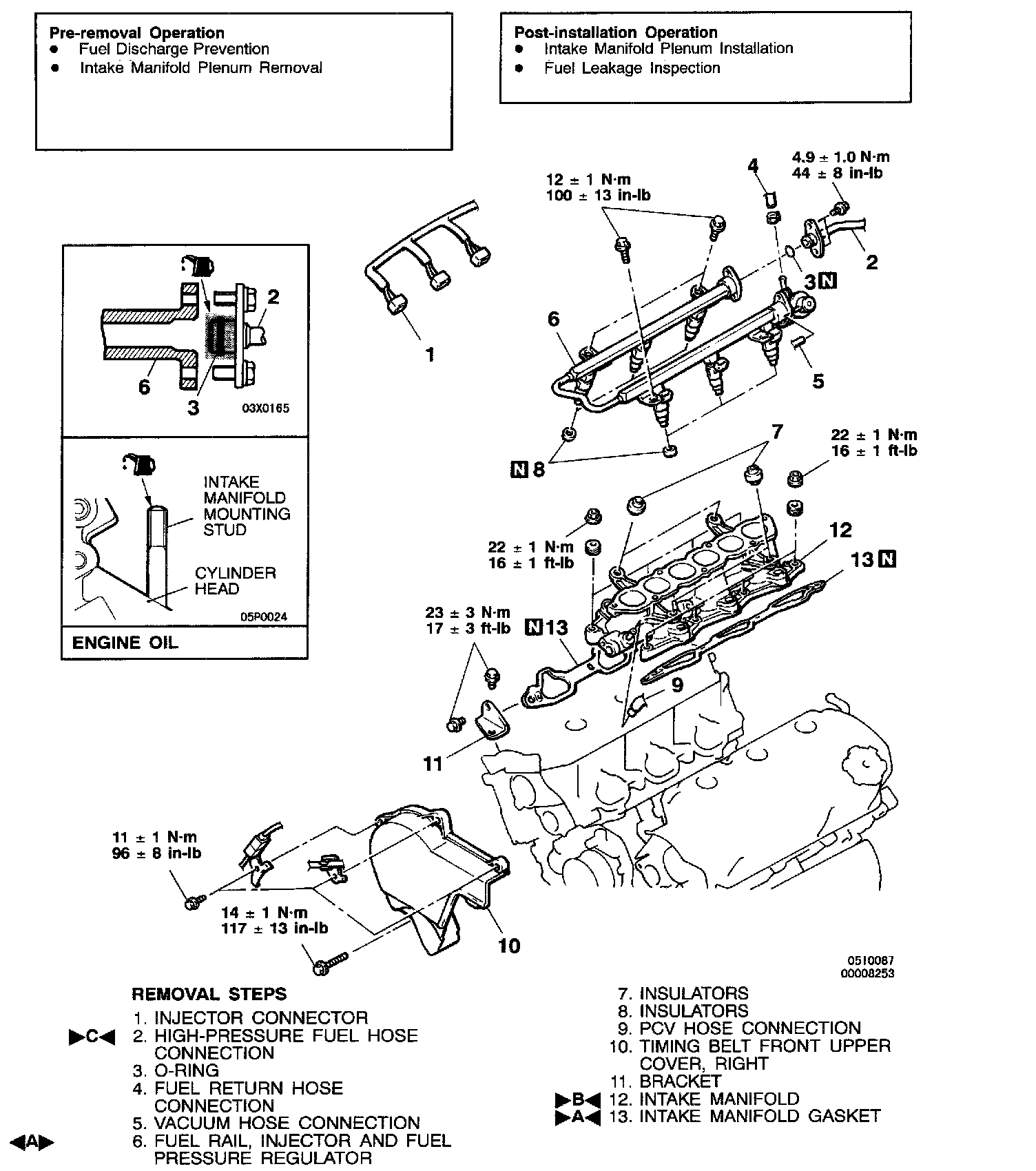

Intake Manifold

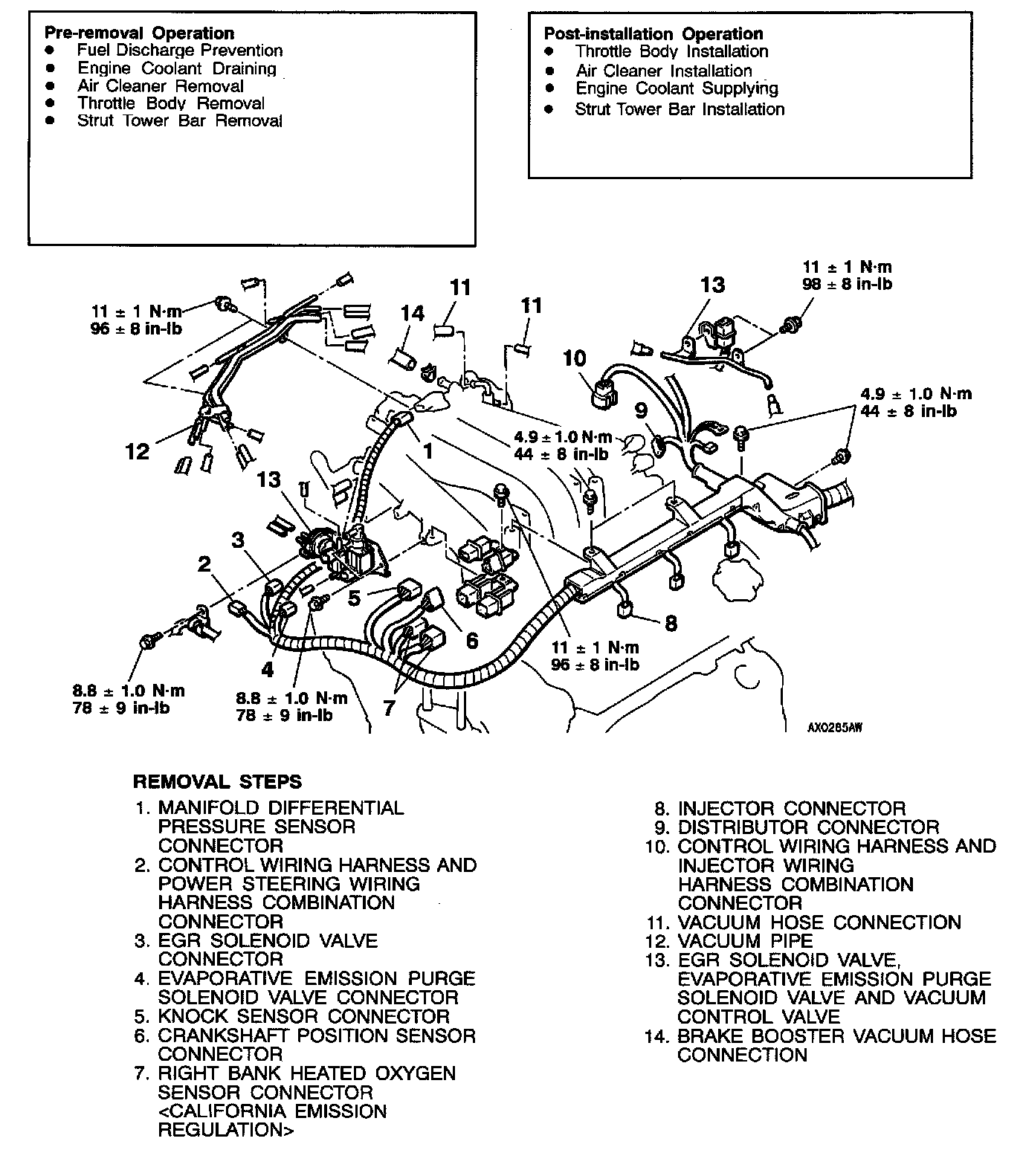

Part 1 Of 2:

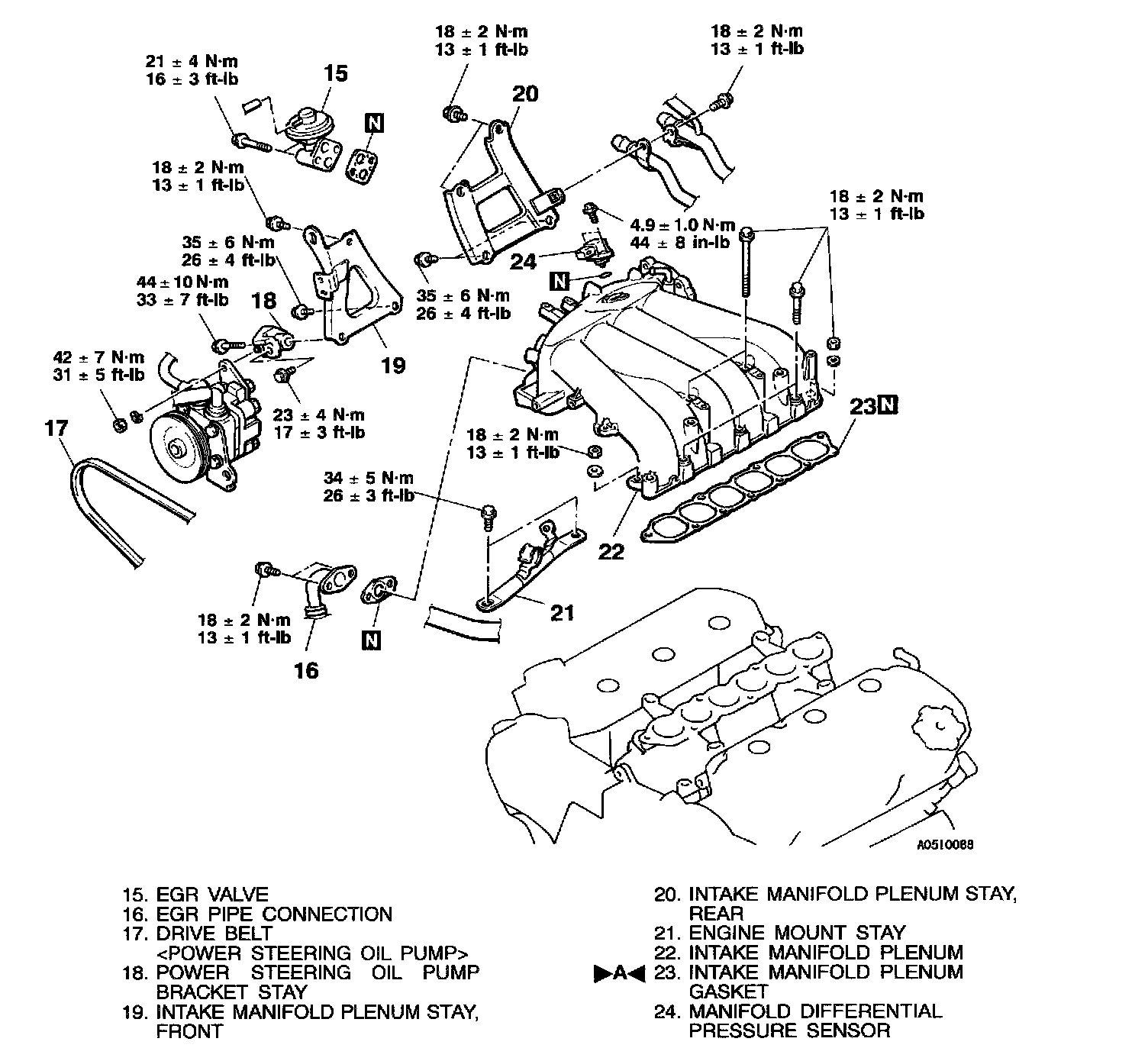

Part 2 Of 2:





INTAKE MANIFOLD PLENUM REPLACEMENT W/ RELATED COMPONENTS
