Vehicle Speed Sensor: Locations

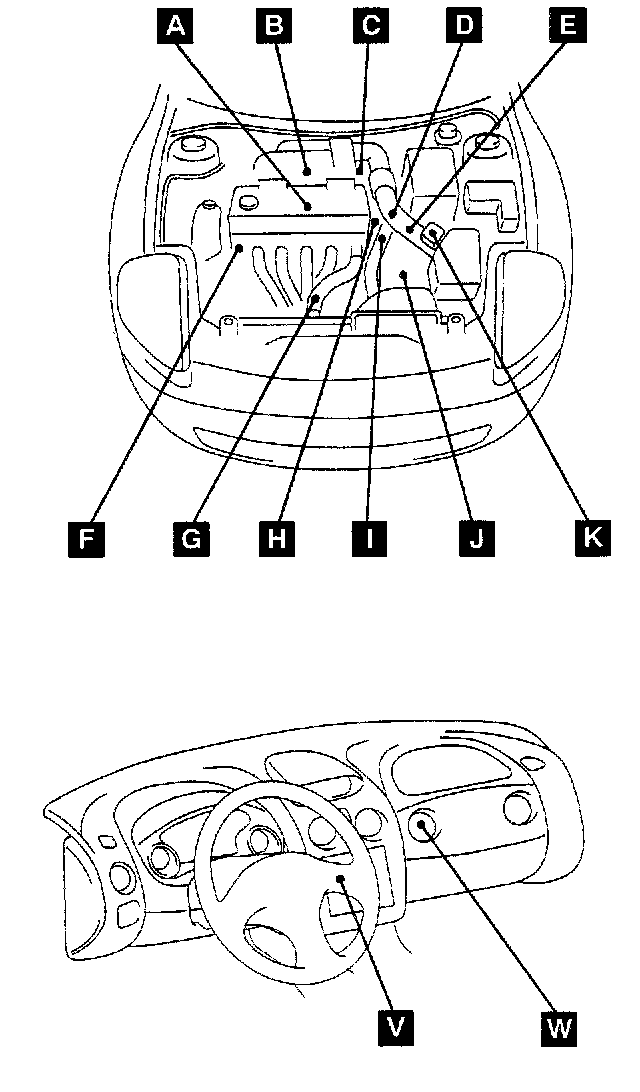

Sensor Locations Overall View:

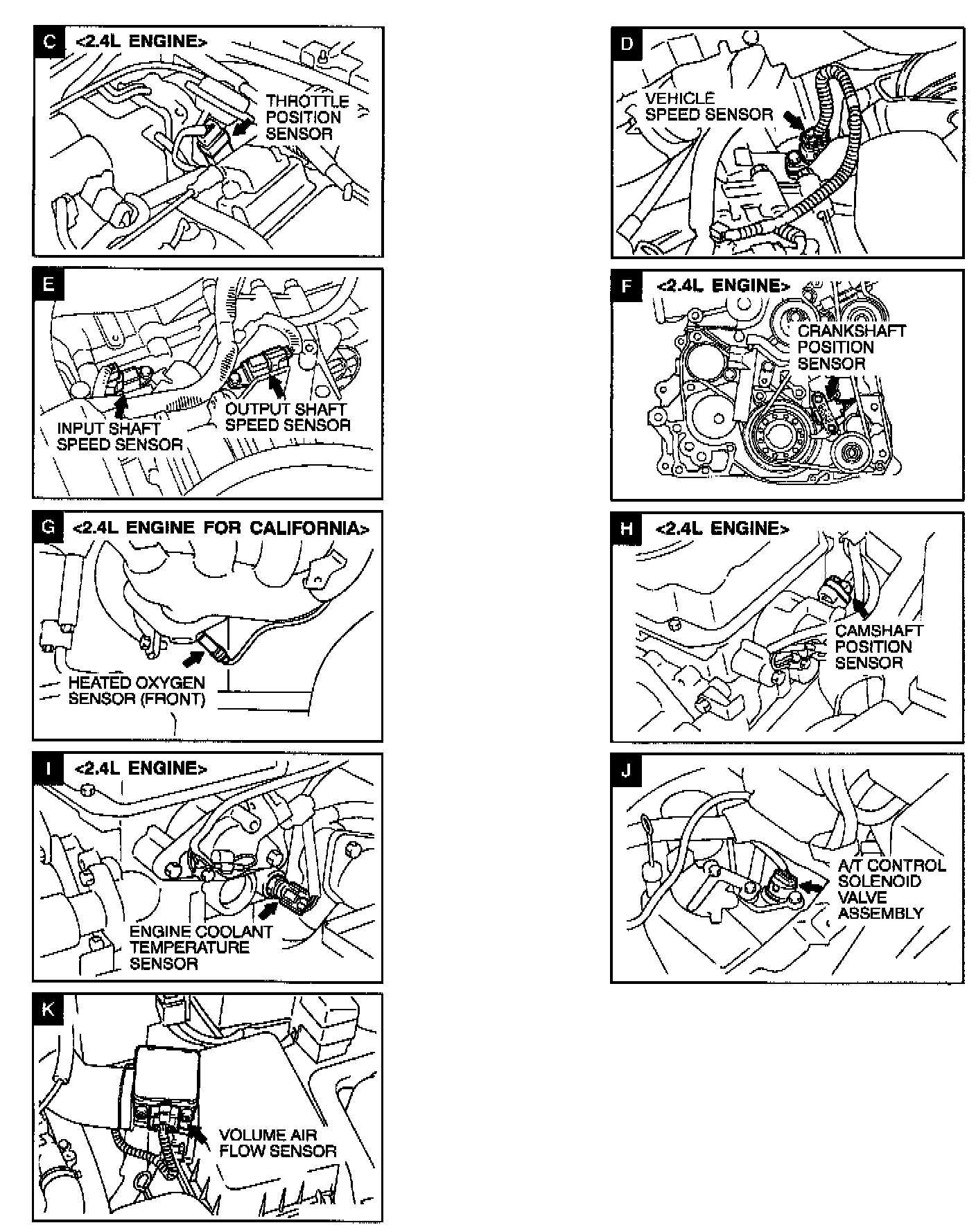

Sensor Locations View C-K:





Name Symbol
Vehicle Speed Sensor D
