A/T Technical Data

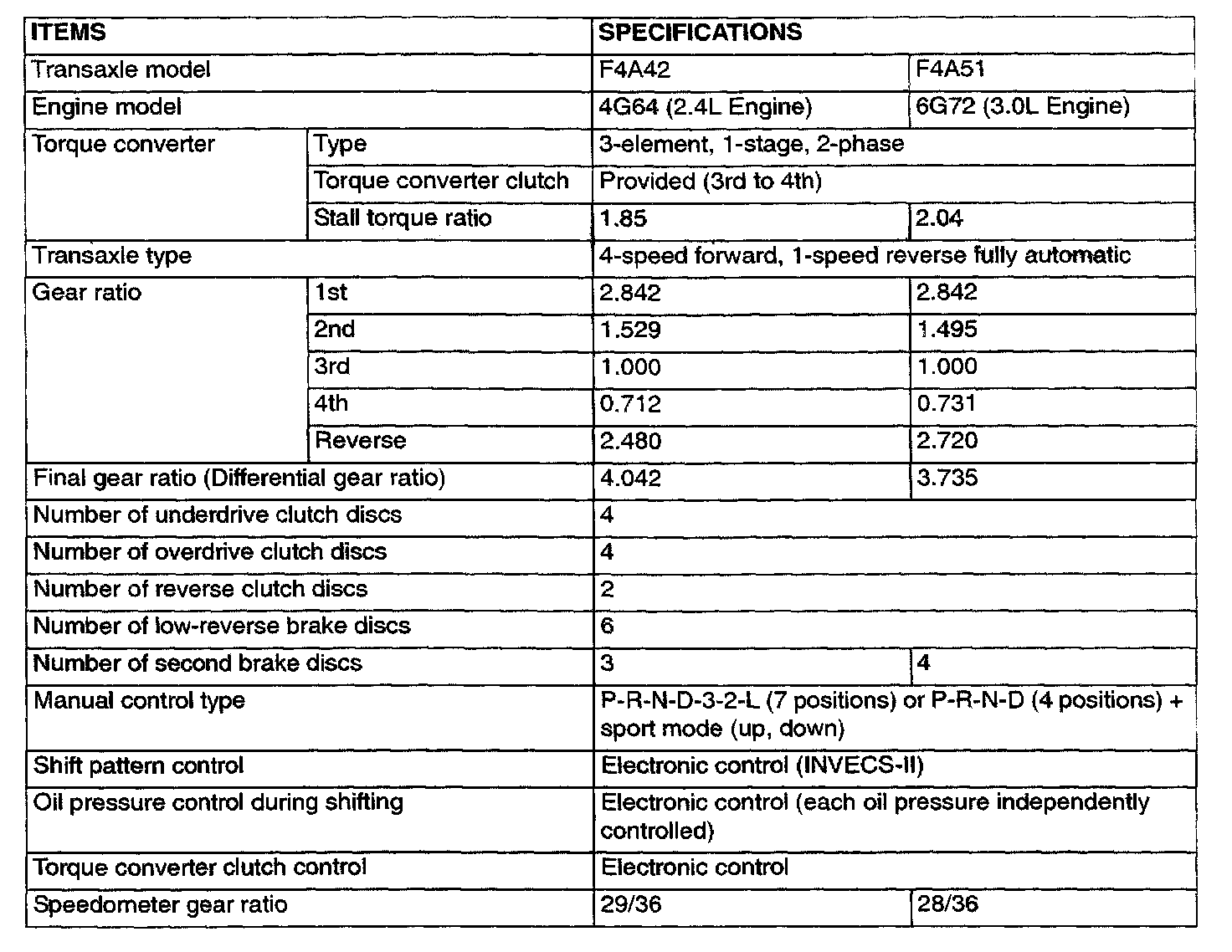

F4A42/F4A51 4-spd A/T, Gear Ratios:

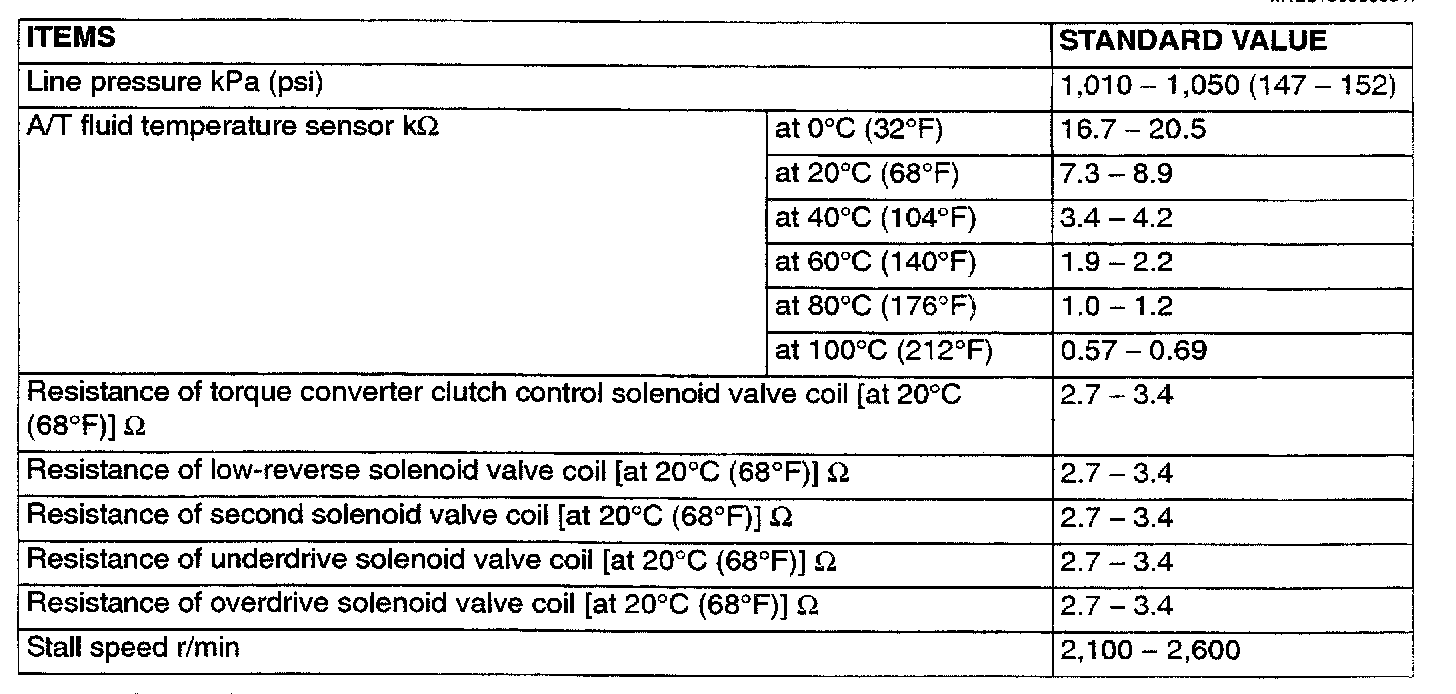

F4A42/F4A51 4-spd A/T, Standard Values:

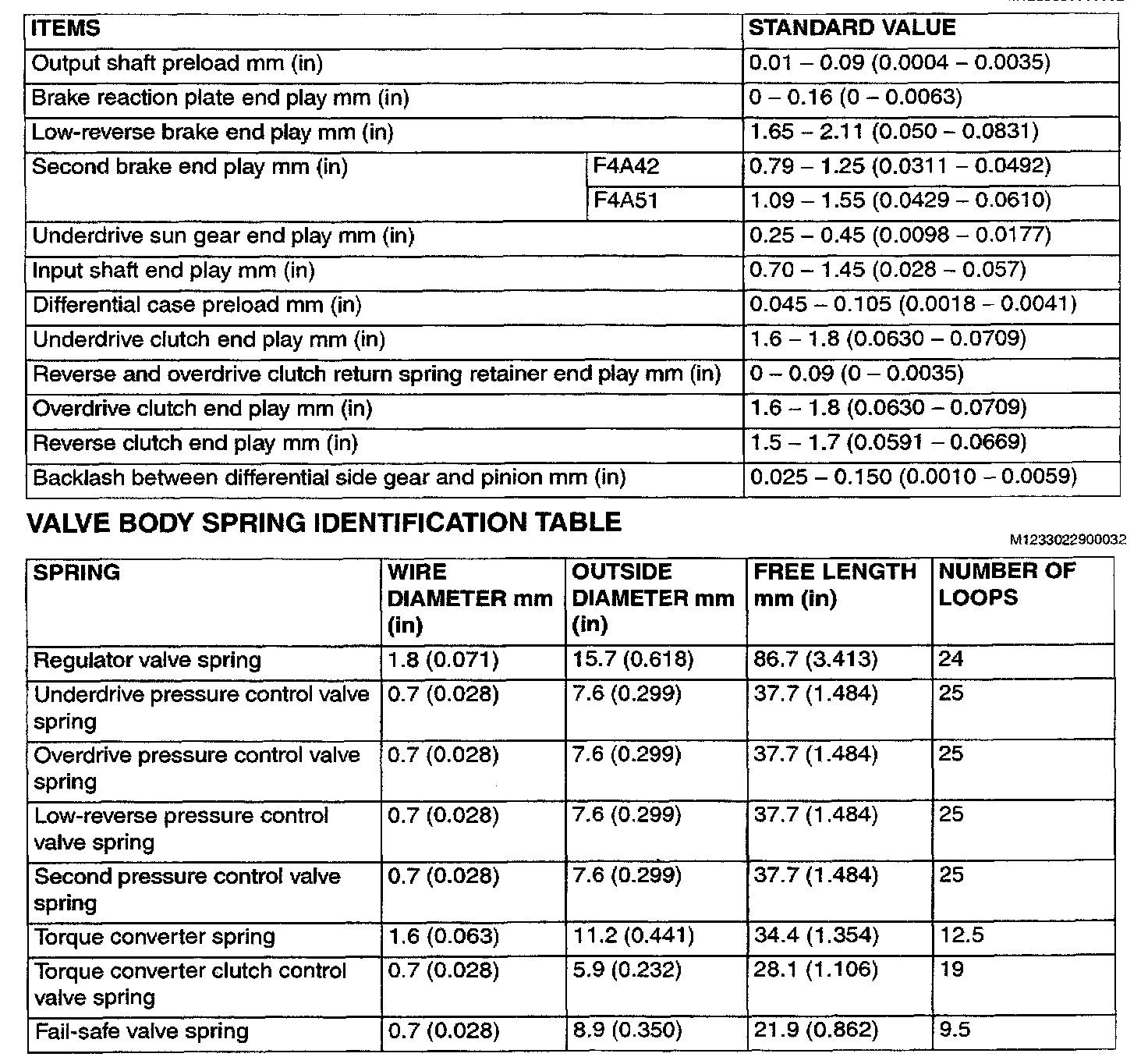

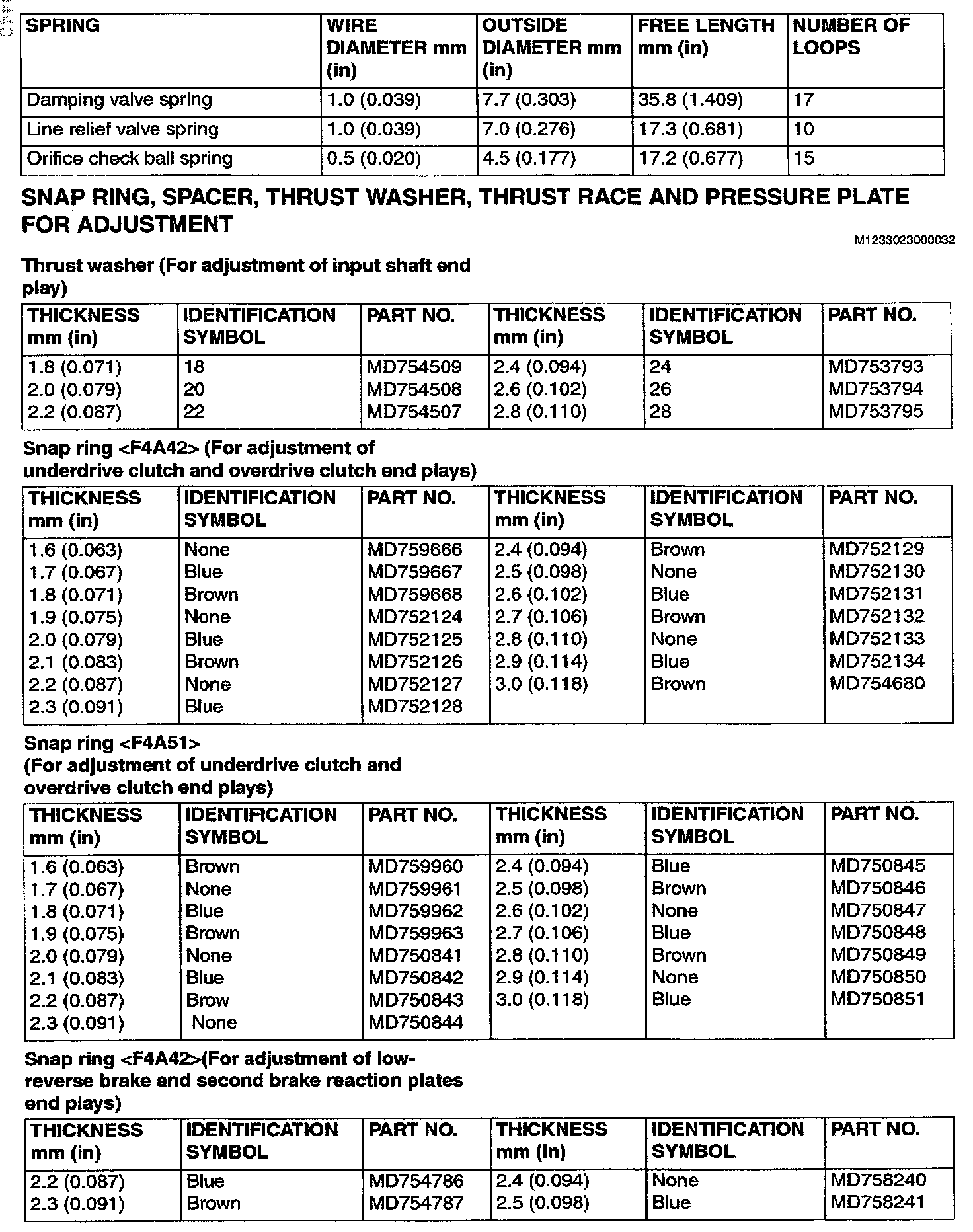

F4A42/F4A51 4-SPD A/T, Standard Values & Spring Chart:

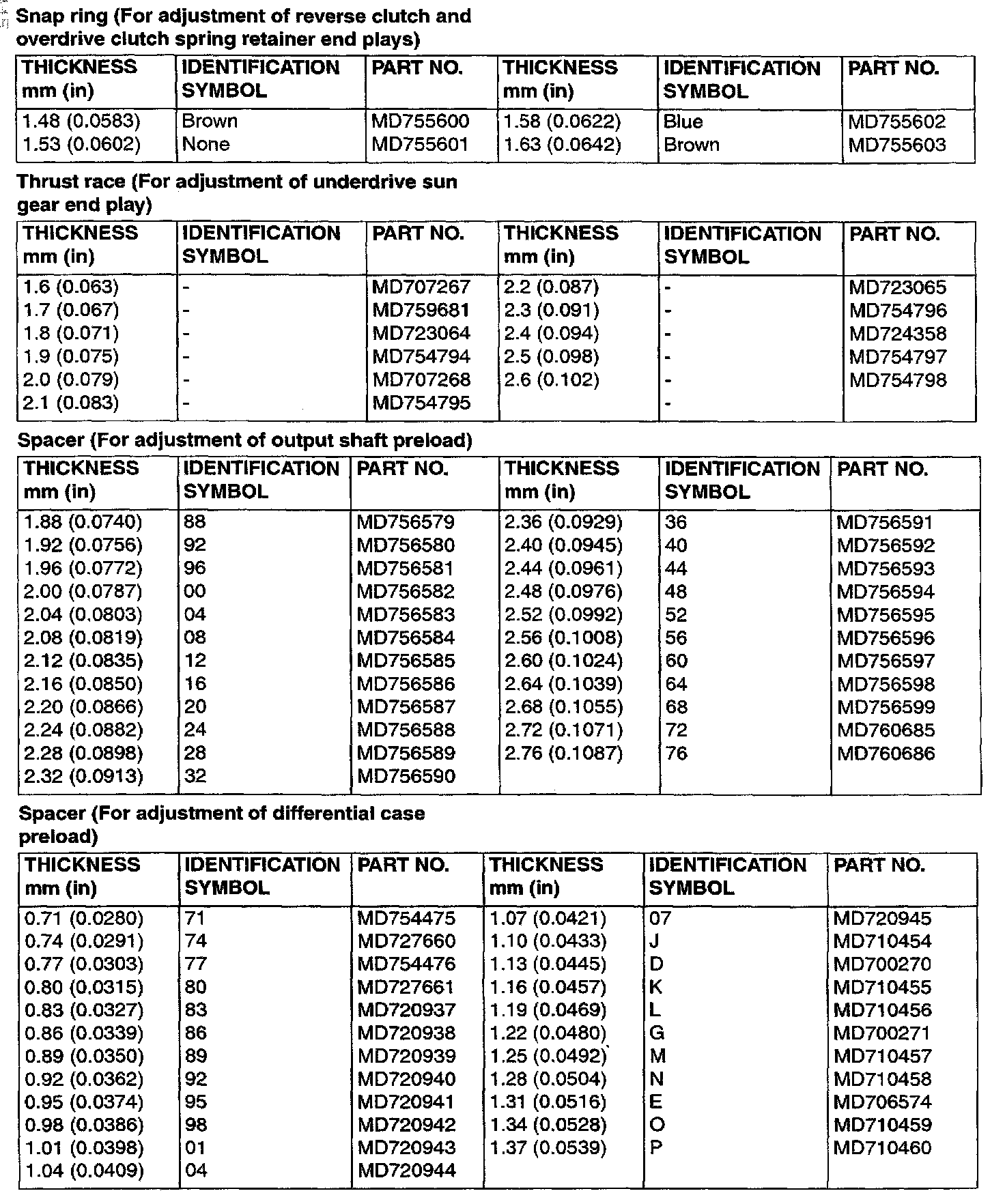

F4A42/F4A51 4-spd A/T, Input Shaft, Clutch & Low-Reverse End Play:

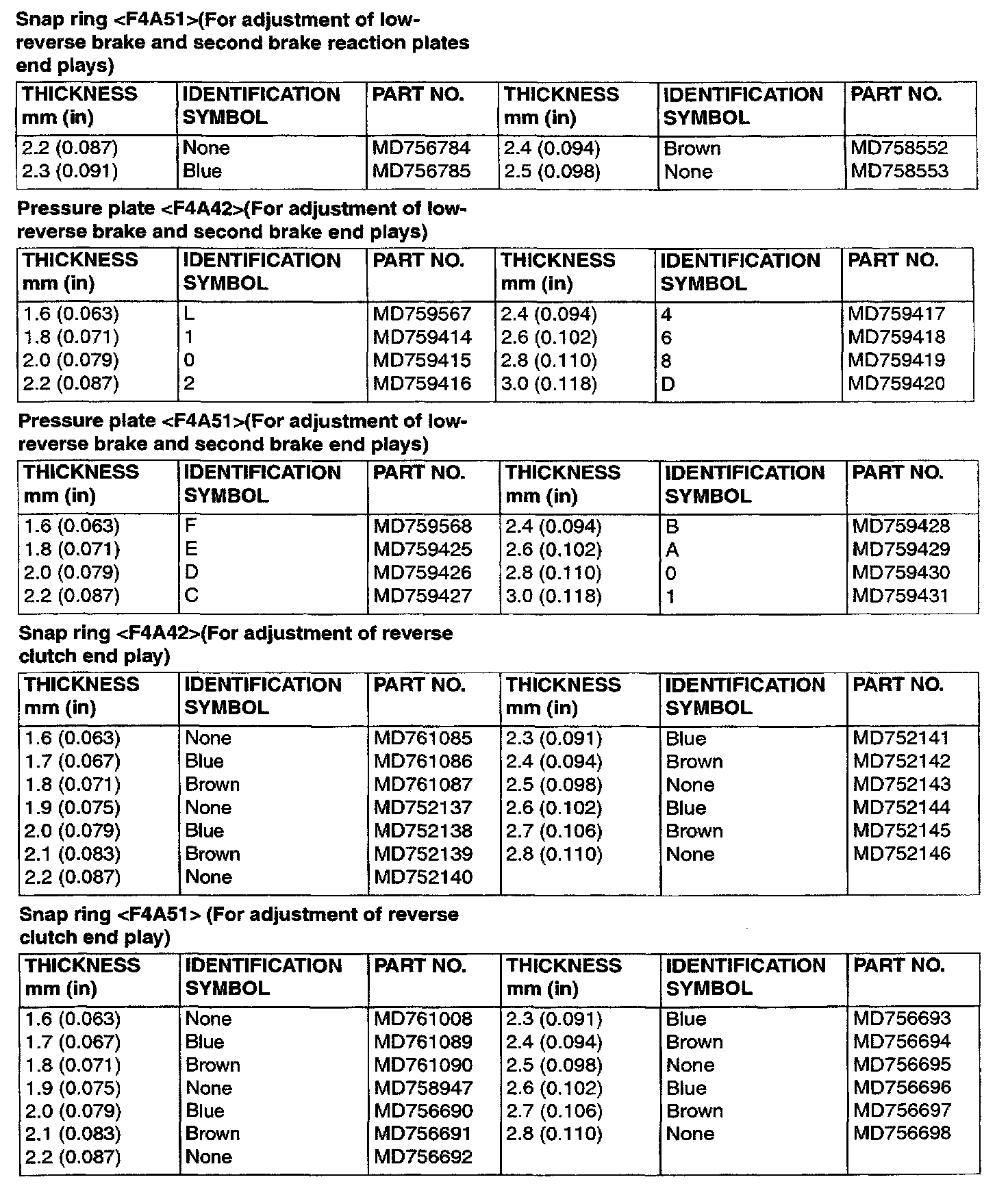

F4A42/F4A51 4-spd A/T, Low-Reverse & Clutch End Play:

F4A42/F4A51 4-spd A/T, Reverse Clutch, Output Shaft & Differential:

F4A42/F4A51 4-spd A/T, Differential Side Gear & Pinion Backlash:
