M/T Torque Data

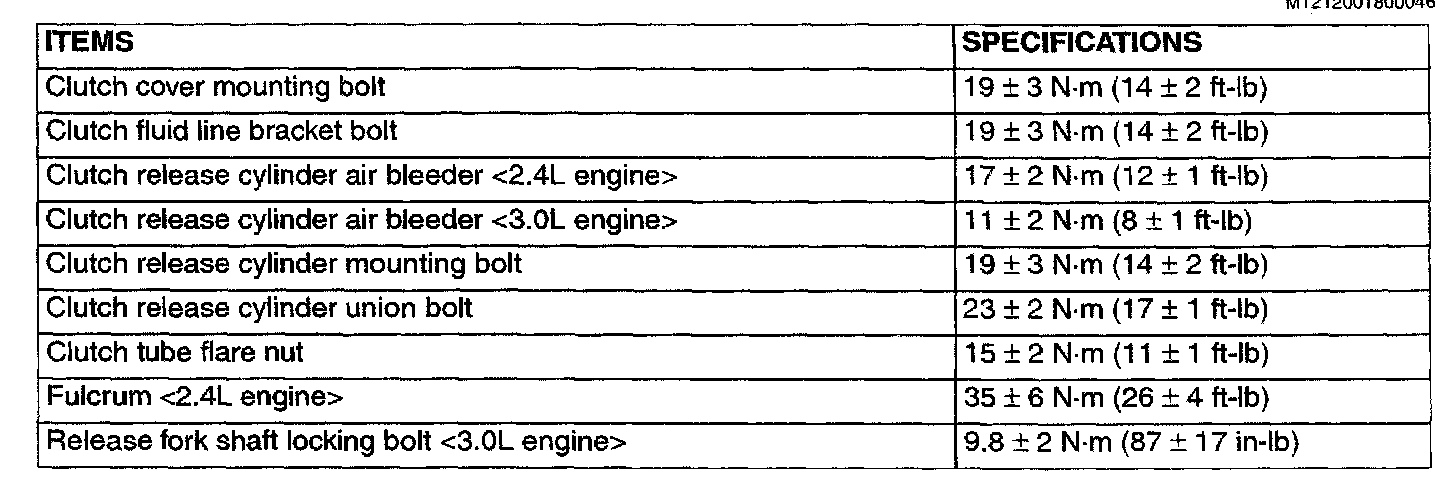

F5M42/F5M51 5-spd M/T, Clutch Torque:





F5M42/F5M51 5-spd M/T, Clutch Torque:

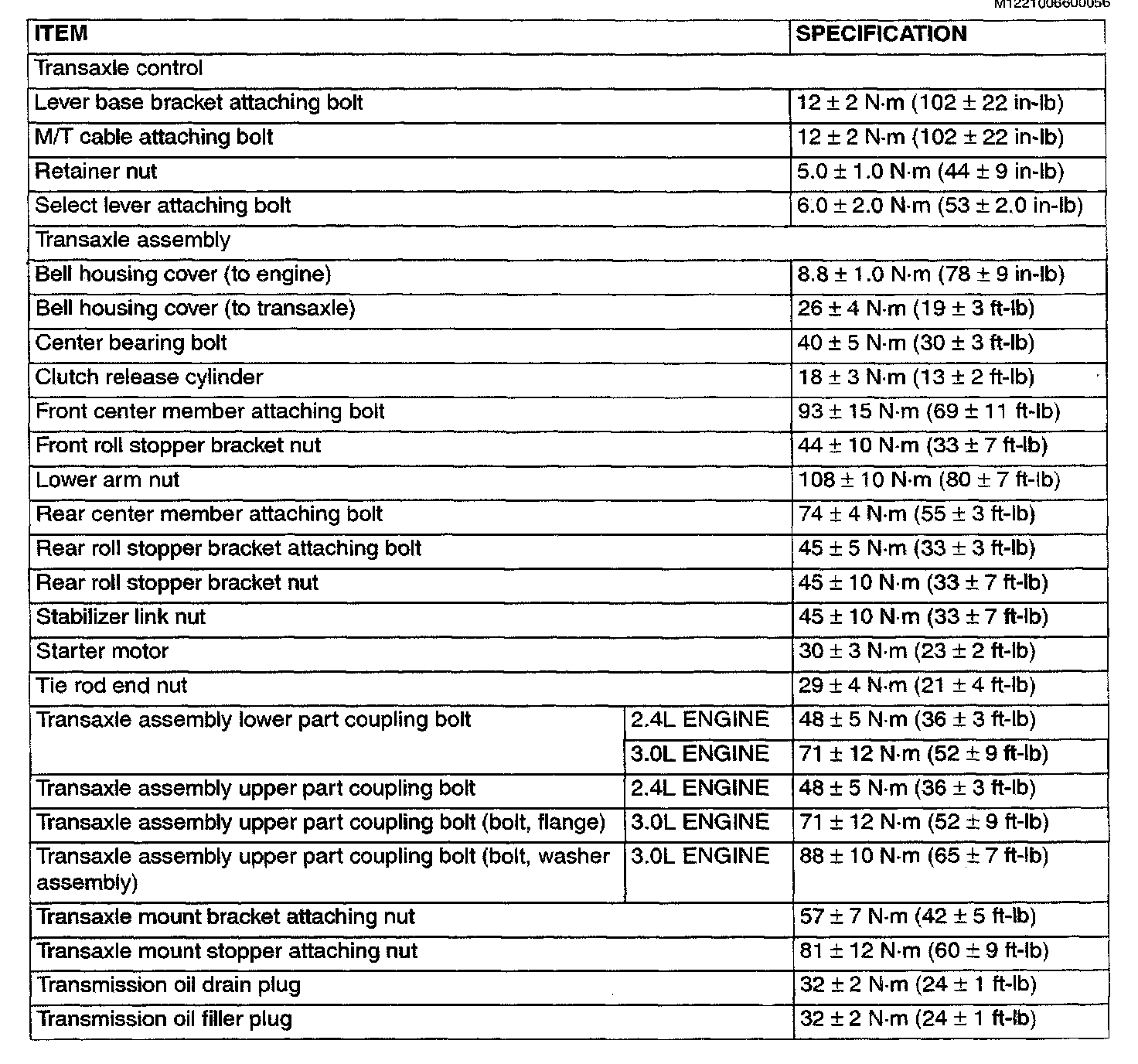

F5M42/F5M51 5-spd M/T, Transaxle Torque:

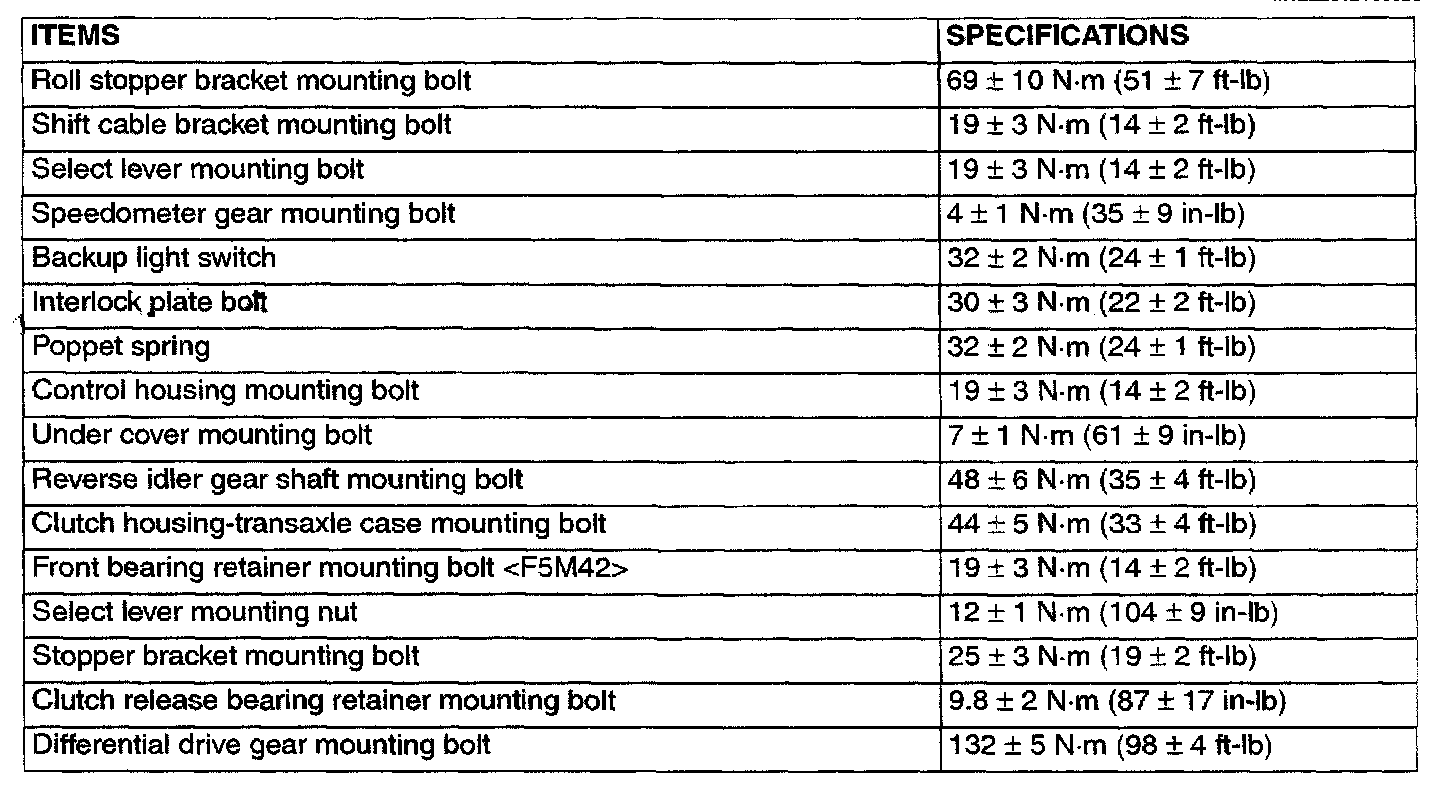

F5M42/F5M51 5-Sad M/To, Transaxle Torque:
