Abs Power Relay: AWD

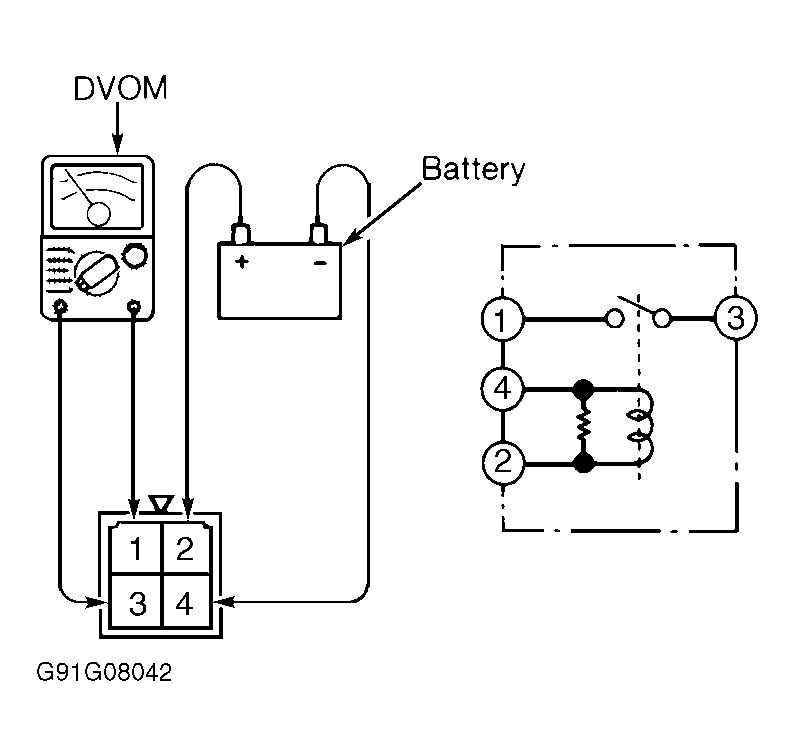

- Remove ABS power relay. Disconnect relay connector. Using a DVOM, check for continuity between terminals No. 1 and 3. See Fig 1
. If continuity exists, replace relay.
- If no continuity exists, check for continuity between terminals No. 2 and 4. If continuity exists, go to next step. If no continuity exists, replace relay.
- Apply battery voltage to terminal No. 2, and ground terminal No. 4. Check for continuity between terminals No. 1 and 3. If continuity exists, relay is okay. If continuity does not exist, replace relay.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
