Power Window Relay Test: Mirage

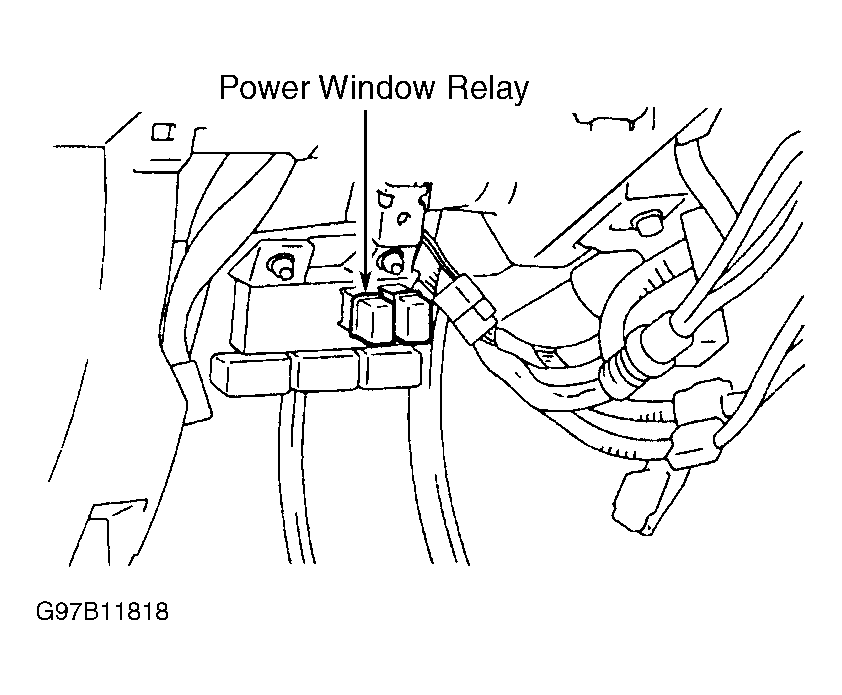

  1. Remove power window relay from fuse/relay block. See Figure . Check continuity between power window relay terminals No. 1 and 3. See Figure . If continuity is present, go to next step. If continuity is not present, replace relay.
  2. Connect positive battery voltage to power window relay terminal No. 1. Connect negative battery voltage to terminal No. 3. Continuity should be present between terminals No. 4 and 5. Replace power window relay if continuity is not as specified.
