Power Window Switch Test

Remove control switch from trim panel. Using ohmmeter, check continuity of switch. See appropriate MASTER WINDOW SWITCH CONTINUITY or SUB-SWITCH CONTINUITY table. See Fig 1 -Fig 3 . Replace appropriate switch as necessary if switch continuity is not as specified.

MASTER WINDOW SWITCH CONTINUITY (MIRAGE - 2-DOOR)

Switch Position (1) Check Continuity Between Terminals No.
Normal Position
Left Front OFF 1, 5 & 9
Left Front UP 1 & 6; 5 & 9
Left Front DOWN 5 & 6; 1 & 9
Right Front OFF 7, 8 & 9
Right Front UP 6 & 7; 8 & 9
Right Front DOWN 6 & 8; 7 & 9
Lock Position
Left Front OFF 1, 5 & 9
Left Front UP 1 & 6; 5 & 9
Left Front DOWN 5 & 6; 1 & 9
Right Front OFF 7 & 8
Right Front UP 6 & 7
Right Front DOWN 6 & 8
(1) Left side of vehicle refers to driver's side.
MASTER WINDOW SWITCH CONTINUITY (MIRAGE - 4-DOOR)

Switch Position (1) Check Continuity Between Terminals No.
Normal Position
Left Front OFF 8, 9 & 12
Left Front UP 8 & 13; 9 & 12
Left Front DOWN 8 & 12; 9 & 13
Left Rear OFF 1, 2 & 12
Left Rear UP 1 & 13; 2 & 12
Left Rear DOWN 2 & 13; 1 & 12
Right Front OFF 3, 11 & 12
Right Front UP 3 & 13; 11 & 12
Right Front DOWN 3 & 12; 11 & 13
Right Rear OFF 6, 12 & 14
Right Rear UP 6 & 12; 13 & 14
Right Rear DOWN 6 & 13; 12 & 14
Lock Position
Left Front OFF 8, 9 & 12
Left Front UP 8 & 13; 9 & 12
Left Front DOWN 8 & 12; 9 & 13
Left Rear OFF 1 & 2
Left Rear UP 1 & 13
Left Rear DOWN 2 & 13
Right Front OFF 3 & 11
Right Front UP 3 & 13
Right Front DOWN 11 & 13
Right Rear OFF 6 & 14
Right Rear UP 13 & 14
Right Rear DOWN 6 & 13
(1) Left side of vehicle refers to driver's side.
SUB-SWITCH CONTINUITY (MIRAGE - ALL MODELS)

Switch Position Check Continuity Between Terminals No.
OFF 4 & 7; 6 & 8
UP 5 & 7; 6 & 8
DOWN 4 & 7; 5 & 6
MASTER WINDOW SWITCH CONTINUITY (MONTERO & MONTERO SPORT)

Switch Position (1) Check Continuity Between Terminals No.
Normal Position
Left Front OFF 8, 9 & 12
Left Front UP 8 & 13; 9 & 12
Left Front DOWN 8 & 12; 9 & 13
Left Rear OFF 1, 2 & 12
Left Rear UP 1 & 13; 2 & 12
Left Rear DOWN 1 & 12; 2 & 13
Right Front OFF 3, 11 & 12
Right Front UP 3 & 13; 11 & 12
Right Front DOWN 3 & 12; 11 & 13
Right Rear OFF 6, 12 & 14
Right Rear UP 6 & 12; 13 & 14
Right Rear DOWN 6 & 13; 12 & 14
Lock Position
Left Front OFF 8, 9 & 12
Left Front UP 8 & 13; 9 & 12
Left Front DOWN 8 & 12; 9 & 13
Left Rear OFF 1 & 2
Left Rear UP 1 & 13
Left Rear DOWN 2 & 13
Right Front OFF 3 & 11
Right Front UP 3 & 13
Right Front DOWN 11 & 13
Right Rear OFF 6 & 14
Right Rear UP 13 & 14
Right Rear DOWN 6 & 13
(1) Left side of vehicle refers to driver's side.
SUB-SWITCH CONTINUITY (MONTERO & MONTERO SPORT)

Switch Position Check Continuity Between Terminals No.
OFF 4 & 7; 6 & 8
UP 5 & 7; 6 & 8
DOWN 4 & 7; 5 & 6

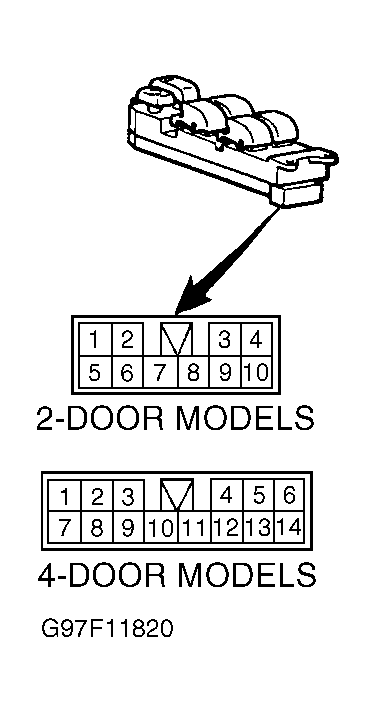

Fig 1: Power Window Connector ID (Mirage - Main Switch)
G97F11820Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

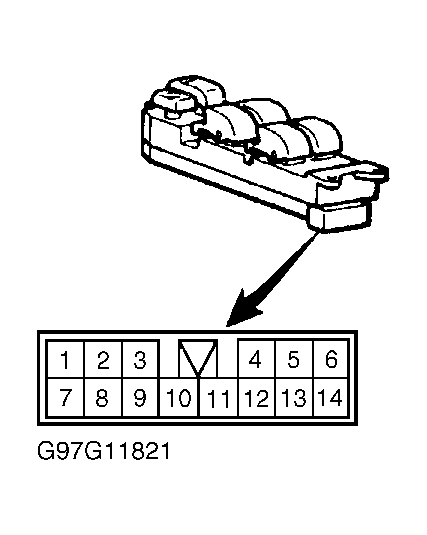

Fig 2: Power Window Connector ID (Montero & Montero Sport - Main Switch)
G97G11821Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

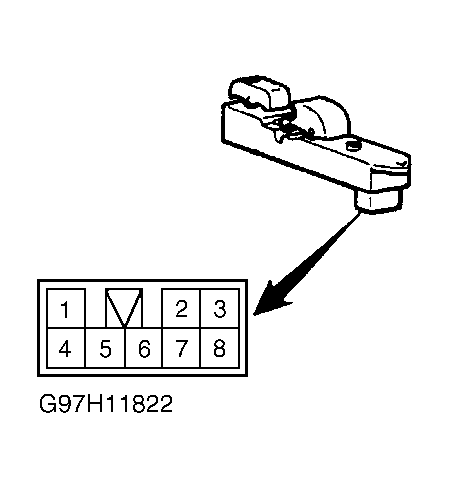

Fig 3: Power Window Connector ID (Mirage, Montero & Montero Sport - Sub-Switch)
