Rectifier Assembly

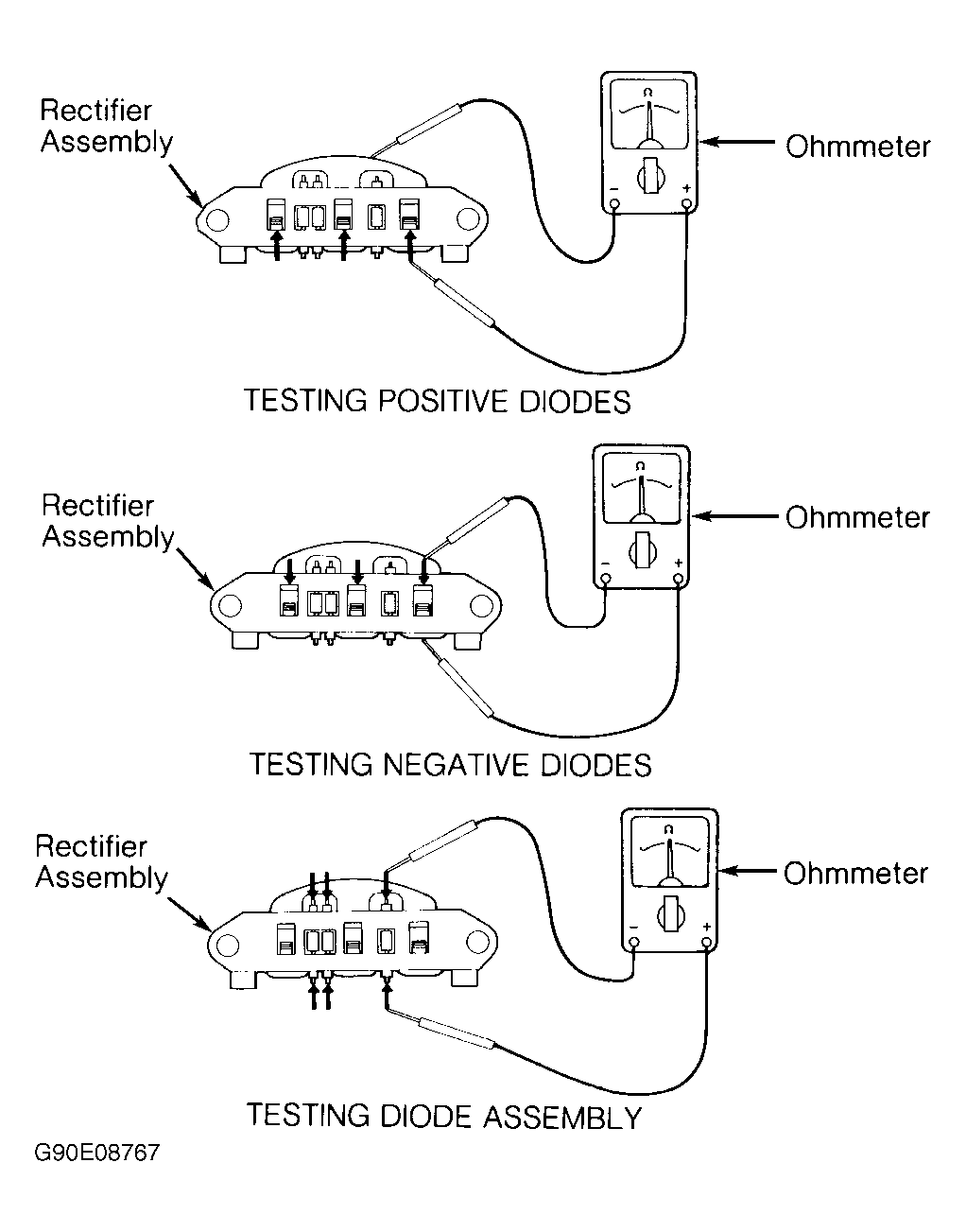

- Using ohmmeter, check for continuity between diodes and stator coil lead connection. See Fig 1
. Reverse leads. If continuity is present in both directions, diode is shorted. Replace rectifier assembly.
- To check entire diode assembly, use an ohmmeter to check for continuity between both ends of each diode. See Fig 1
. Switch ohmmeter leads. Continuity should be present in one direction only. If continuity is not as specified, diode is defective. Replace rectifier assembly.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
