Disassembly And Assembly

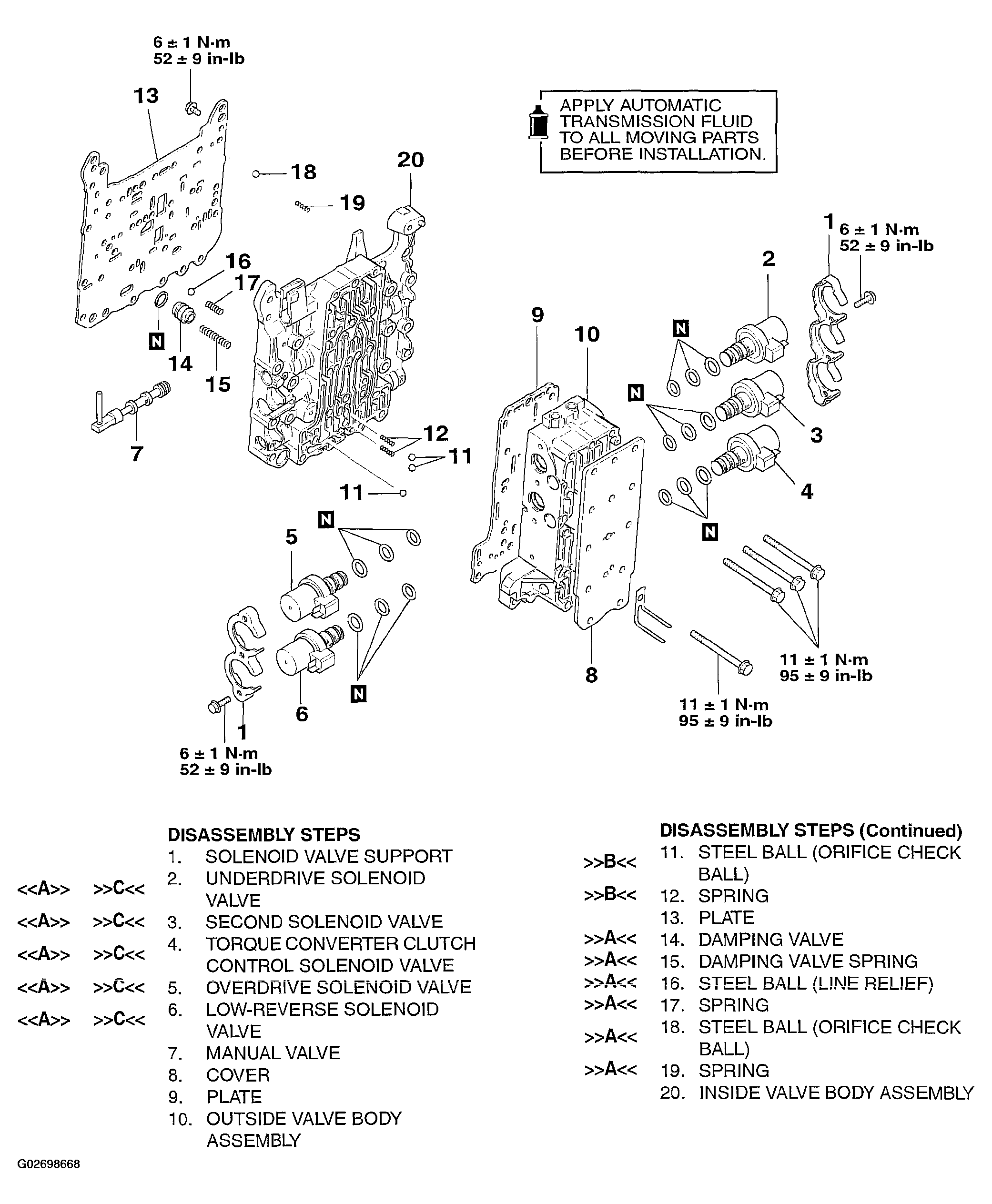

Fig 1: Valve Body Disassembly And Assembly (1 Of 3)
G02698668

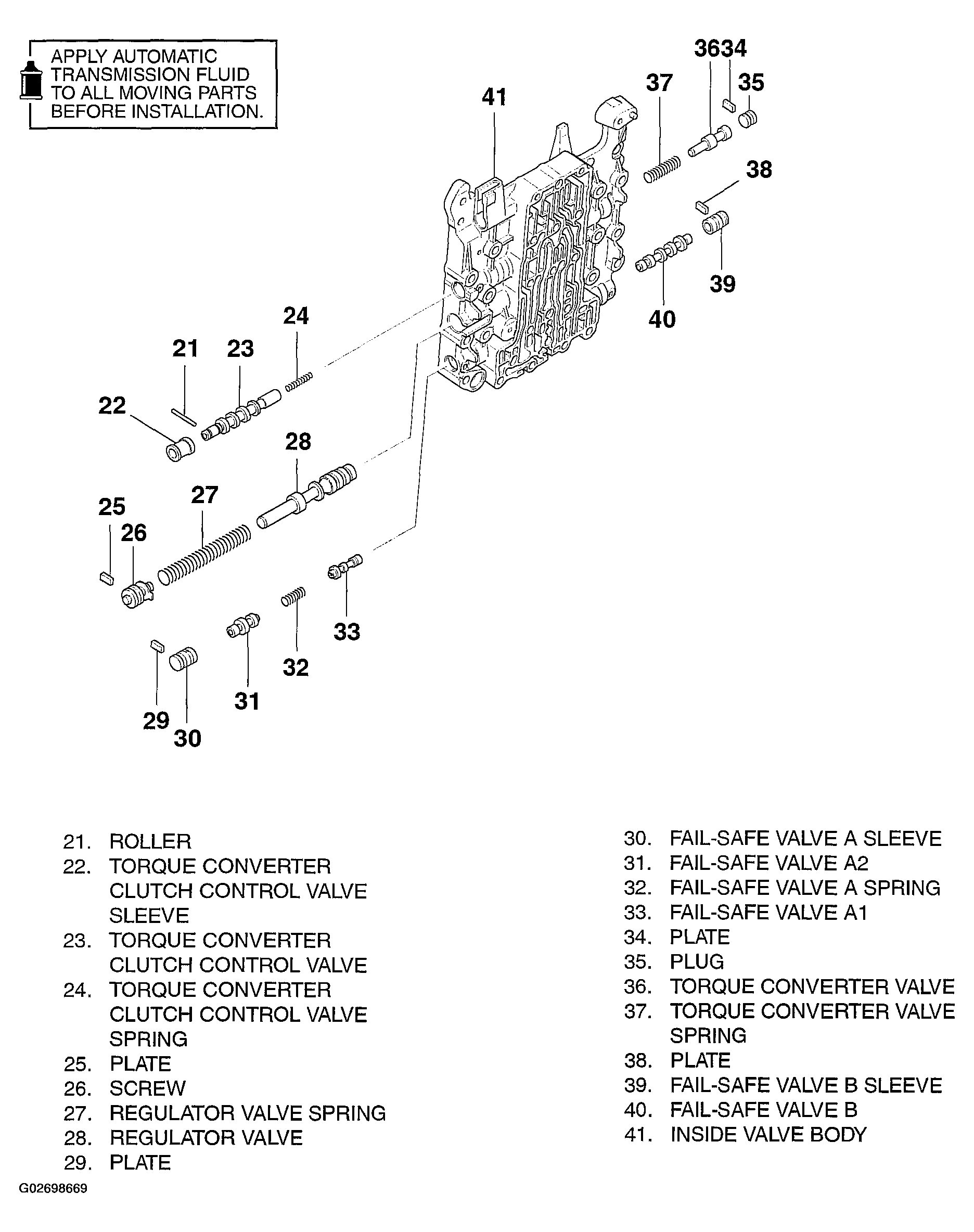

Fig 2: Valve Body Disassembly And Assembly (2 Of 3)
G02698669

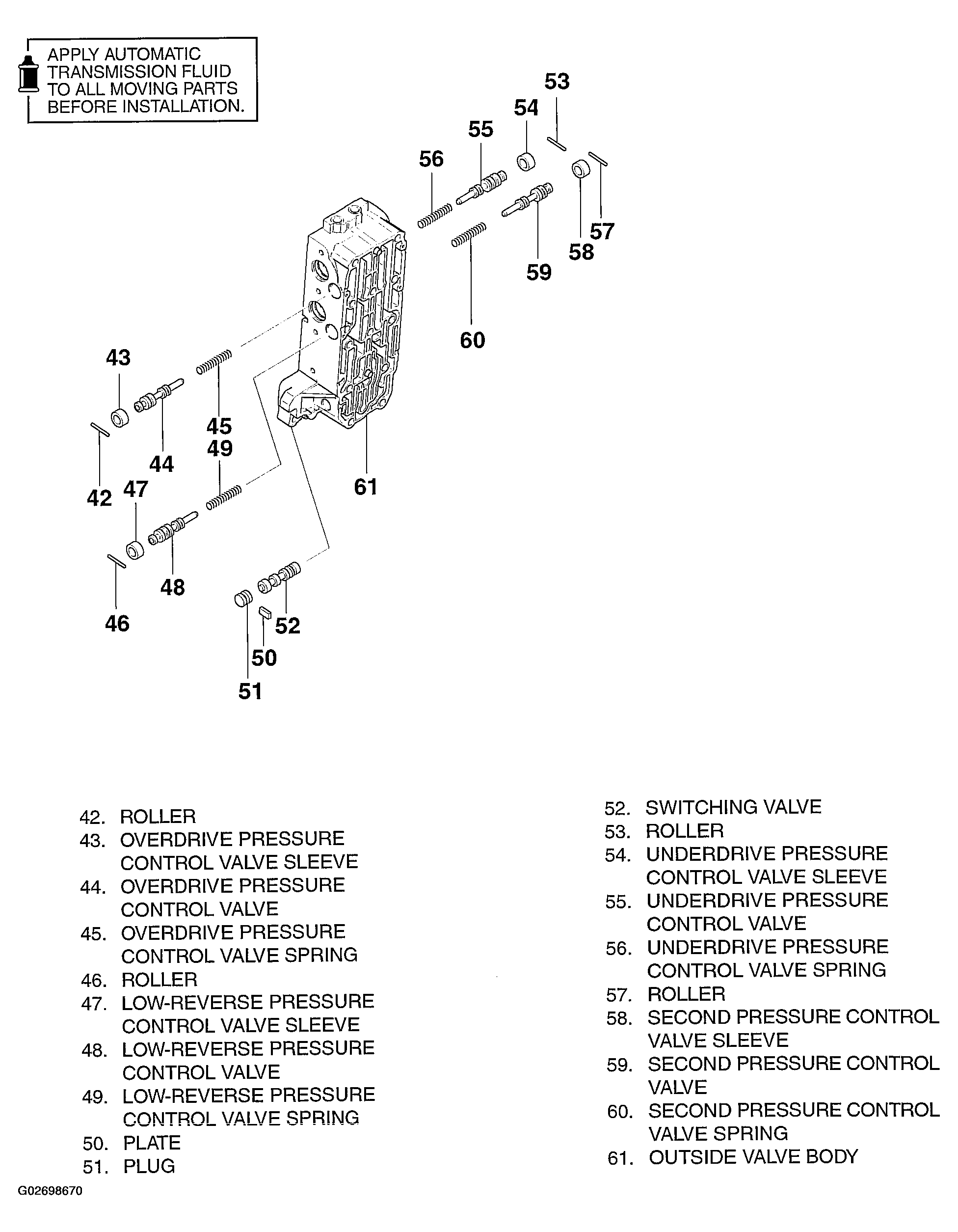

Fig 3: Valve Body Disassembly And Assembly (3 Of 3)
G02698670
